※4 Card Reader Specifications
※5 Compatibility access controller
• HoneyWell NetAXS-123
For the compatibility card, see “IXG-DM7, IXG-DM7-HID (→page 8)”.
■ IXGW-LC
※1 Relay Output 1-20 Specifications
■ IXGW-GW
• If the Internet connection's uplink speed is slow, video may not be displayed properly. (An uplink speed of 16 Mbps
or more is recommended.)
Power requirement 10.80 - 14.50 VDC at 250mA
Interface Wiegand
Output method Form C dry contact (N/O or N/C)
Contact rating 24 VAC, 0.5A (resistive load)
24 VDC, 0.5A (resistive load)
Minimum overload (AC/DC): 100mV, 0.1mA
NO
COM
NC
NO
COM
NC
RY1 RY20

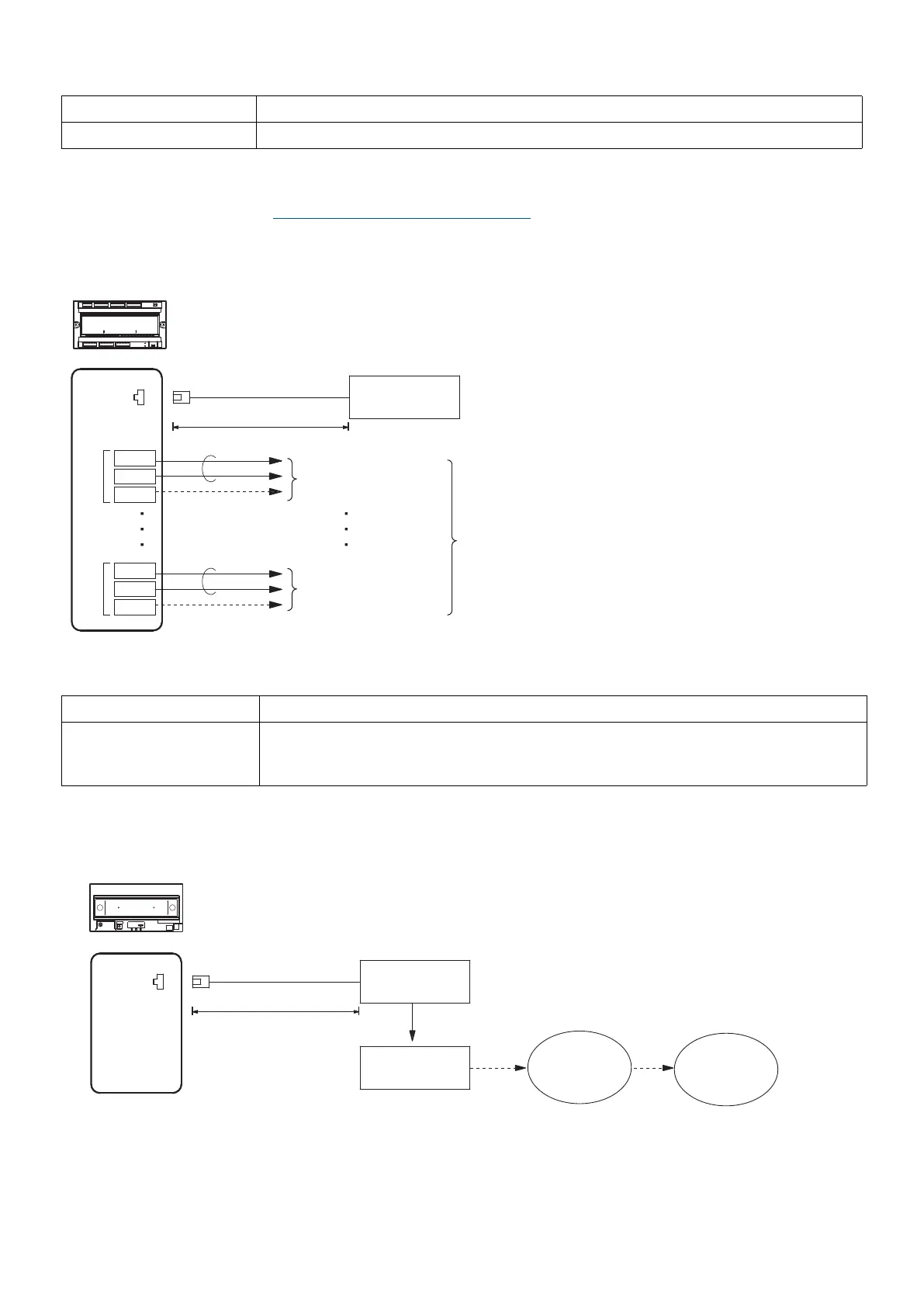

Lift Control Adaptor
IXGW-LC
LAN(PoE)
IEEE802.3 af
Cat-5e/6 straight
100m(330')
Relay Output 1
※1
Relay Output 20
※1
PoE switch
Lift Controller
PE0.65-1.2 (17-22AWG)-2C
PE0.65-1.2 (17-22AWG)-2C
Gateway Adaptor
IXGW-GW
LAN(PoE)
IEEE802.3 af
Cat-5e/6 straight
100m(330')
PoE switch
Router etc.
Internet
Mobile
applications
To Next Page
