Aiphone IXG Series - Ixg-Dm7, Ixg-Dm7-Hid

- 23 -

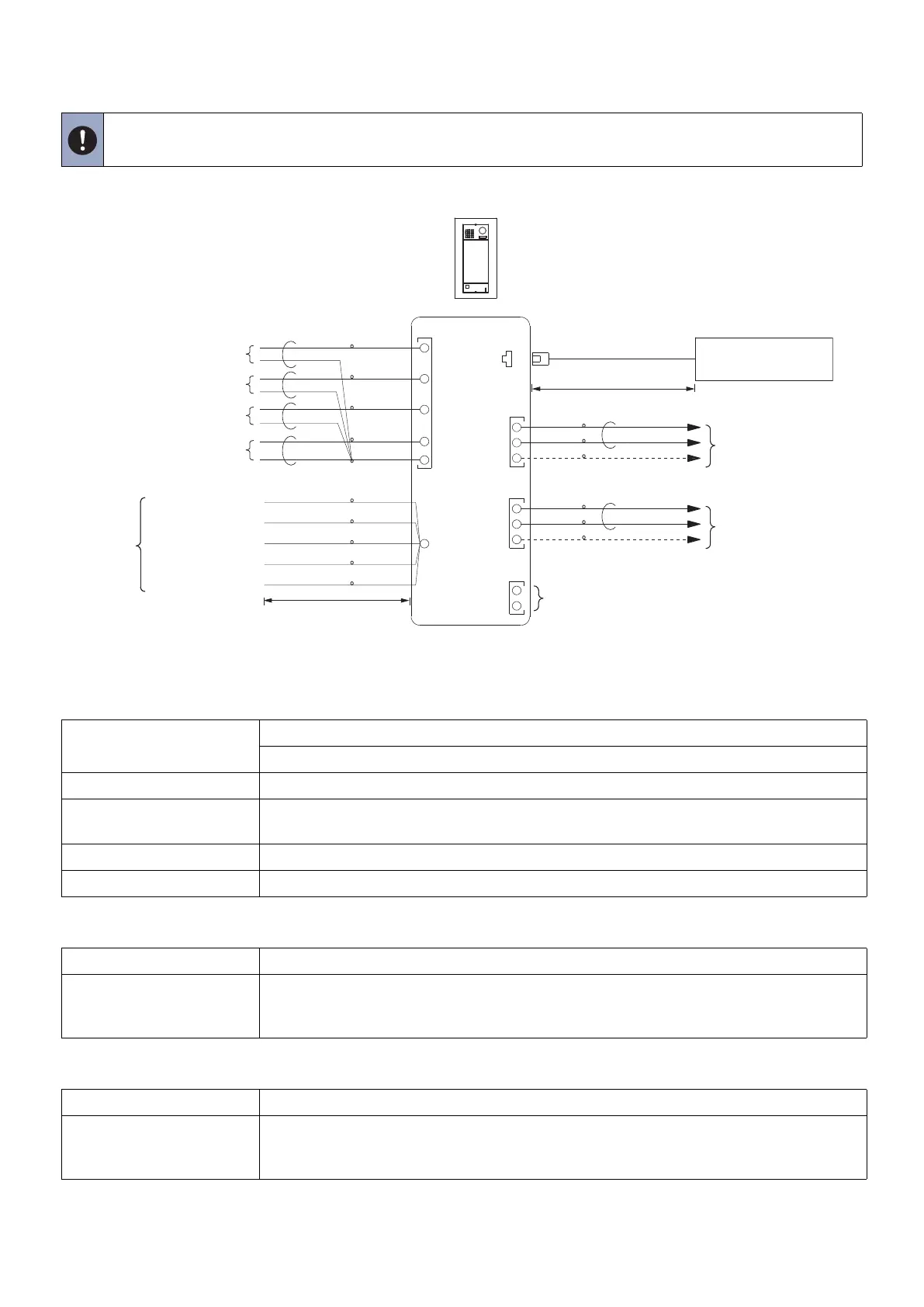

■ IXG-DM7, IXG-DM7-HID
※1 Contact Input Specifications
※2 Relay Output 1 Specifications
※3 Relay Output 2 Specifications
• Insulate and secure unused low-voltage lines and the connector-attached lead wire.
Input method Programmable dry contact (N/O or N/C)
Level detection method
Detection time 200 msec or more
Contact resistance Make: 700 Ω or less
Break: 3 kΩ or more
Terminal short-circuit current 10 mA or less
Voltage between terminals 5.5 VDC or less (between open terminals)
Output method Form C dry contact (N/O or N/C)
Contact rating 24 VAC, 3A (resistive load)
24 VDC, 3A (resistive load)
Minimum overload (AC/DC): 100mV, 100mA
Output method Form C dry contact (N/O or N/C)
Contact rating 24 VAC, 0.5A (resistive load)
24 VDC, 0.5A (resistive load)
Minimum overload (AC/DC): 100mV, 0.1mA
CN3
S1
S4
S2
S3
NO1
COM1
NC1
NO2
COM2
NC2
CN4
P
P
CN6
SE
CN5
Video Entrance Station
Brown
Red
Orange
Brown
Red
Orange
Not used
LAN(PoE)
Contact Input 1
※1
Contact Input 2
※1
Contact Input 3
※1
Contact Input 4
※1
Power
Ground
Output D1
Output D0
LED control signal
Access
Control Unit
(IXG-DM7-
HID only)
※5
Brown
Red
Orange
Yellow
Green
Red
Black
White
Green
Brown
100m (330')
IEEE802.3 af
Cat-5e/6 straight
Relay Output 2
※3
Relay Output 1
※2
PoE switch
IXG-DM7 (-HID)
PE0.65 (22AWG): 61m (200.1')
PE0.8 (20AWG): 91m (301.8')
PE1.2 (18AWG): 153m (502')
※4
