Aiphone IXG Series - Before Using; Part Names

- 8 -
■ IXG-DM7, IXG-DM7-HID
※1 Lights when accepting reboot.
※2 Flashes when the terminal starts up or when accepting ID/password initialization.
※3 Compatibility card
Included accessories
※IXG-DM7 only
Card type High Frequency (13.56MHz) HID iCLASS, SEOS, HID iCLASS SR, HID iCLASS SE, HID
MIFARE Classic, HID Mifare DES Fire EV1
Low Frequency (125kHz) HID Proximity, Indala Proximity
Bluetooth Interface
(2.44GHz)
Mobile phone compatible with Bluetooth Smart (smartphone)
Card format H10301 (26-bit Wiegand Format)
Instlation Manual x 3
(English, French
※
,
Japanese
※
)
Product warranty
※
x 1
(for Japanese market)
Download guide x 1
Chinese RoHS declaration
※
x 1
Option connectors x 3
(3pin x 2, 5pin x 1)
Special screwdriver x 1 Mounting-bracket screws x 4 Mounting bracket x 1

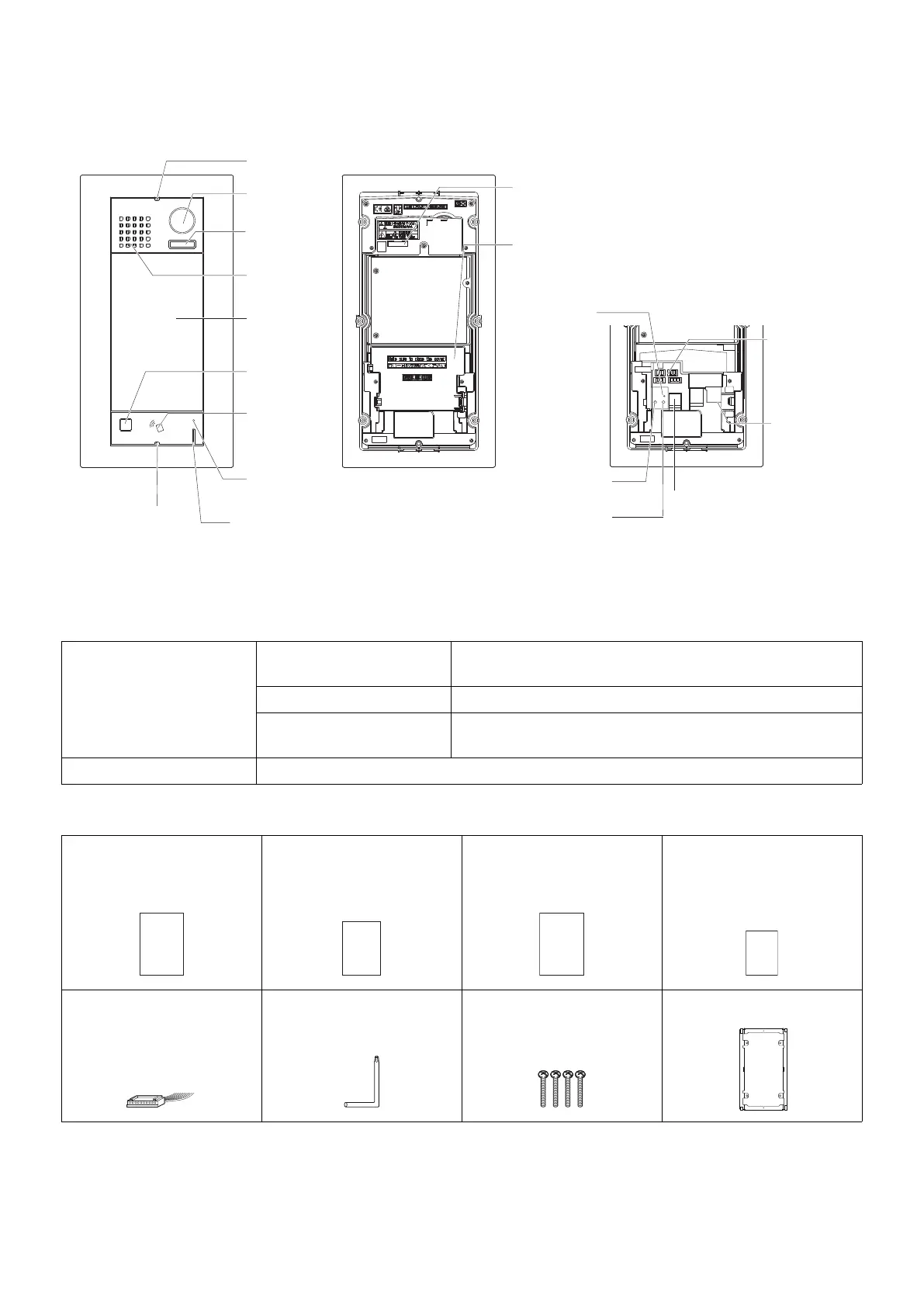

Front view
Special screw
Camera
LED for night
illumination
※1※2
LCD
Touchscreen
Sensor
Card reader indicator (Red/Green)
(IXG-DM7-HID only)
Special screw
Back view
Terminal cover
Speaker
MAC address
Microphone
Card reader
(IXG-DM7-
HID only)
※3
Connectors
LAN (PoE)
port
micro SD
TM
card slot
SW1 Reset button
SW2 micro SD
TM
card eject button
micro SD
TM
card indicator
(Red)
Under the Terminal cover
