- 17 -
■ IXGW-GW
1
3
2
4

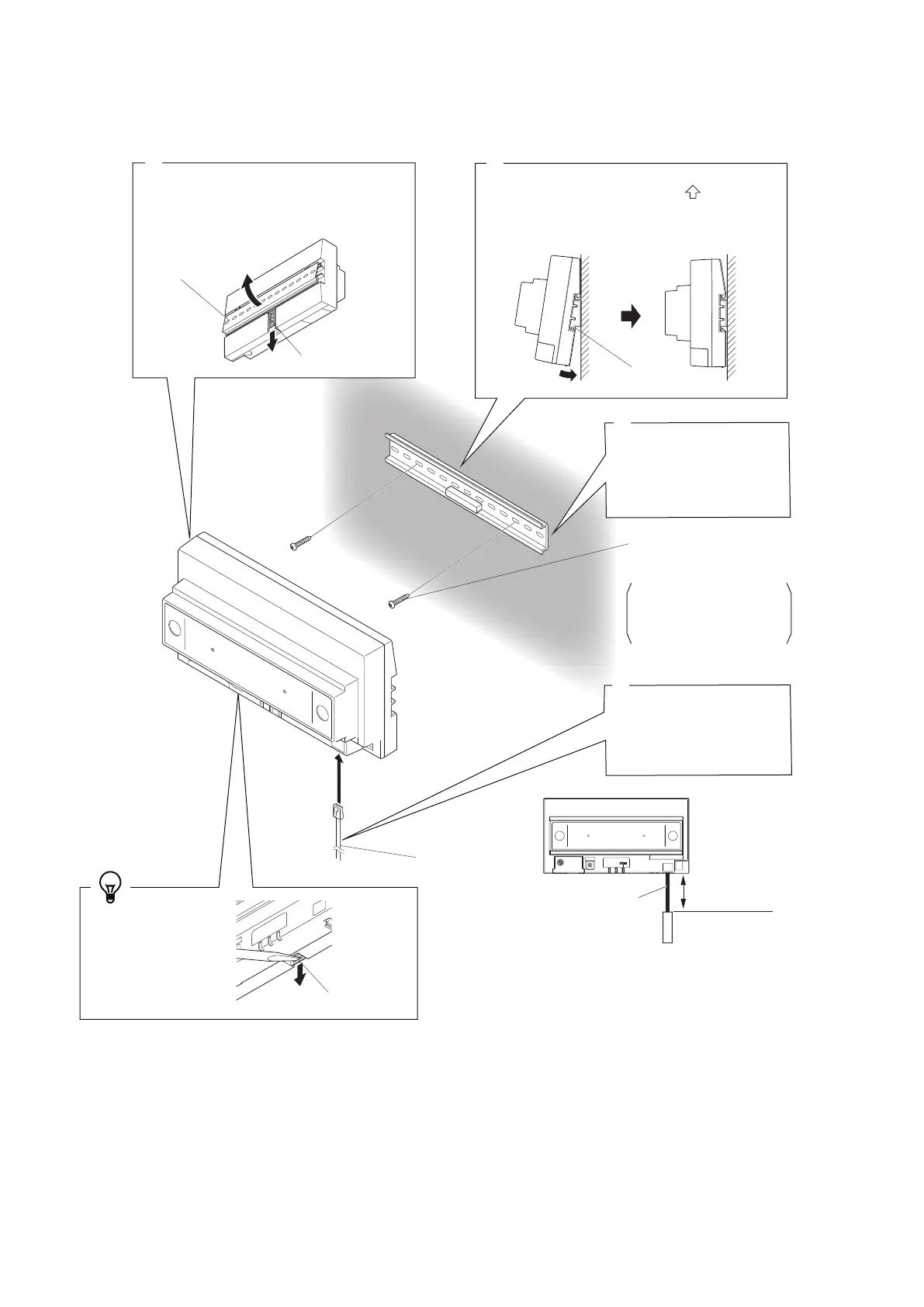

Pull the lock release lever down to
remove the DIN rail from the adaptor.
DIN rail
Lock release lever
Attach the DIN rail to the
wall.
Position the adaptor with "UP " facing up,
and mount the adaptor on the DIN rail and
then click the adaptor into place.
Insert the Cat-5e/6 cable
to the adaptor.
DIN rail
Cat-5e/6 cable
When removing
the adaptor, pull
the lock release
lever down.
Lock release lever
Wall-mounting wood screws x 2
(not included)
Screw shaft: φ4.1 or less
Slotted head: φ8.2 or less,
3.0mm or less in height.
Wire mold
80mm (3-1/8'') or less
Use a covering duct for Cat-
5e/6 cable and leave a
space (exposed portion) of
no more than 80mm (3-1/8'')
between the adaptor and the
covering duct.
To Next Page
