• If the connector-attached lead wire is too short, extend the lead with an intermediate connection.
• As the connector has polarity, perform the connection correctly. If the polarity is incorrect, the device will not operate.
• When using the crimp sleeve method, if the end of the connector-attached lead wire has been soldered, first cut off the
soldered part and then perform crimp.
• After completing connection of wires, check that there are no breaks or inadequate connections. When
connecting low-voltage lines in particular, perform the connection using either soldering or the crimp sleeve
method and then insulate the connection with electrical tape. For optimal performance, keep the number of
wiring connections to a minimum.

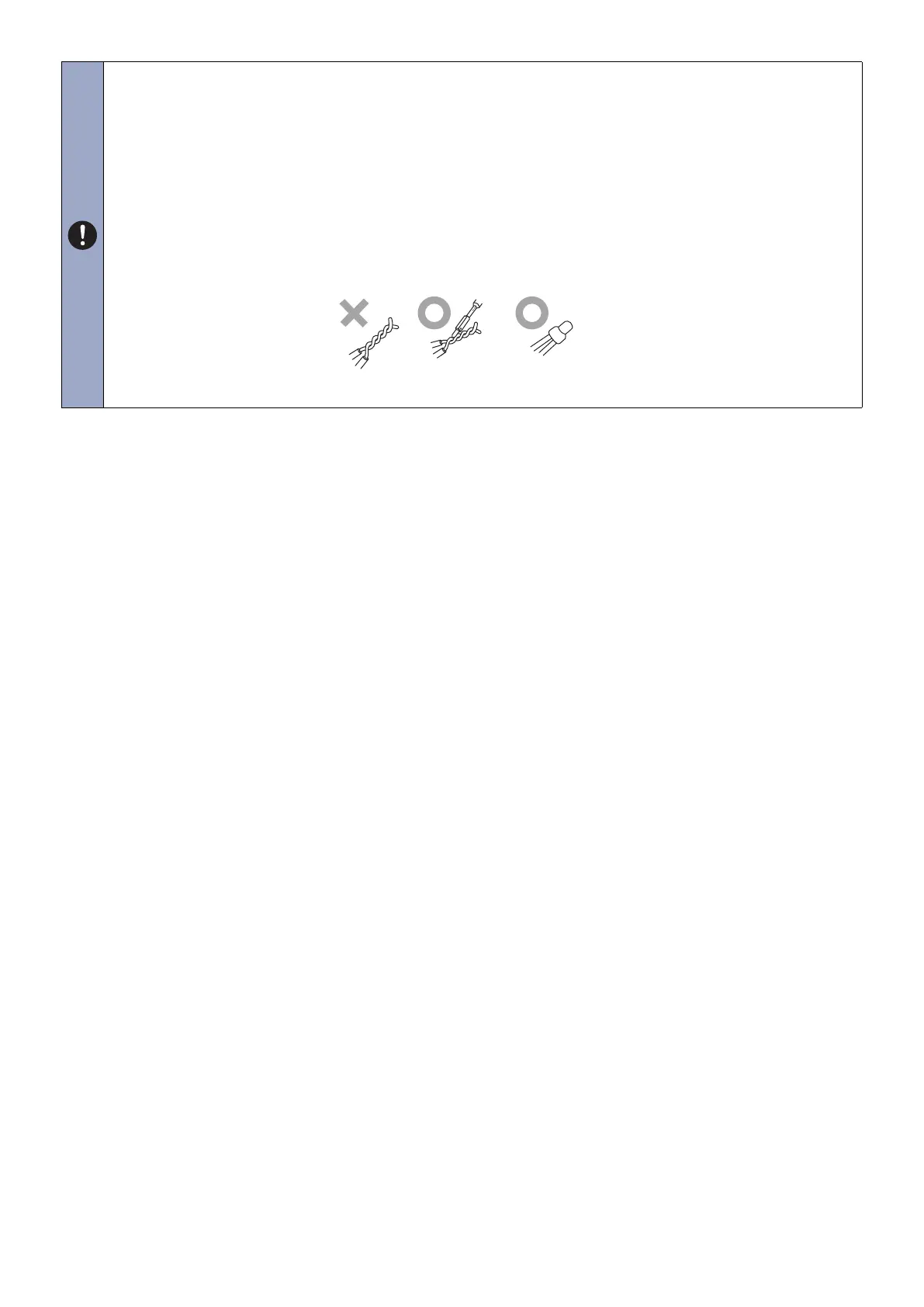

Simply twisting low-voltage lines together will create poor contact or will lead to oxidization of the surface of the low-
voltage lines over long-term use, causing poor contact and resulting in the device malfunctioning or failure.
Soldering method
Crimp sleeve method
