5.3 Information Screen
The information screen gives alarm information from the
Performance Alert module located in the condensing unit
electrical enclosure. The Performance Alert module will flash
a yellow light to indicate certain alarms (for example: the light
will flash twice for a system trip alarm)
• MAIN SCREEN: Navigates to the main screen
• INFO SCREEN: Navigates to the info screen
• ALARM SCREEN: Navigates to the alarm status screen
• ALARM LOG: Navigates to the alarm log screen
5.2 Status Screen
The status screen shows the user the compressor hours of
operation, fan hours of operation, total hours of operation,
and total savings hours.
• MAIN SCREEN: Navigates to the main screen
• INFO SCREEN: Navigates to the info screen
• ALARM SCREEN: Navigates to the alarm status screen
• ALARM LOG: Navigates to the alarm log screen

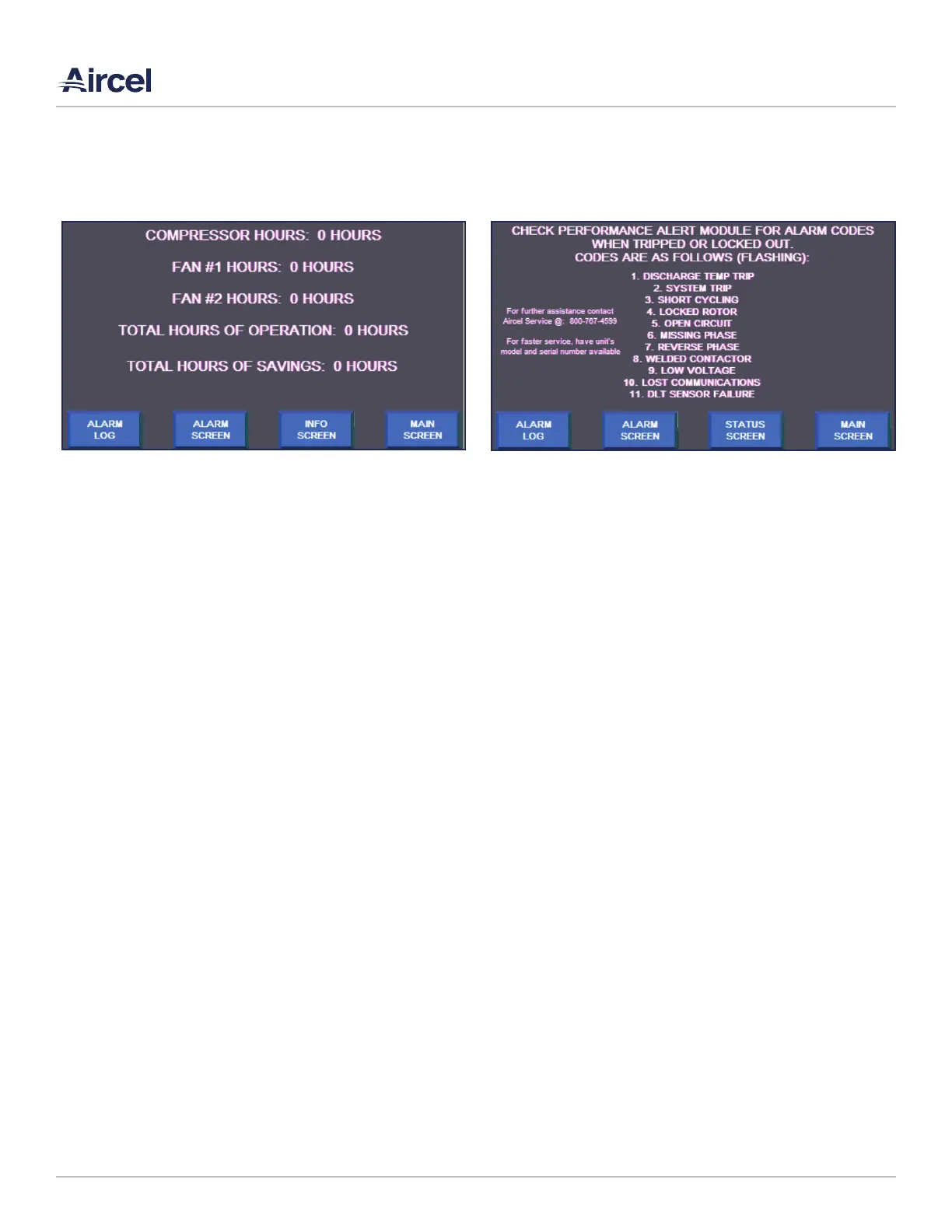

FIGURE 5-2: Status Screen FIGURE 5-3: Information Screen
