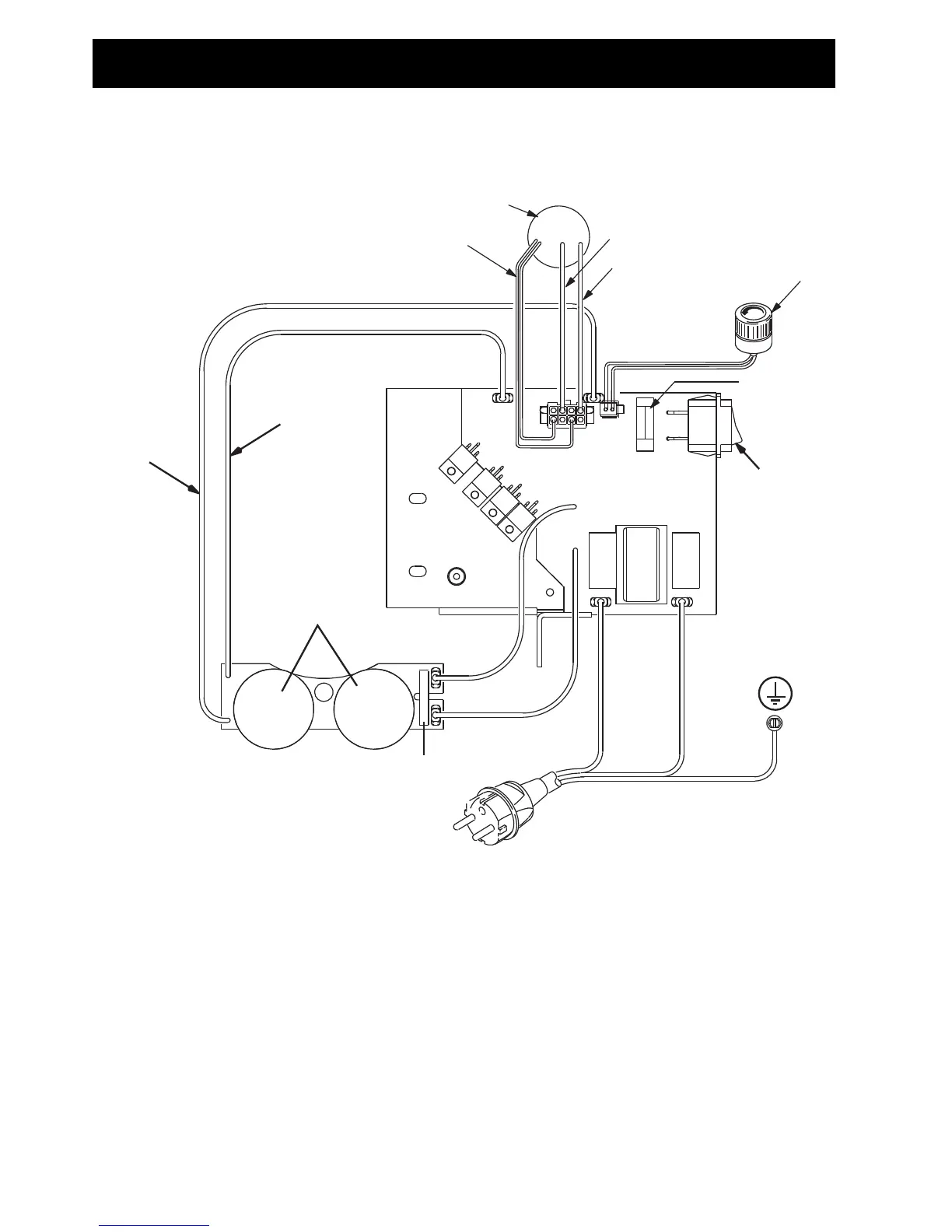

AIRLESSCO MP 455 - 230 V

Wiring Diagrams
40 3A4180C
230V
ti22267b
From Motor
Replaceable
Fuse
2X Yellow
Red (+)
Red (H)
Brown
Blue
Green
Black (-)
Pressure Control
Assembly
ON/OFF
switch
Red (D)
Black (E)
Red MOV
Capacitors
Power Plug
Black (F)
