Control Box SL1250 / Mustang 11500 /
3A4147B 45

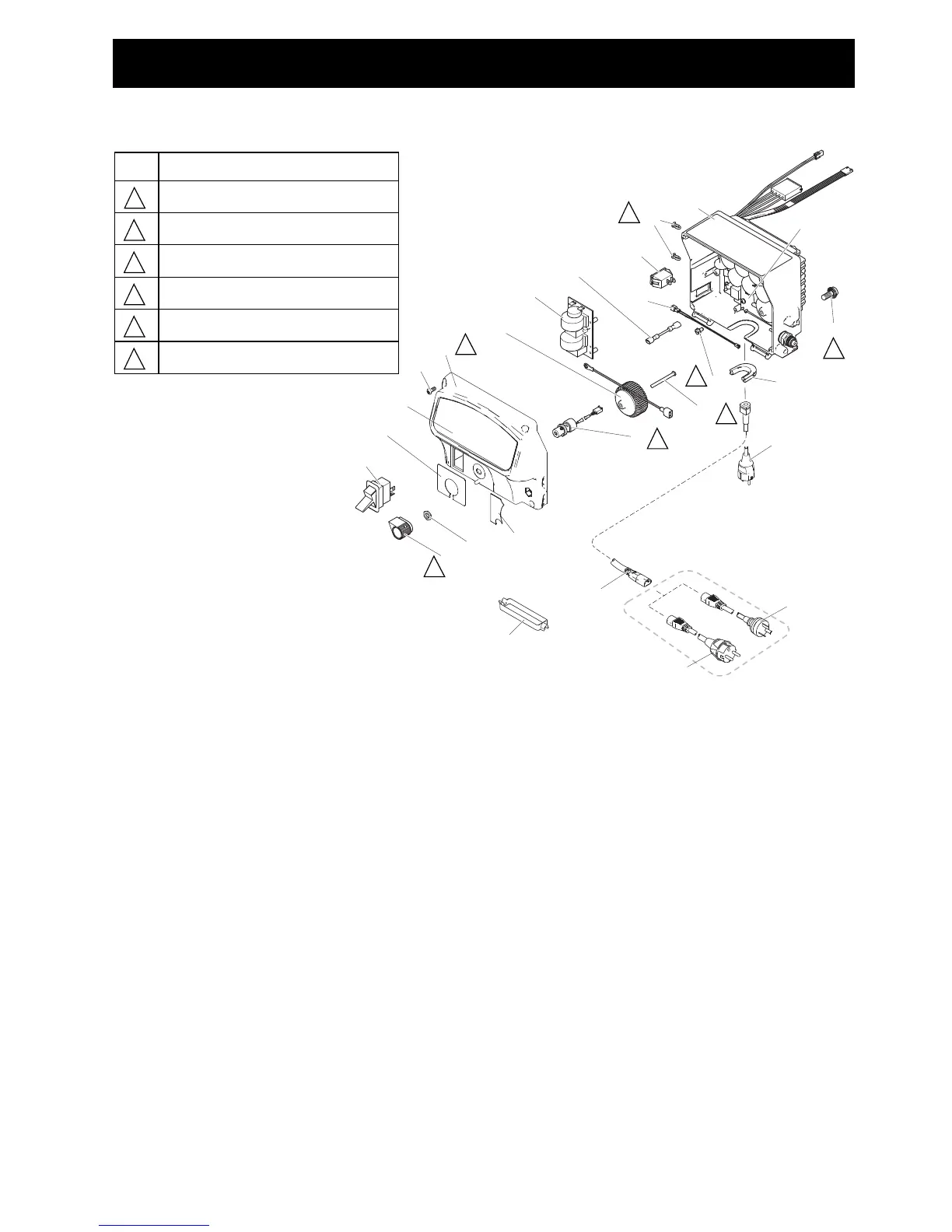

Control Box SL1250 / Mustang 11500 / TS1750
33
34
115
177
68
65
96
38
82
150
147
26
23
52
142
143
131
59
144
60
131
ti29686a
148
75 ref
75b
137
75
75d
Ref. Torque
10-15 in-lb (1.1 - 1.7 N•m)
40-45 in-lb (4.5 - 5.0 N•m)
9-11 in-lb (1.0 - 1.2 N•m)
200-230 in-lb (22.6 - 25.9 N•m)
30-35 in-lb (3.3 - 3.9 N•m)
15-20 in-lb (1.7 - 2.2 N•m)
1
2
3
4
5
6
1
2
5
6
4
2
3
Ref. Part Description Qty
23 117791 SCREW, cap, flange head
2
26 114391 SCREW, grounding
1
33 15C979 SWITCH, rocker, 120V
1
15D527 SWITCH, rocker, 230V
1
34 116167 KNOB, potentiometer
1
38 16V095 SCREW, #10, taptite phil
4
52 CONTROL, board, includes
23, 26, 60, 131, 142, 144
1
24P847 120V models
24P848 240V models
59
16T784 LABEL, warning, 120V NA
1
16Y762 LABEL, warning,240V AP/SCA
60 16T541 JUMPER WIRE (TS1750)
(120V)
1
65 17M689 LABEL, control box cover
1
68 17A445 LABEL, control
1
75 CORD, power
1
17J160 120V NA (SL1250, 11500)
15D529 240V AP/SCA (SL1250)
(TS1750)
15H065 120V (TS1750)
1
75b 242005 China / Australia (SL1250)
75d 242001 EU CEE 7/7 (SL1250)
82 256219 POTENTIOMETER, assembly
1
96 17A517 COVER, control, includes 38,
68, 177
1
115 15C973 GASKET
1
131 SCREW/PLUG
2
16T482 120V NA
119228 240V AP/SCA
137 195551 RETAINER, plug adapter
1
142 16T483 PLUG
1
120059 SWITCH, rocker (TS1750 NA)
1
143 15G935 120V (TS1750)
1
144 STRAIN RELIEF
1
16T547 120V NA (SL1250, 11500)
16T546 240V AP/SCA (SL1250)
(TS1750)
116171 120V (TS1750)
147 24V030 KIT, repair, coil, includes 150
(120V NA)
1
148 24R598 BOARD, filter (240V AP/SCA)
1
150 16U215 SCREW, machine, flat head
1
177 17A448 LABEL, blank, elec, std
1
 Extra Danger and Warning tags and labels
available at no cost.
Ref. Part Description Qty
