AIRLESSCO TS1750 - Component Identification; Standard Models (SL1250 & TS1750)

Component Identification
3A4147B 9
Component Identification

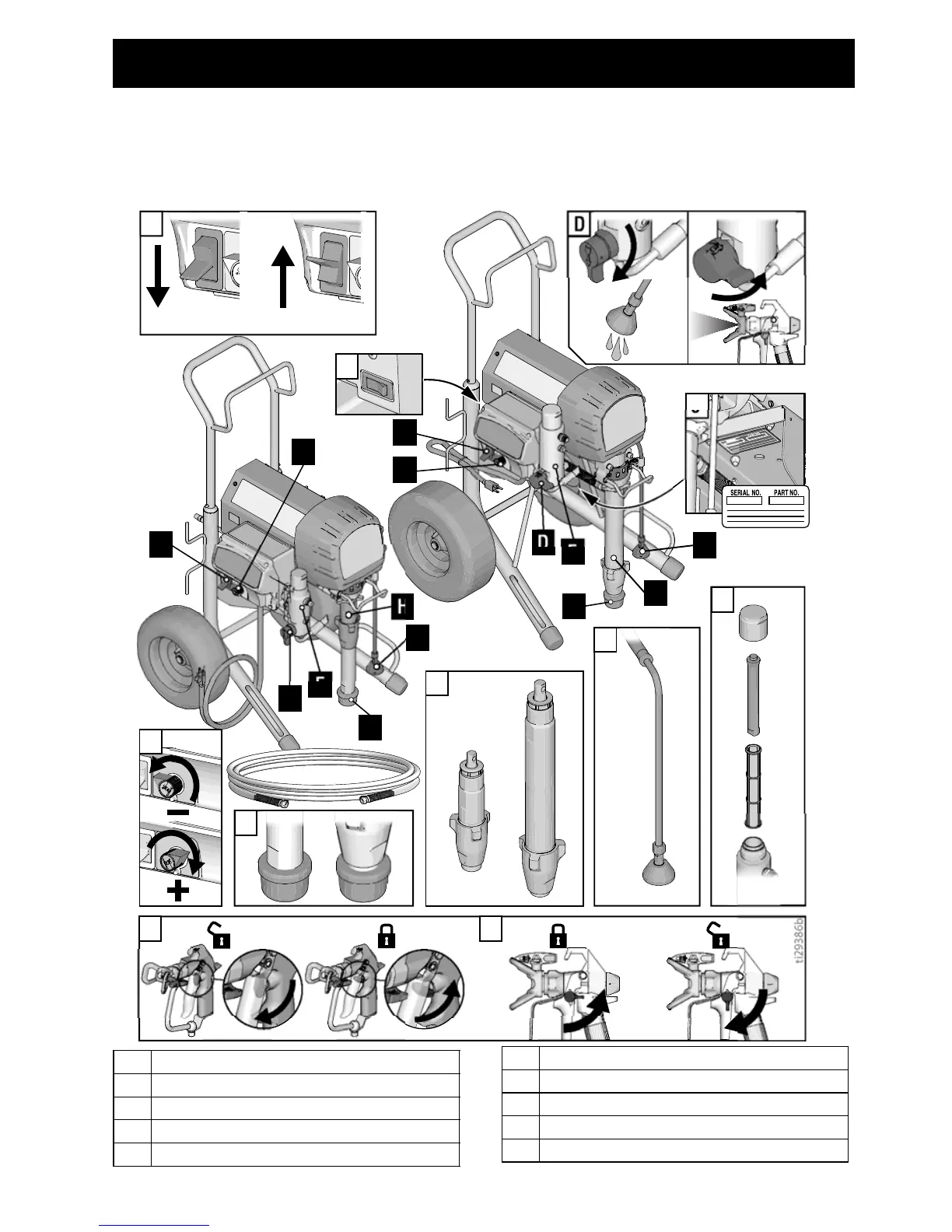

Standard Models (SL1250 & TS1750)
OFF ON
A
B
D
J
I
I
H
G
E E
C
C
I
H
H
C
B
B
F
D
G
G
F
F
D
ti29386b
A AMP Switch (not available on all units)
B ON/OFF Switch
C Pressure Control
D Prime / Spray Valve
E Trigger Lock
FFilter
G Strainer
HPump
I Drain Tube
J Model/Serial Tag
