AirLive IP-200PHD-24 - Event Schedule Setup

4. Monitor the Image Section

AirLive IP-200PHD-24/IP-200PHD-24B
User’s Manual
60
SAMBA Login name:
Type the user name for the SAMBA server.
SAMBA Login Password:
Type the password for the SAMBA server.
SAMBA Path:
Set working directory path of SAMBA server.

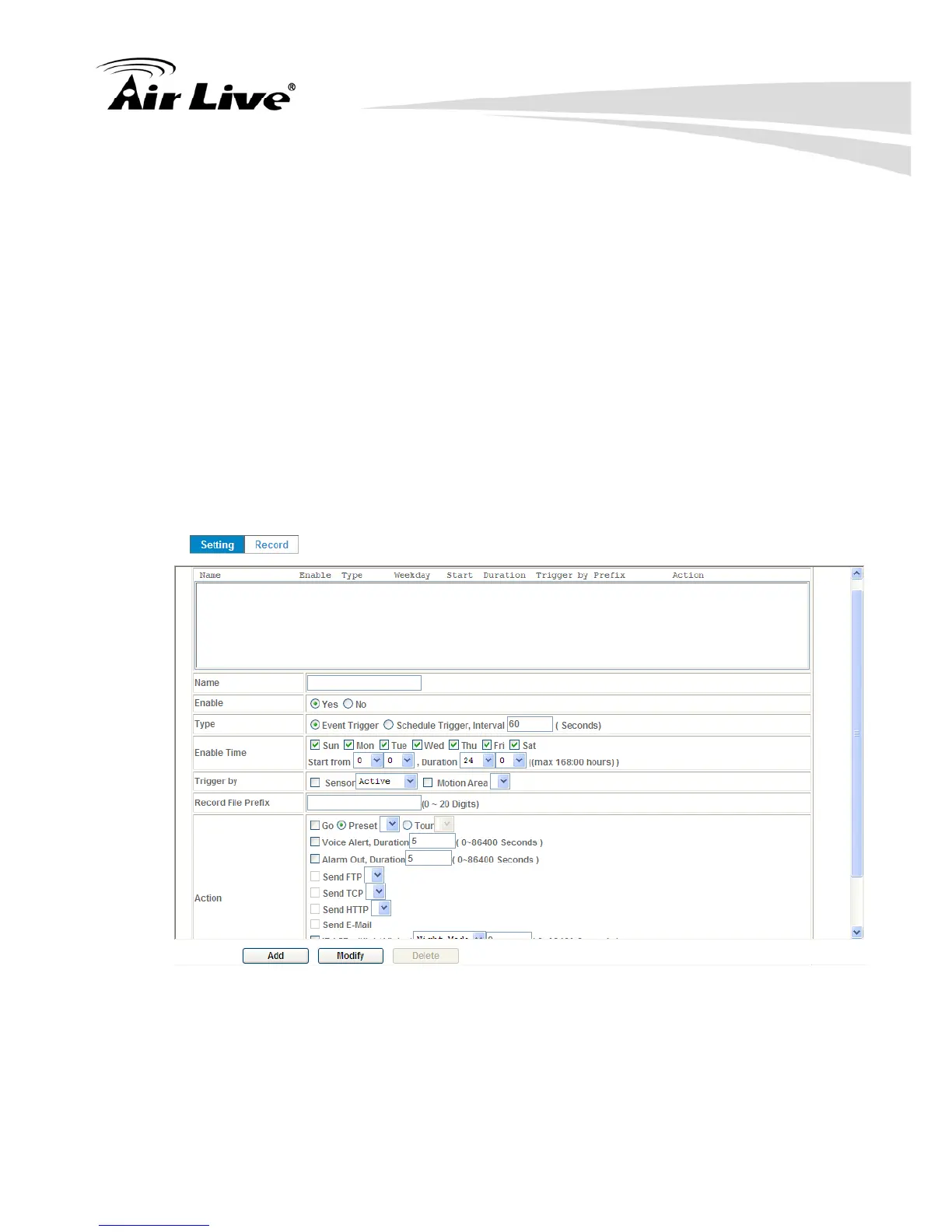

4.6.8 Event Schedule
This menu is used to specify the schedule of Event or Schedule Trigger and
activate the some actions provided by this device. Where the Schedule Trigger
will be activated by user-define interval without event happened.
Name:
Name of the Event or Schedule.
Enable:
Enable or disable this Event or Schedule.
