Airstream Flying Cloud 2020 - Page 100

Maintenance
8-32 2020 Flying Cloud
• Circuit 7 - 15 Amp - Inverter, Front and Rear TV’s,
Blu-Ray, Dinette, Bedroom Receptacles
• Circuit 6 - 15 Amp - Converter
• Circuit 5 - 15 Amp - Microwave Receptacle
• Circuit 4 - 20 Amp - Bedroom A/C
• Main - 50 Amp
• Main - 50 Amp
• Circuit 1 - 15 Amp - Water Heater
• Circuit 2 - 20 Amp - Front A/C
• Circuit 3 - Outside, Galley, Refrigerator, Bath
Receptacles
Breaker label content may vary.

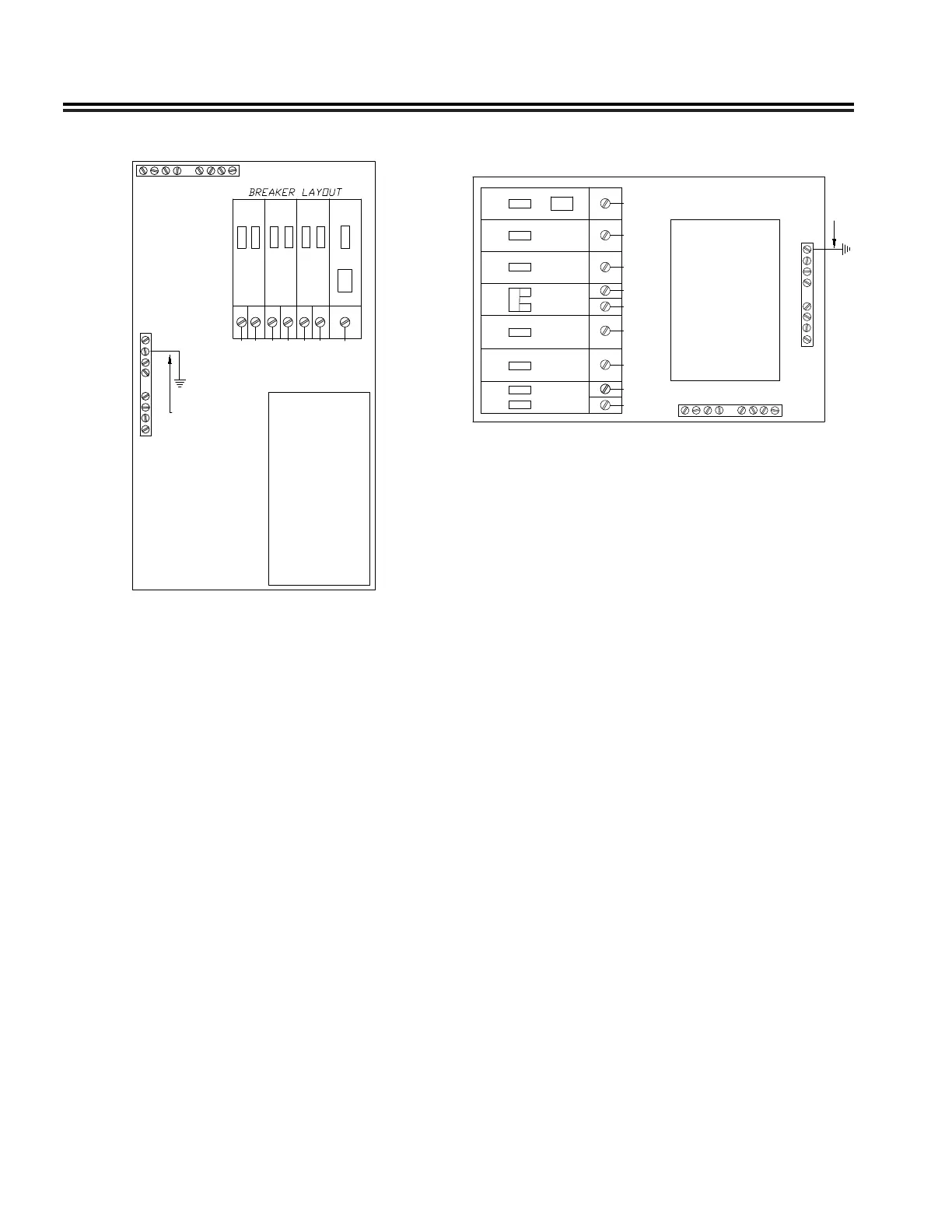

Standard 50 Amp Circuit Breaker LayoutStandard 30 Amp Circuit Breaker Layout
PLACE BREAKER
LABEL HERE
15
CIR.#2
CIR.#3
MAIN
NEUTRAL BUSS
GROUND BUSS
8GA BARE
COPPER
CIR.#1
20
15
30 15 15
CIR.#4
CIR.#5
15
TEST
GFCI
CIR.#6
CIR. 4
20 50
MAIN
NEUTRAL BUSS
GROUND BUSS
8GA BARE
COPPER
CIR. 1
15
50
AC BREAKER I.D.
LABEL
MAIN
50
50
20
CIR. 2
15
CIR. 5
INSET 'A'
15
CIR. 3
TEST
GFCI
15
CIR. 6
CIR. 7
15
• Circuit 6 - 15 Amp - Galley, Outside, Bath, Bedroom,
Refrigerator Receptacles
• Circuit 5 - 15 Amp - Water Heater
• Circuit 4 - 15 Amp - Inverter, Dinette, TV, Blu-Ray
Receptacles
• Circuit 3 - 15 Amp - Microwave Receptacle
• Circuit 2 - 15 Amp - Converter
• Circuit 1 - 20 Amp - A/C
• Main - 30 Amp
Breaker label content may vary.
