Maintenance
8-12 2020 Flying Cloud
The 23 ft. Front Bed model has a fresh water tank
drain, a white petcock, under the trailer on the tank pan
in front of the roadside tires. It also has two water line
low-point drain valves located inside the pantry cabinet
behind the removable lower face panel. The panel is
held on by two pressure catches and can be removed
by pulling straight out on the panel.
The 25 ft. Rear Bed model has two exterior water line
low-point drain valves, brass petcocks, extending from
the bottom of the exterior fresh water tank pan under
the trailer on the curbside between the tires.
The 26 ft. model has drain valves directly on the fresh
water tank and are accessed from under the unit
The 25 and 27 ft. Front Bed, and 28 ft. models have
two exterior water line low-point drain valves, brass
petcocks, extending from the bottom of the exterior
fresh water tank pan. A separate white plastic petcock,
located on the same pan, is to drain the water tank.
The 30 ft. model has two low-point drain valves
accessed by removing the rear dinette seat cushion
and reaching through the hole cut in the seat bottom. It
has the fresh water tank drain, a white petcock, on the
exterior tank pan under the trailer.
Fresh Water Tank Draining
Pumping the water out with the self-contained water
pump can empty the fresh water tank. Simply turn on
the pump switch and open a couple of faucets until
the water will no longer drain out, or on all models use
the petcock-type drain valve located on the freshwater
tank pan described above. Be sure to watch closely
and turn the pump off when the tank runs dry. Pump
damage can occur if the pump runs dry for more than a
few minutes.
Water Heater Draining
All models have a drain plug or petcock on the water
heater. Access is from the exterior. The plug or valve is
usually located in the lower-left corner, viewed as you
face the exterior of the water heater.

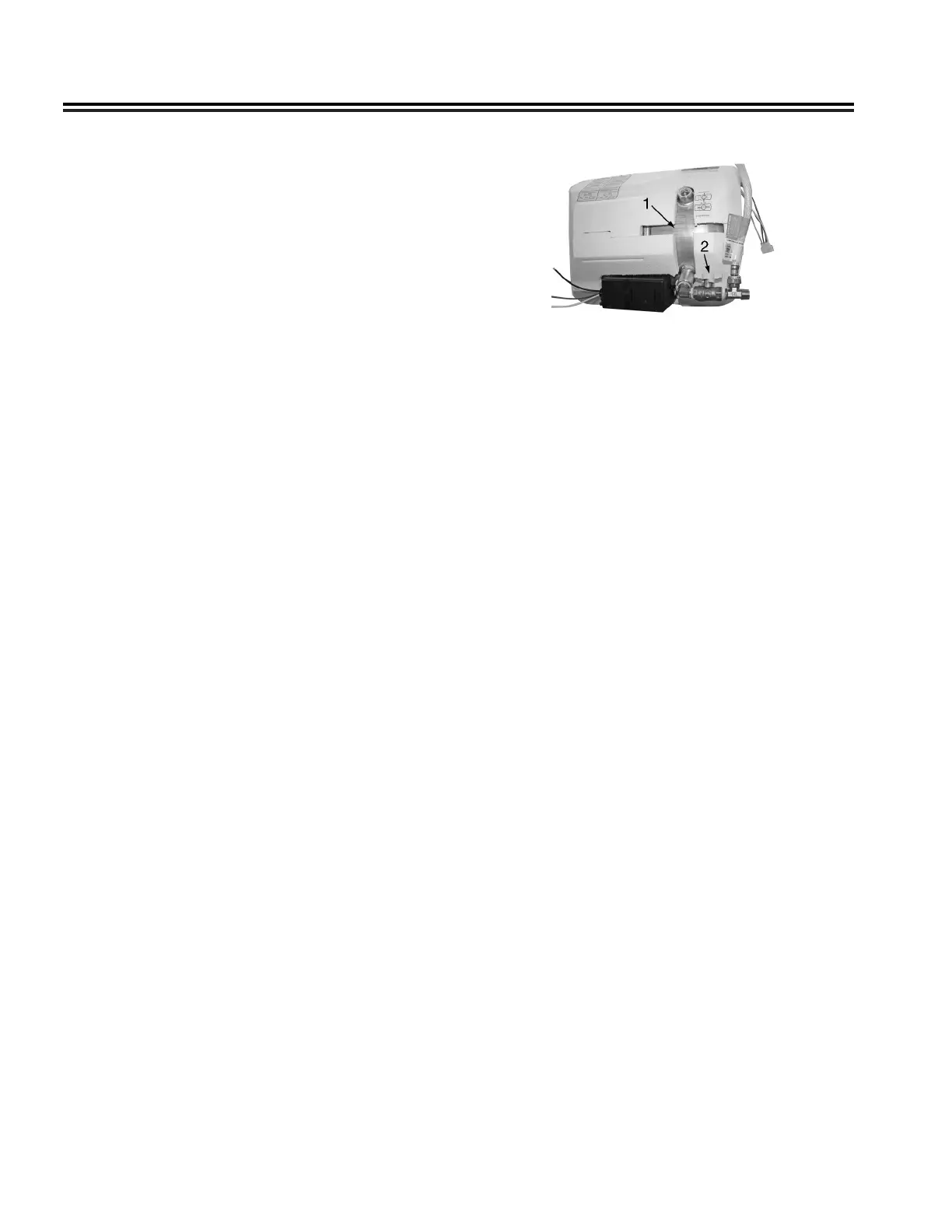

Water Heater Bypass Valve
1� Water Heater
2� Bypass Valve
If valve is in-line with water line, turn bypass valve
clockwise to close.
Water Heater Bypass Valve Locations
23 ft. CB - under the corner bed, accessible from holes
in the bed top under the mattress.
23 ft. Front Bed - inside the removable bedroom
wardrobe cabinet lower face panel. The panel is held
on by two pressure catches and can be removed by
pulling straight out on the panel.
25 ft. Rear Bed- Queen model is behind the removable
bedroom wardrobe cabinet lower face panel.
Twin Bed - through the lower panel at the foot of the
curbside bed. There is a panel removable by taking out
4 Phillips head screws.
25 ft. Front Bed - through the curbside front exterior
access door.
26 ft. - under the removable oor panel in the bedroom
wardrobe.
27 ft. Front Bed - under bathroom lavatory. Open the
lavatory cabinet door to access a drop-down door.
Open the drop-down door to access the valves on the
water heater�
28 ft. - under the front lounge on the roadside. An
access hole is provided in the lounge top.
30 ft. - through a hole cut in the rear of the dinette seat.
30 ft. Bunk - under the corner bed, accessible from
holes in the bed top under the mattress.
