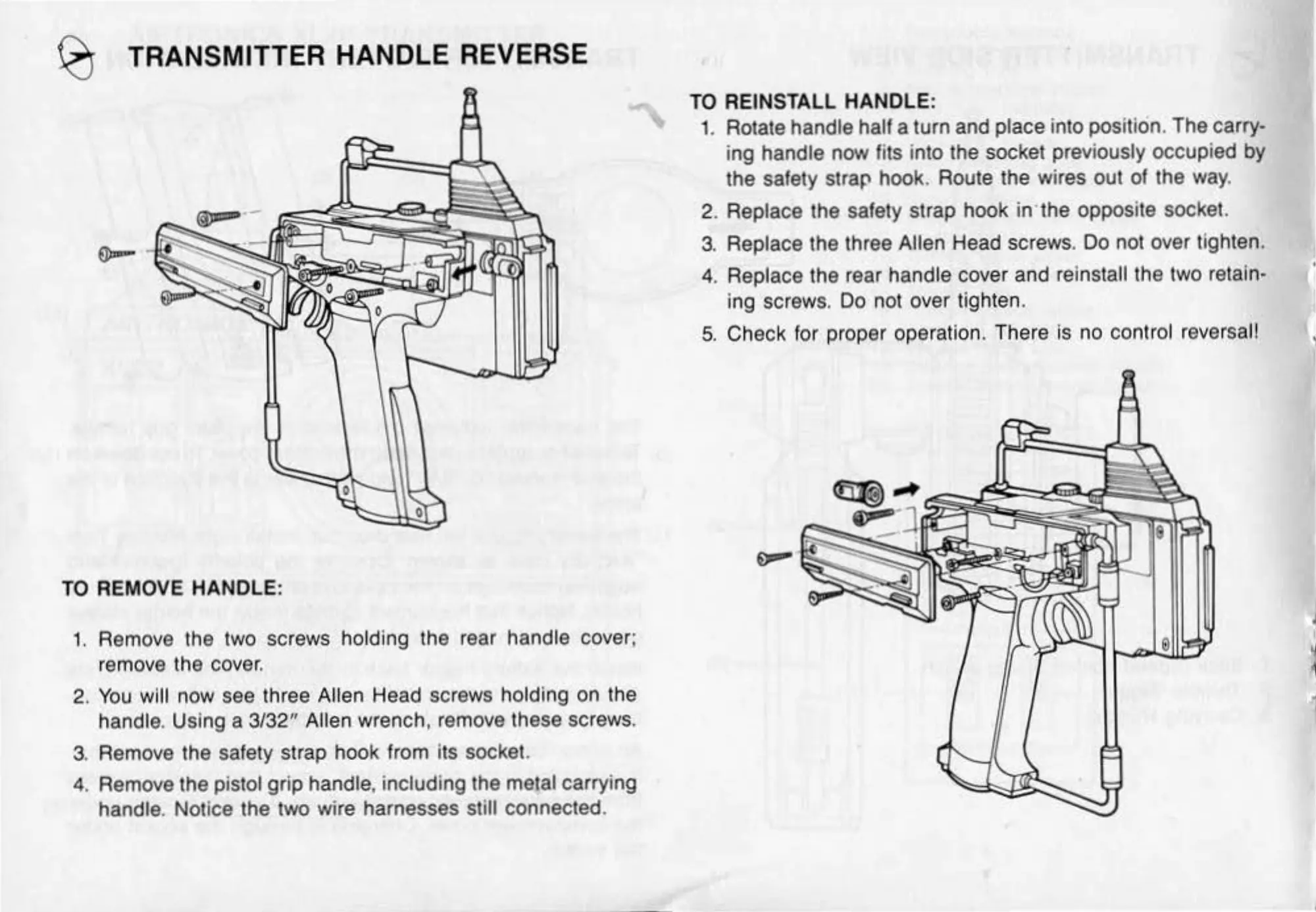

TRANSMITTER HANDLE REVERSE
TO
REMOVE HANDLE:
1. Remove the
two
screws holding the rear handle cover;
remove the cover.
2.
Yo
u will now see three Allen Head scr
ews
holding on t
he
handl
e.
Using a 3/32" Allen wrench, remove these scr
ews.
3. Remove the safety strap hook from its socket.
4.
Remove the pistol grip handle, includi
ng
the metal carrying
handle. Notice the two wire harnesses still connected.
TO
REINSTALL HANDLE:
1. Rotate handle half a turn and place into position. The carry-
ing handle now fits into the socket previously occupied by
the safety
strar
hook. Route the wires out of the way.
2.
Replace the safety strap hook in·the opposite socket.
3. Replace the three
Allen Head screws. Do not over tighten.
4.
Replace the rear handle cover and
re
install the two
re
tain-
ing screws.
Do
not over tighten.
5.
Check for proper operation. There is no control reversa
l!
)
j
