10

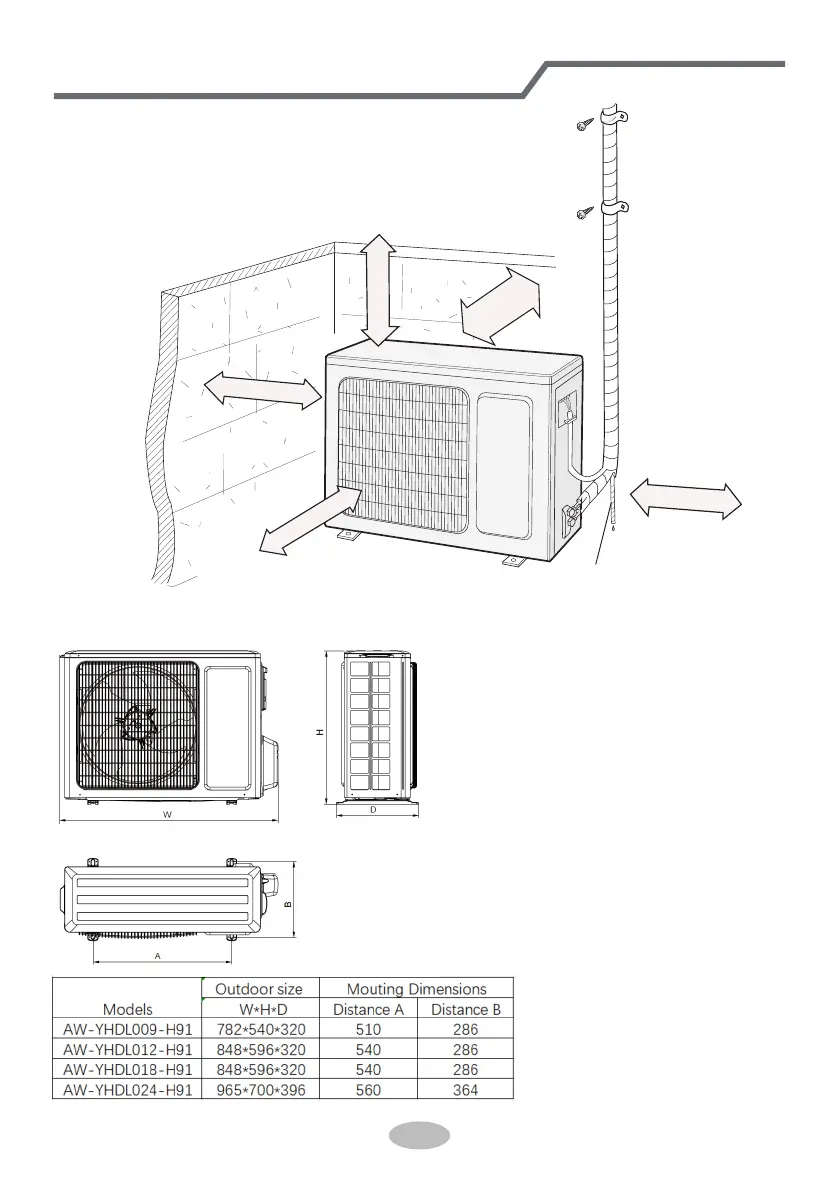

Installation dimension diagram
At least 50cm
At least 50cm
At least
30cm
At least 200cm
Space to the obstruction
Space to the
obstruction
Space to the
obstruction
Space to the obstruction
At least 30cm
Space to the wall
Drainage pipe
Outdoor unit dimension (mm):
