CHARACTERISTICS OF SENSOR
Service Manual – YBZE DCI 1-A.1 GB 14-1

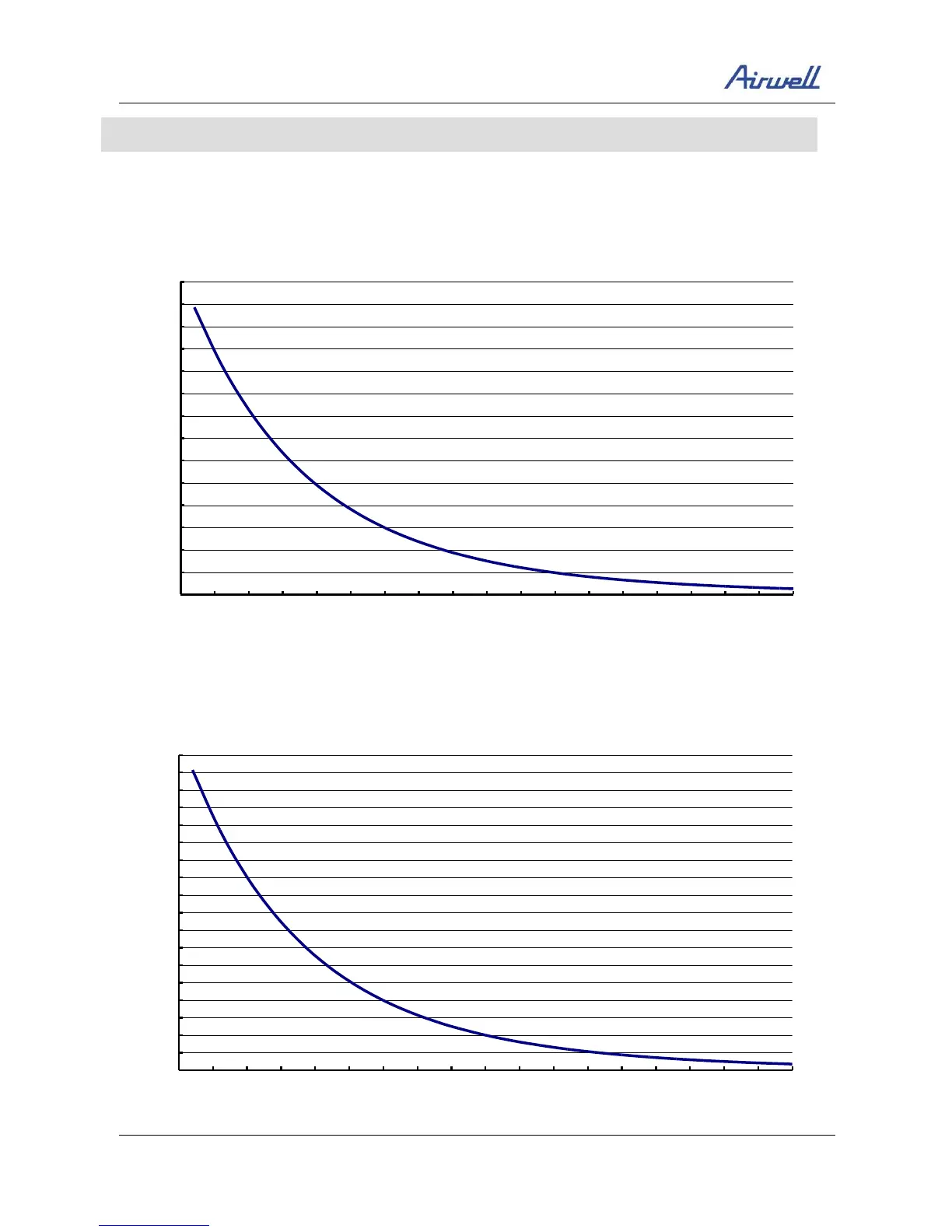

14. CHARACTERISTICS OF SENSOR
14.1.1 RAT/OAT
RAT/OAT R-T chart
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
-20 -15 -10 -5 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70
Temperature(C)
Resistance(Kohm)
14.1.2 ICT/OCT/RGT/RLT
ICT/OCT R-T Chart
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
-20 -15 -10 -5 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70
Temperature(C)
Resistance(Kohm)
