A-MIP 210 V1.06
Electrical Installation
Power supply unit
It must be outside the Aivia, never install it into the
Aivia.
• The power supply unit is made up from:
• 10A/30mA Circuit breaker.
• 24VDC/75W CLASS I (TT Earthing System) Power
supply*.
• The power supply must be limited in output power.
• Its mains wiring must contain Live, Neutral, and Earth/
Ground.
• Full load voltage drop on the secondary must not
exceed 2%, in that case 23,5V at the Aivia connector
block.
• Power supply unit parts must be protected against
water, dust, and ventilated**.
• Wiring of the power supply unit must comply by
existing regulations in the country of installation.
* Recommended power supply: PYRESCOM C_AL/DR75-24.
** Natural or forced convection depending on the environnment and
thermal characteristics at maximum load.
.

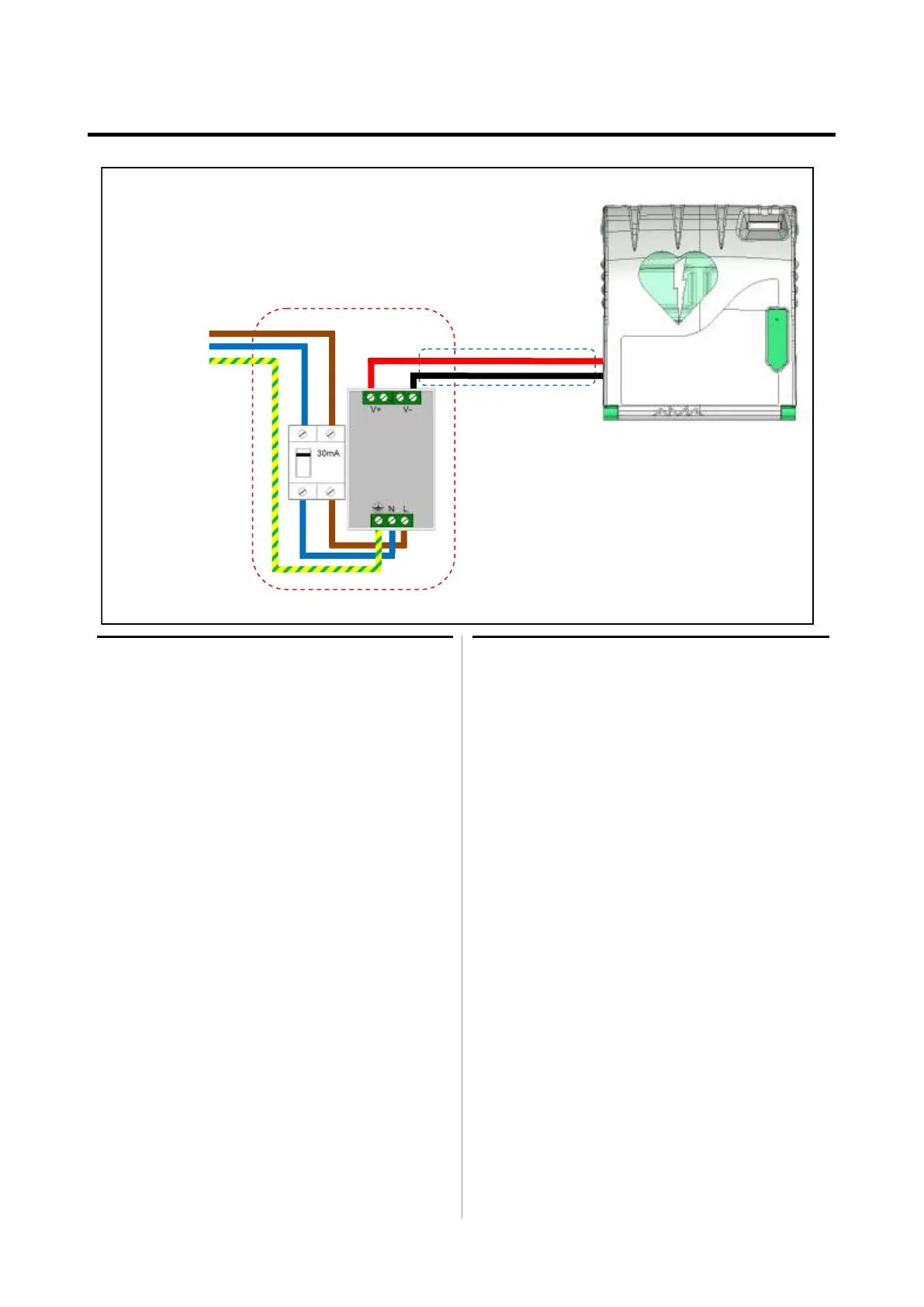

Mains grid
230 VAC/50Hz
Power supply unit
Power supply
24VDC/75W
CLASS I
SELV Wiring
SELV Wiring :
• U1000R2V Type. 2 Isolated and gained conductors,
1,5mm² gauge, 10 meters maximum length.
• For the 24V wiring use a red or brown cable.
• For the 0V wiring use a black or grey cable.
www.aivia.eu/doc/A-DPM.html
