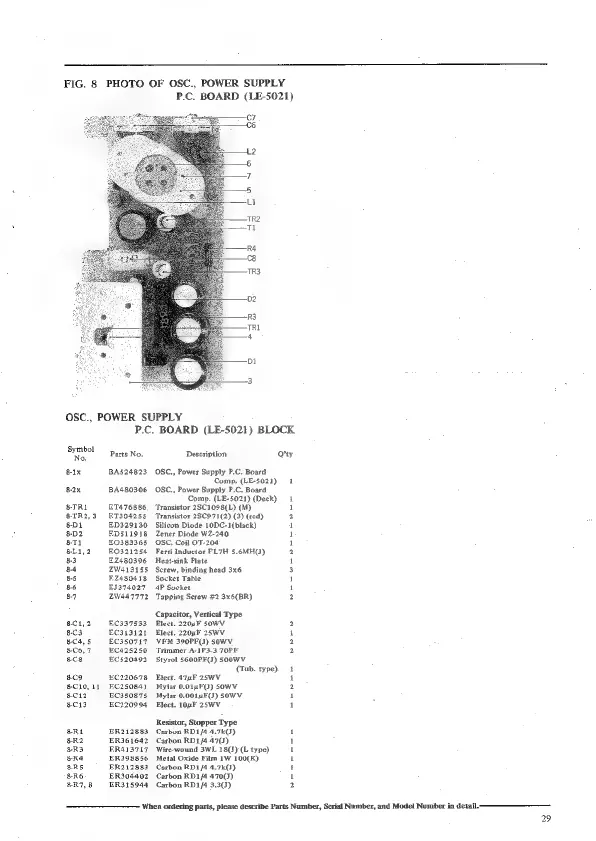

FIG. 8 PHOTO OF OSC., POWER SUPPLY
P.C. BOARD (LE-5021)
OSC., POWER SUPPLY
P.C. BOARD (LE-5021) BLOCK
Symbol Parts No. Description ory
81x BA524823 OSC., Power Supply P.C. Board
Comp. (LE-S021) 1
82x BA480306 OSC., Power Supply P.C. Board
Comp. (LE-5021) (Deck) i
8TRI ET476886. ‘Transistor 2SC1098(L) (M) 1
8TR2,3 ET30425§ Transistor 28C971(2) (3) (ted) 2
&DL ED329130 Silicon Diode LODC-1(black) x
8-D2 EDS511918 Zener Diode W2-240 1
&T1 E£0383365 OSC. Coil OT-204 1
&L1,2 £O321254 Ferri inductor PL7H 5.6MH(Q) 3
83 EZ480396 Heat-sink Plate 1
84 ZW413155 Screw, binding head 3x6 3
8-5 F2480418 Socket Table J
86 £J374027 4P Sacket 1
8-7 2W447772 Tapping Screw #2 3x6(BR) 2
Capacitor, Vertical Type
8-C1, 2 EC337533 Elect. 220uF SOWV 2
8-C3 EC313121 Elect. 220¢F 25WV 4
&C4, 5 EC350717 VEM 390PF(J) SOWV 2
8 C6, 7 EC425250 Trimmer A-1P3-3 70PF 2
BCS EC520492 Styrol S600PF(J) SOOWV
(Tub. type) 1
BCo £C220678 Elect. 47nF 25WV i
8C10,11 EC250841 Mylar 0.01¢F(3) SOWV 2
8C12 EC350875 Mylar 0.001uF(J) 5OWV 1
8C13 EC220994 Elect. 10uF 25WV +
Resistor, Stopper Type
BRL ER212883 Carbon RD1/4 4.7K) 1
8-R2 ER361642 Carbon RD1/4 47(J) 1
&R3 FR413717 Wire-wound 3WL 18(3)(L type) 1
SR4 ER398856 Metal Oxide Film 1W 100(K) ee
&RS £R212883 Carbon RD1/4 4.7k(3) i
8-R6 ER304402 Carbon RD1/4 470(J) L
&R7,8 ER315944 Carbon RD1/4 3.30) 2
When ordering parts, please describe Parts Number, Serial Number, and Model Number in detail.
29
