Akai 4400D Service Manual

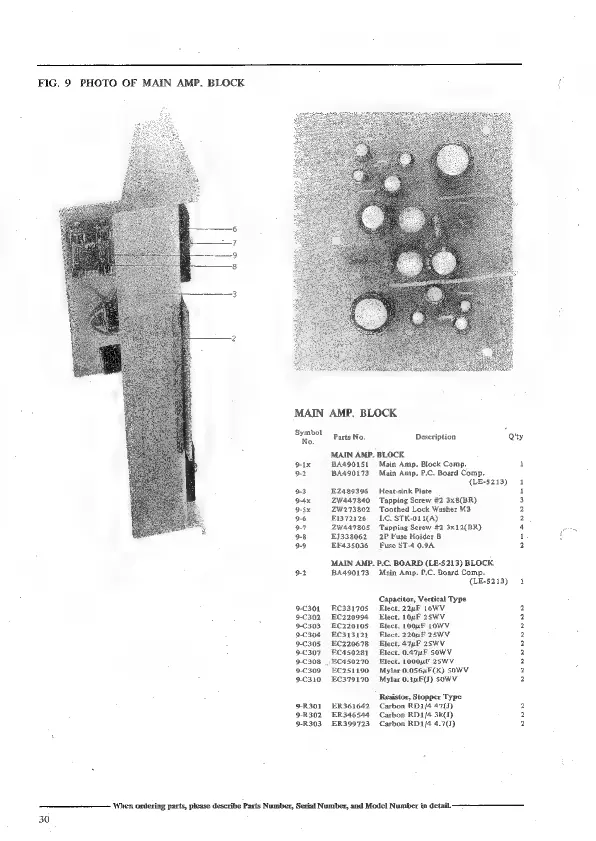

FIG, 9 PHOTO OF MAIN AMP. BLOCK
Symbol parts No.
0,
MAIN AMP.
OLx BA490151
9-2 BA490173
9-3 EZ489396
ax ZW447840
9-Sx ZW273802
9-6 F1372126
9-7 ZW447805
9-8 EJ338062
9-9 EF435036
MAIN AMP.
92 BA490173
9-€301 FC331708
9-C302 EC220994
9-C303 EC220105
9-C304 -BC313121
9-C305 EC220678
9-C307 FC450281
9-C308 | EC450270
9-C309 EC251190
9-C310 EC379170
9-R301 ER361642
9-R302 ER346544
9-R303 ER399723
30
MAIN AMP. BLOCK
Description
BLOCK
Main Amp. Block Comp.
Main Amp, P.C. Board Comp.
(LE-5213)
Heat-sink Plate
Tapping Screw #2 3x8(BR)
Toothed Lock Washer M3
1.C. STK-011(A)
Tapping Screw #2 3x12(BR)
2P Fuse Holder B
Fuse ST-4 0.94,
P.C. BOARD (LE-5213) BLOCK.
Main Amp. P,C. Board Comp.
(LE-5213)
Capacitor, Vertical Type
Elect. 22uT 16WV
Elect, 104F 28WV
Elect. 1004F 10WV
Flect. 220uF 25WV
Elect. 474F 2sWV
Elect. 0.47uF S0oWV
Elect. L000uF 25WV
Mylar 0.056uF(K} SOWV
Mylar 0.4uF() soWV
Resistor, Stopper Type
Carbon RD1/4 47()
Carbon RD1/4 3k()
Carbon RD1/4 4.70)
‘When ordering parts, please describe Parts Number, Serial Number, and Model Number in detail.
Qty
we eenuee
PERRKRKHND
