Akai AP-207

CABINET
Fig. 10

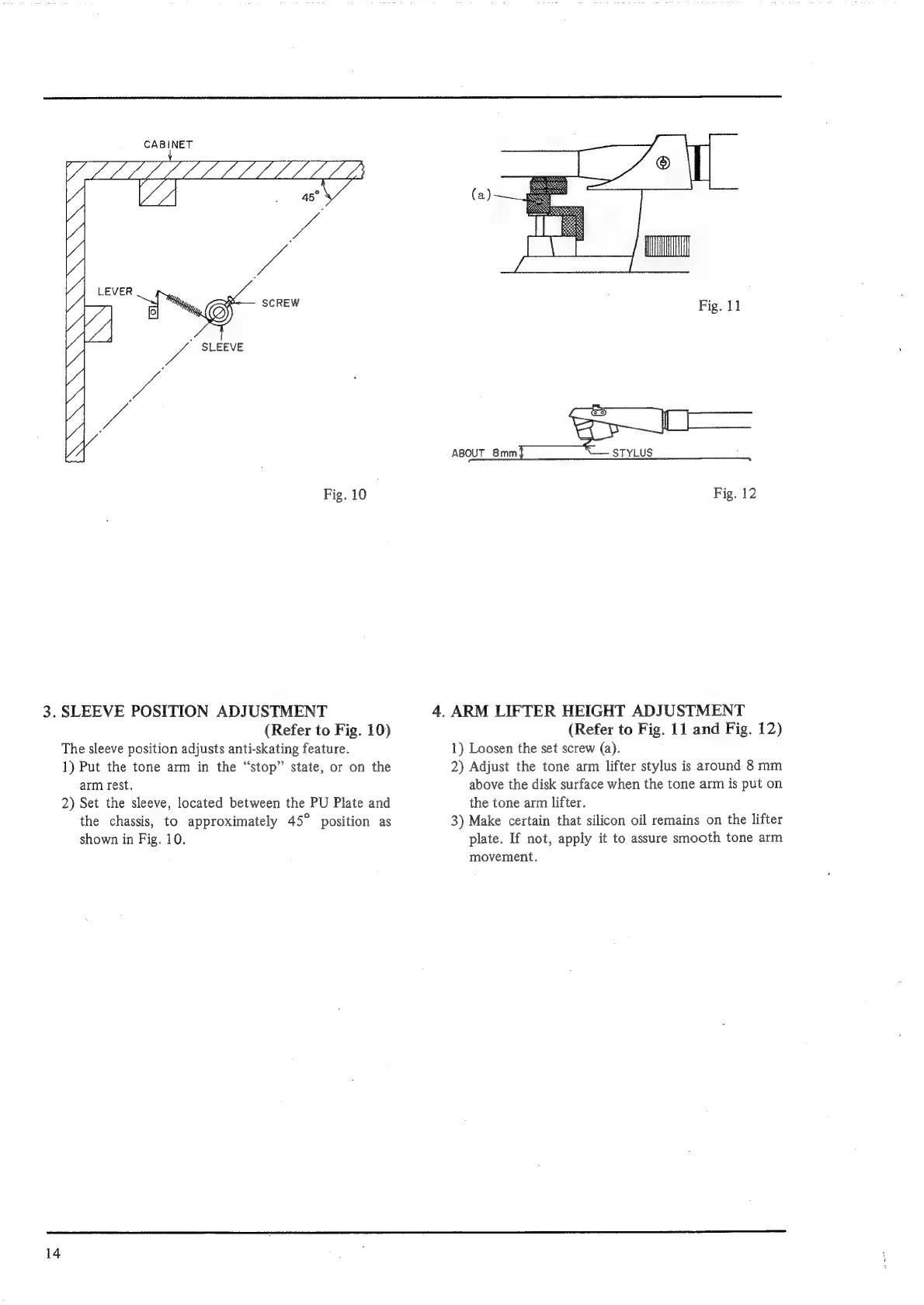

. SLEEVE POSITION ADJUSTMENT
(Refer to Fig. 10)
The sleeve position adjusts anti-skating feature.
1) Put the tone arm in the “stop” state, or on the
arm rest.
2) Set the sleeve, located between the PU Plate and
the chassis, to approximately 45° position as
shown in Fig. 10.
(a)
An
Fig. 11
ABOUT 8mm
Fig. 12
4, ARM LIFTER HEIGHT ADJUSTMENT
(Refer to Fig. 11 and Fig. 12)
1) Loosen the set screw (a).
2) Adjust the tone arm lifter stylus is around 8 mm
above the disk surface when the tone arm is put on
the tone arm lifter.
3) Make certain that silicon oil remains on the lifter
plate. If not, apply it to assure smooth tone arm
movement.
