Akai AP-B21 - III. CONTROLS

CONTROLS
AP-D33/C
AP-Q55/C
1. MODEL AP-D33/C
®D @®DOOO® QOD VDOGY
OOO OY OW, So 9: ROS
~ sw a o QP ee:
45 rpm ADAPTER HOLDER
CARTRIDGE SHELL HOLDER
HINGES
PLATTER
RUBBER MAT
GROOVE FOR OVERHANG ADJUSTMENT
SPINDLE
GROOVE FOR AUTO-RETURN ADJUSTMENT
TONE ARM LIFTER
TONE ARM LIFTER HEIGHT ADJUSTMENT SCREW
AUTO-RETURN ADJUSTMENT SCREW CAP
MAIN WEIGHT
STYLUS PRESSURE SCALE RING
* A cartridge is not included with AP-D33.
Fig. |
14,
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
QD DD O44

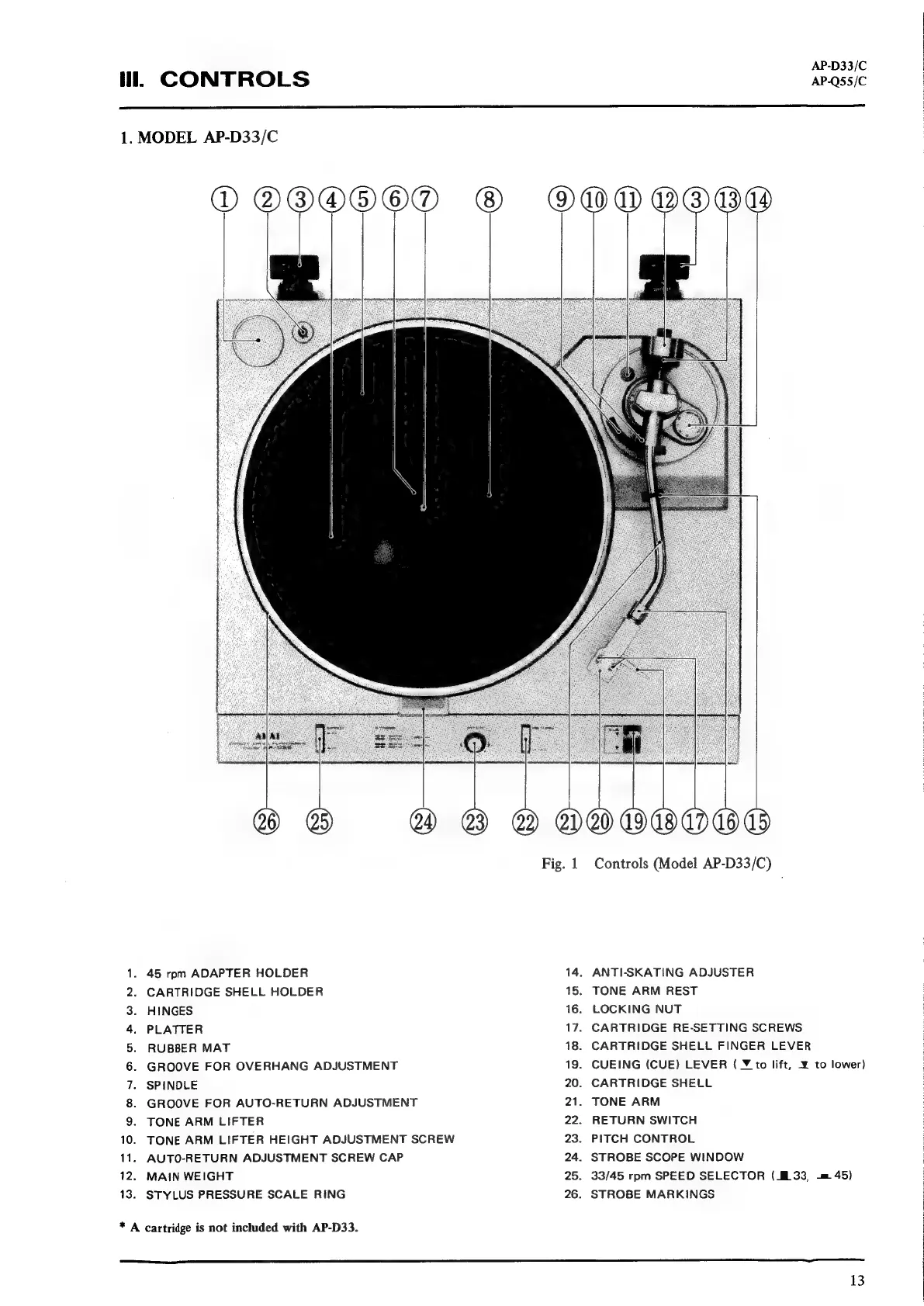

Controls (Model AP-D33/C)
ANTI-SKATING ADJUSTER
TONE ARM REST
LOCKING NUT
CARTRIDGE RE-SETTING SCREWS
CARTRIDGE SHELL FINGER LEVER
CUEING (CUE) LEVER ( ¥ to lift, % to lower)
CARTRIDGE SHELL
TONE ARM
RETURN SWITCH
PITCH CONTROL
STROBE SCOPE WINDOW
33/45 rpm SPEED SELECTOR (1.33, -m 45)
STROBE MARKINGS
ee SE St NC EES
13
|
|
:
