Akai AP-D40

V. VOLTAGE AND CYCLE CONVERSION
POWER TRANSFORMER FUSE RC BOARD
110-l20V: Fl O4A
220-240V: F2 O4A

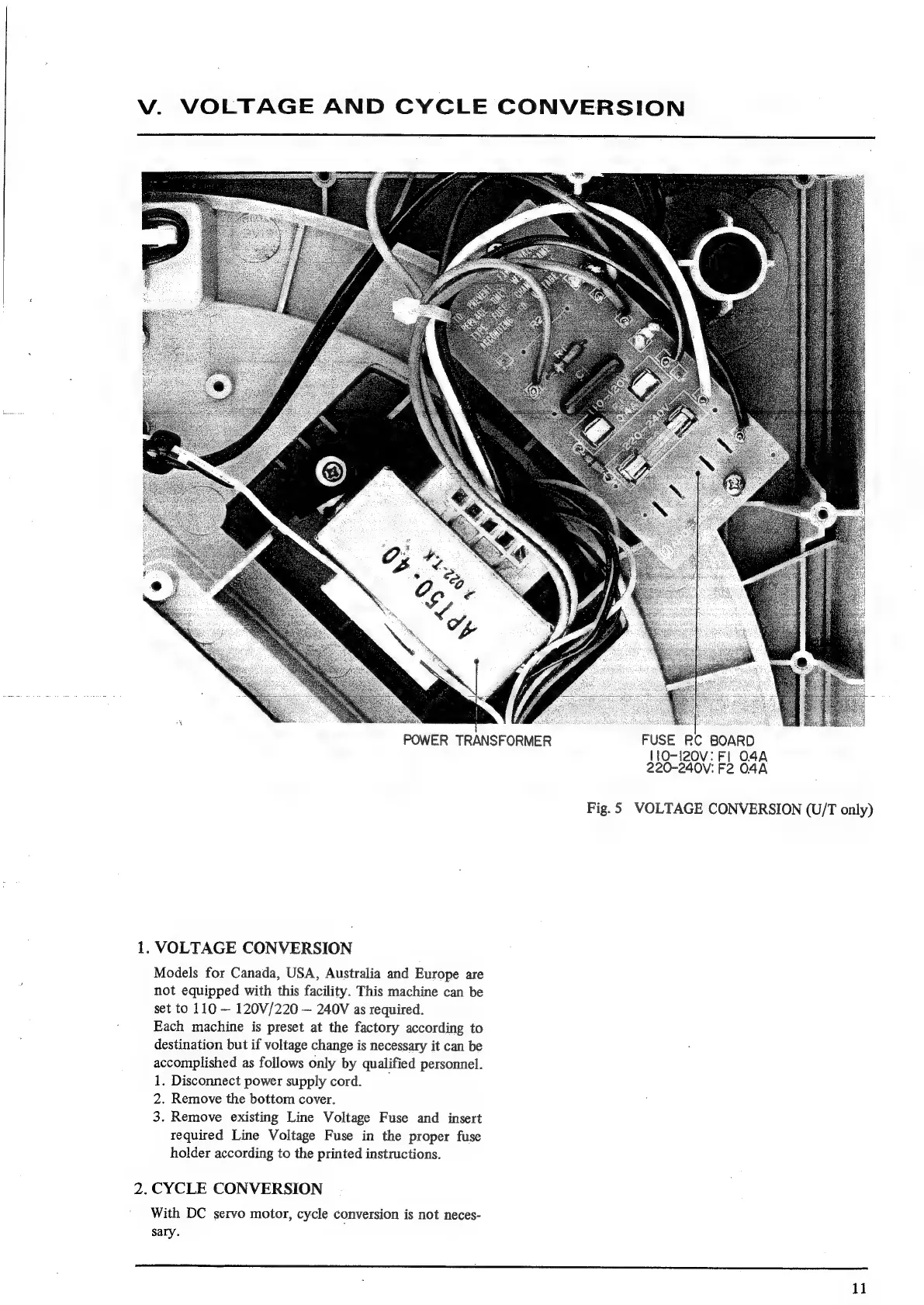

Fig.5 VOLTAGE CONVERSION (U/T only)
1. VOLTAGE CONVERSION
Models for Canada, USA, Australia and Europe are
not equipped with this facility. This machine can be
set to 110 — 120V/220 — 240V as required.
Each machine is preset at the factory according to
destination but if voltage change is necessary it can be
accomplished as follows only by qualified personnel.
1. Disconnect power supply cord.
2. Remove the bottom cover.
3. Remove existing Line Voltage Fuse and insert
required Line Voltage Fuse in the proper fuse
holder according to the printed instructions.
2. CYCLE CONVERSION
With DC servo motor, cycle conversion is not neces-
sary.
11
