2) Tone Arm Lifter Height Adjustment (Refer to Fig. 7).
Puts Muaunpe meine weet aiiine anata:
totter ie
rte mney AS MMM HK
EAD-IN/LEAD-OUT
ADJUSTMENT SCREW
rc
TONE ARM LIFTER
HEIGHT ADJUSTMENT SCREW

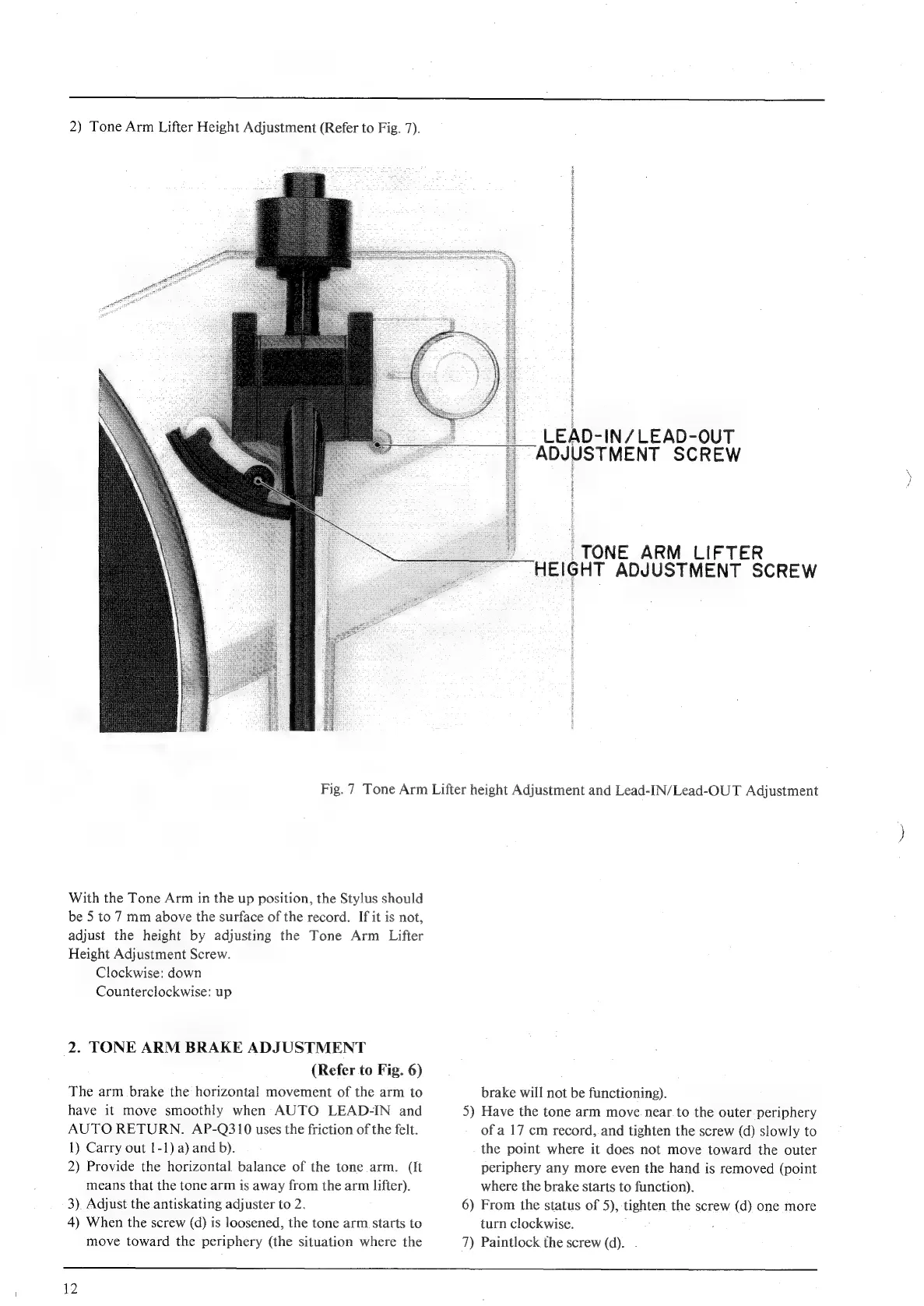

Fig. 7 Tone Arm Lifter height Adjustment and Lead-IN/Lead-OUT Adjustment
With the Tone Arm in the up position, the Stylus should
be 5 to 7 mm above the surface of the record. If it is not,
adjust the height by adjusting the Tone Arm Lifter
Height Adjustment Screw.
Clockwise: down
Counterclockwise: up
2. TONE ARM BRAKE ADJUSTMENT
(Refer to Fig. 6)
The arm brake the horizontal movement of the arm to
have it move smoothly when AUTO LEAD-IN and
AUTO RETURN. AP-Q310 uses the friction of the felt.
1) Carry out I-1) a) and b).
2) Provide the horizontal balance of the tone arm. (It
means that the tone arm is away from the arm lifter).
3). Adjust the antiskating adjuster to 2.
4) When the screw (d) is loosened, the tone arm starts to
move toward the periphery (the situation where the
brake will not be functioning).
5) Have the tone arm move near. to the outer. periphery
of a 17 cm record, and tighten the screw (d) slowly to
the point where it does not move toward the outer
periphery any more even the hand is removed (point
where the brake starts to function). ,
6) From the status of 5), tighten the screw (d) one more
turn clockwise.
7) Paintlock the screw (d)._.
