Akai EWV2000 User Manual

27

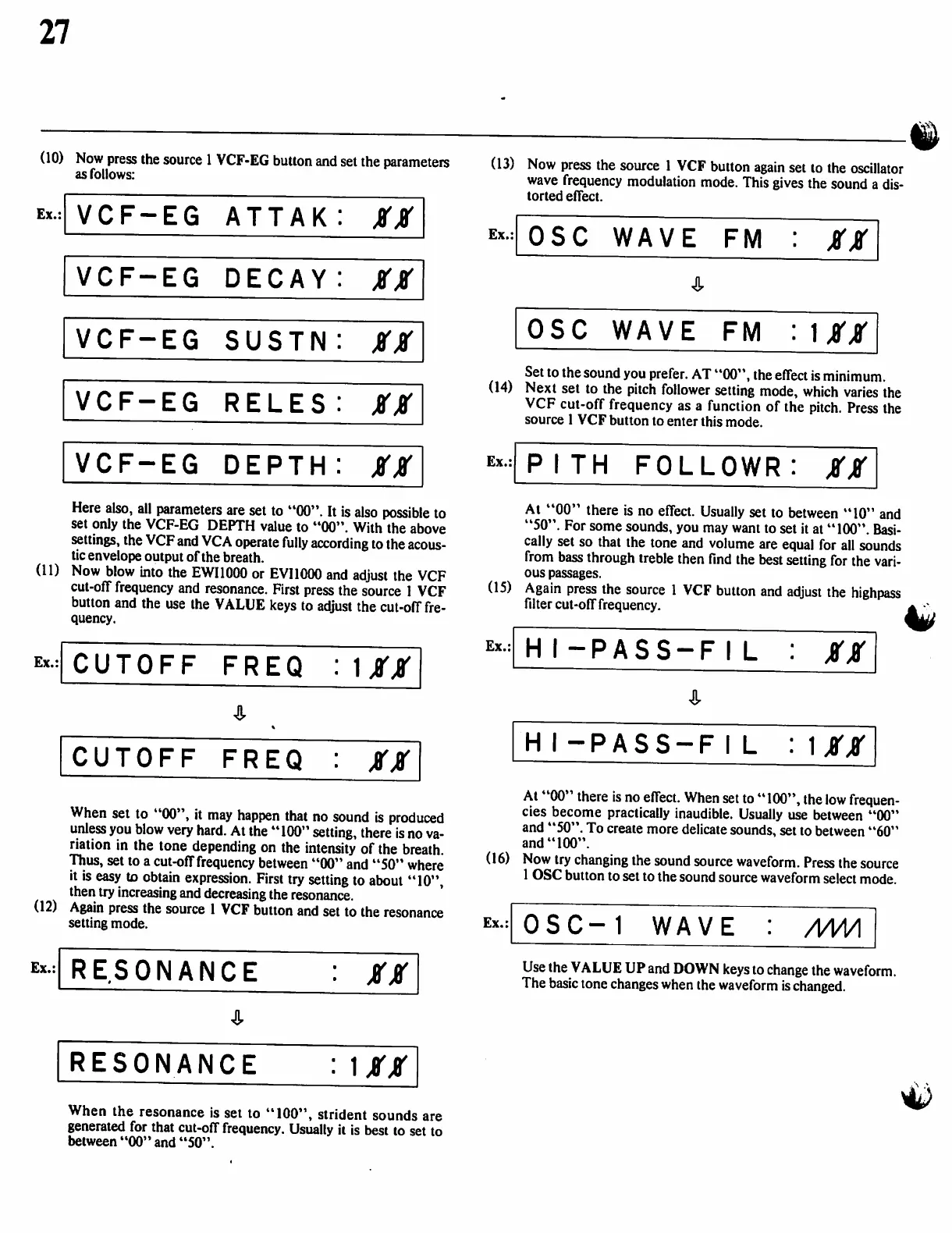

(10) Now press the source 1 VCF-EG button and set the parameters
as follows:
Ex.:
Here also, all parameters are set to "00". It is also possible to
set only the VCF-EG DEPTH value to "00". With the above
settings, the VCF and VCA operate fully according to the acous
tic envelope output of the breath.
(11) Now blow into the EWI1000 or EVI1000 and adjust the VCF
cut-off frequency and resonance. First press the source 1 VCF
button and the use the VALUE keys to adjust the cut-off fre
quency.
Ex.:
When set to "00", it may happen that no sound is produced
unless you blow very hard. At the "100" setting, there is no va
riation in the tone depending on the intensity of the breath.
Thus, set to a cut-off frequency between "00" and "50" where
it is easy to obtain expression. First try setting to about "10",
then try increasing and decreasing the resonance.
(12) Again press the source 1 VCF button and set to the resonance
setting mode.
Ex.:
RESONANCE
XX
(13) Now press the source 1 VCF button again set to the oscillator
wave frequency modulation mode. This gives the sound a dis
torted effect.
Ex.:
OSC WAVE FM :
OSC WAVE FM \\XX
Set to the sound you prefer. AT "00", the effect is minimum.
(14) Next set to the pitch follower setting mode, which varies the
VCF cut-off frequency as a function of the pitch. Press the
source 1 VCF button to enter this mode.
Ex.:
PITH F0LL0WR: XX
At **00" there is no effect. Usually set to between "10" and
"50". For some sounds, you may want to set it at "100". Basi
cally set so that the tone and volume are equal for all sounds
from bass through treble then find the best setting for the vari
ous passages.
(15) Again press the source 1 VCF button and adjust the highpass
filter cut-off frequency.
At "00" there is no effect. When set to "100", the low frequen
cies become practically inaudible. Usually use between "00"
and "50". To create more delicate sounds, set to between "60"
and "100".
(16) Now try changing the sound source waveform. Press the source
1 OSC button to set to the sound source waveform select mode.
Ex.:
OSC-1 WAVE
AAAA
Use the VALUE UP and DOWN keys to change the waveform.
The basic tone changes when the waveform is changed.
RESONANCE
: \XX
When the resonance is set to "100", strident sounds are
generated for that cut-off frequency. Usually it is best to set to
between "00" and "50".
Scan by Manual Manor
http://www.markglinsky.com/ManualManor.html
