V.
VOLTAGE
CONVERSION
REAR PANEL
VOLTAGE
SELECTOR
VSI
~--
SHORT
PIN

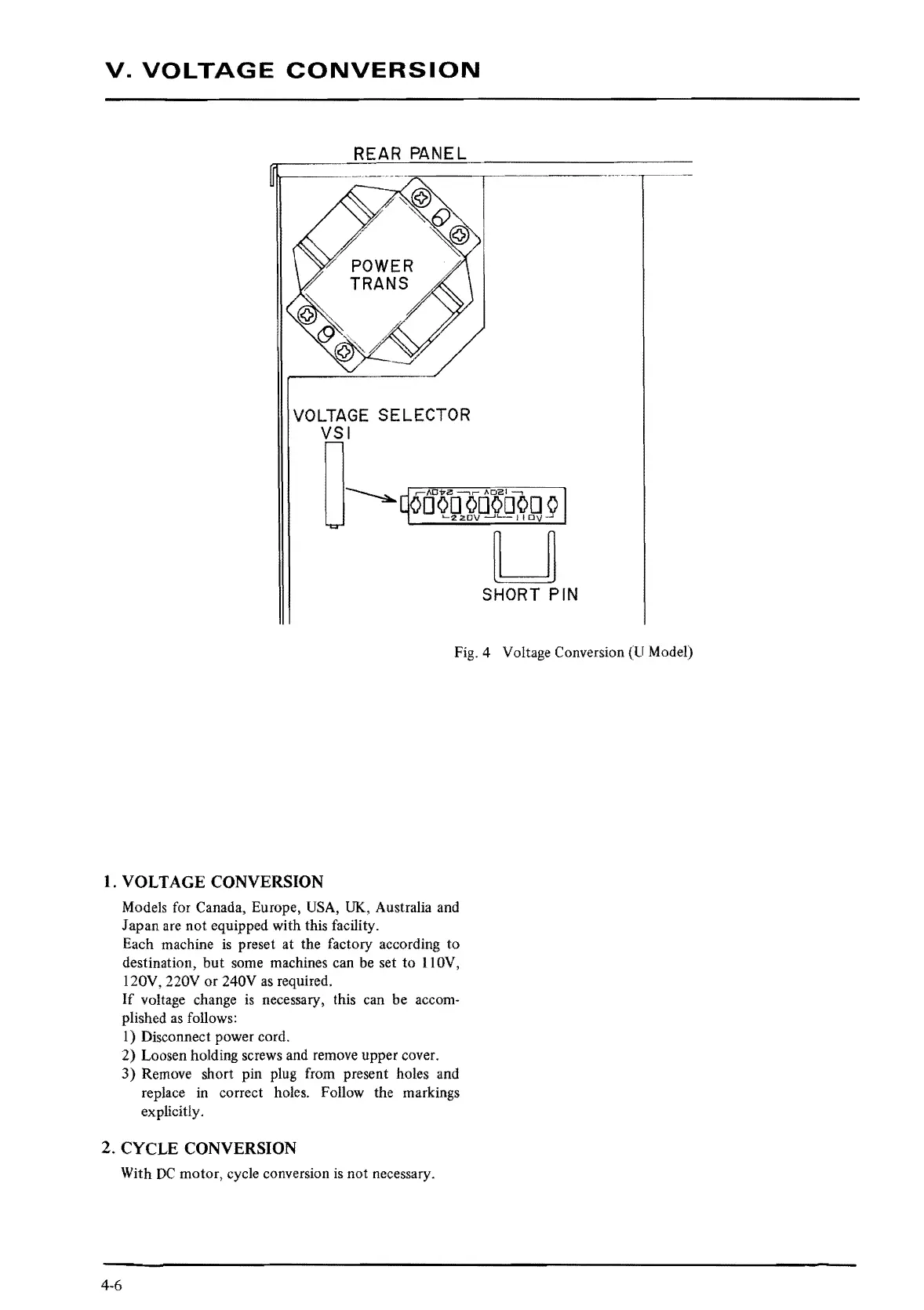

Fig. 4 Voltage Conversion (U Model)
1.
VOLTAGE
CONVERSION
Models for Canada, Europe,
USA,
UK,
Australia and
Japan are not equipped with this facility.
Each machine
is
preset at the factory according to
destination,
but
some machines can
be
set
to
1
IOV,
120V, 220V or 240V
as
required.
If
voltage change
is
necessary, this can be accom-
plished
as
follows:
1)
Disconnect power cord.
2)
Loosen holding screws and remove upper cover.
3)
Remove short pin plug from present holes and
replace
in
correct holes. Follow the markings
explicitly.
2.
CYCLE
CONVERSION
With
DC
motor, cycle conversion
is
not necessary.
4-6
