Akai GX-F51

VI. MECHANICAL ADJUSTMENT
200 +50 grm
-20 +
PINCH ROLLER (8)
(SUPPLY)
SPRING
GAUGE ~
350 +50grm
-20
♦
GX-F71
( TAKE UP)
~ PINCH ROLLER(A)
t
PINCH ROLLER ( S) SPRING
PINCH
ROLLER(T) SPRING

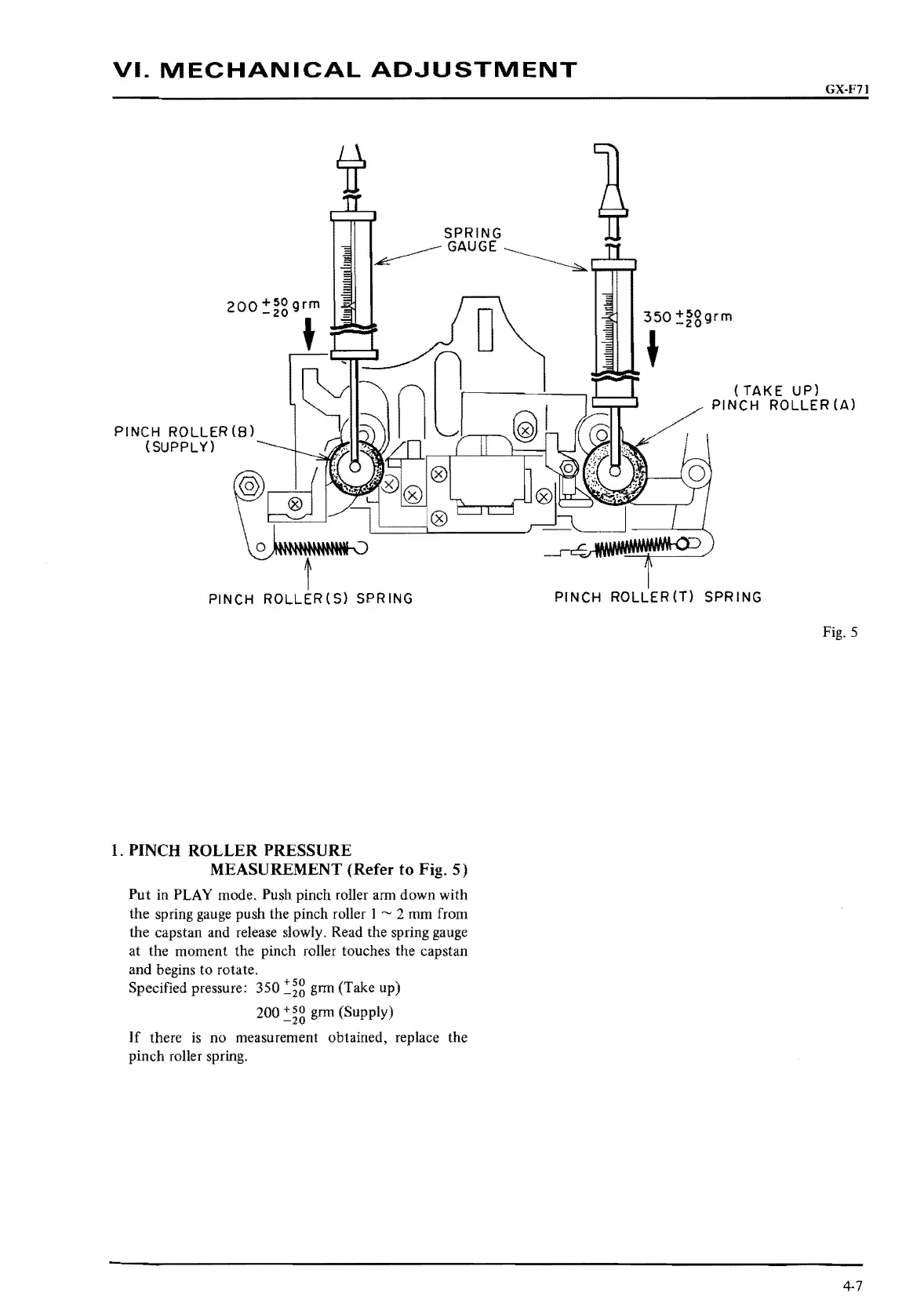

1. PINCH ROLLER PRESSURE
MEASUREMENT (Refer
to Fig. 5)
Put in PLAY mode. Push pinch roller arm down with
the spring
gauge push the pinch roller I ~ 2 mm from
the capstan and release slowly. Read the spring gauge
at the moment the pinch roller touches the capstan
and begins to rotate.
Specified pressure: 350
:::_~g grm (Take up)
200
:::_~g grm (Supply)
If there is no measurement obtained, replace the
pinch roller spring.
Fig. 5
4-7
