SP2+ Introduction Manual
- 4 -

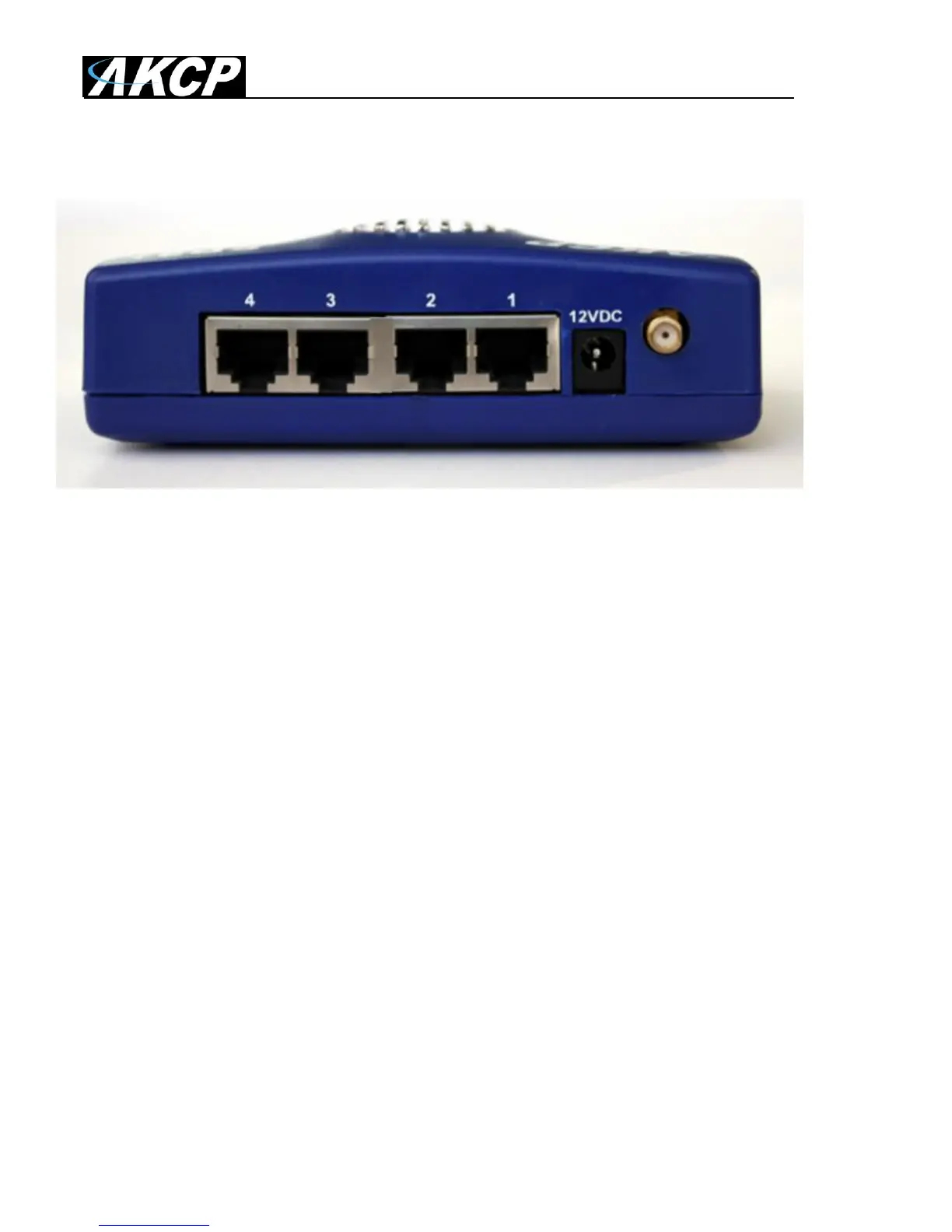

Port assignment information for SP2+ units
Port numbering starts from the power connector on the unit: the closest port to the power connector is
Port 1 and closest to the Ethernet interface is Port 4.
You may connect AKCP intelligent sensors to any available ports.
Important note: If you're using analog pins on the sensor ports (with manually on-lined DCV sensors,
and pin 7 of the RJ45 connector) make sure that the voltage doesn't exceed 3 Volts. Otherwise you
can damage the unit!
