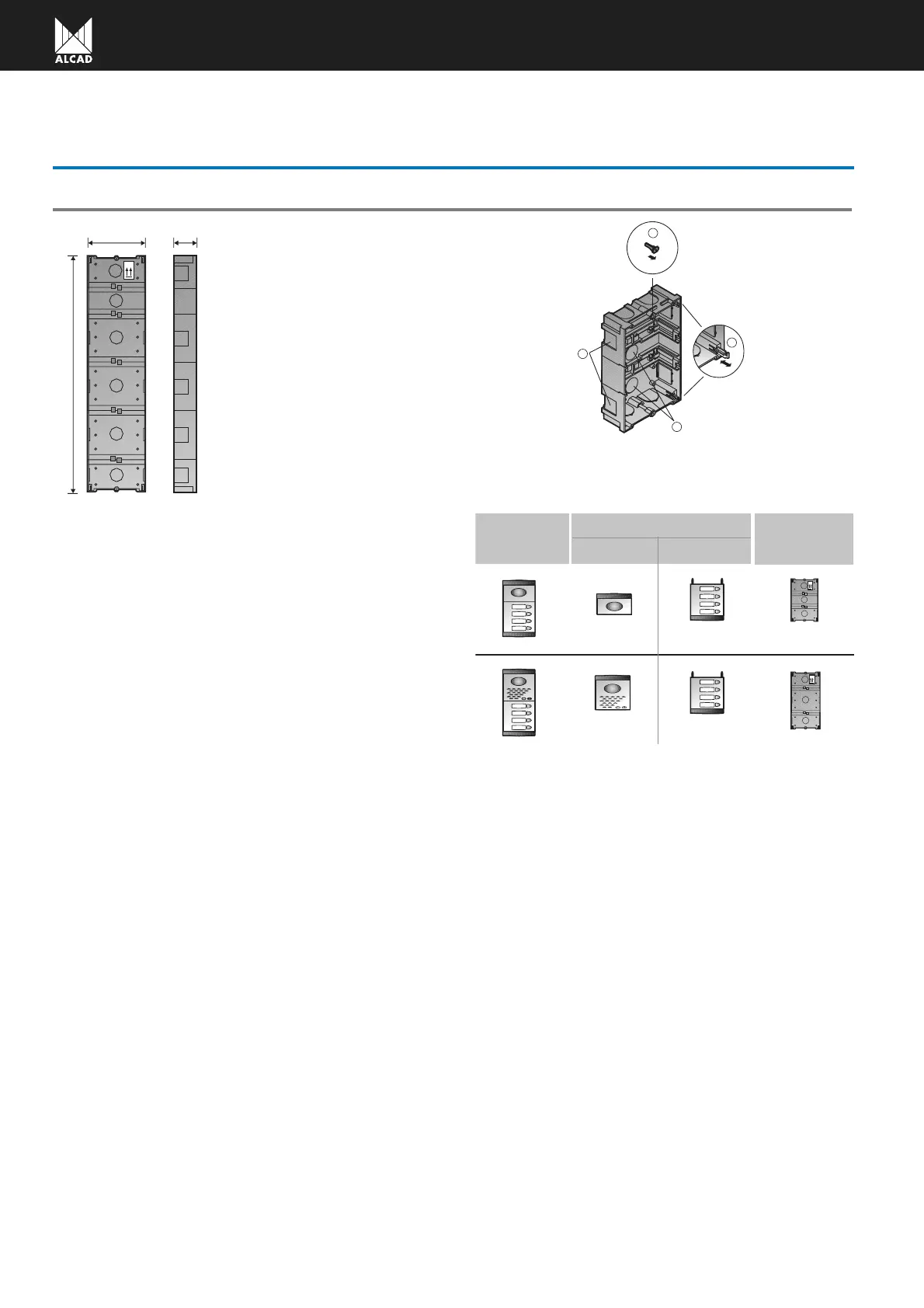

The flush-mounted boxes allow

the panel to be fixed in the de-

sired place.

The flush-mounted boxes have

special plugs to protect from plas-

ter or cement from the wall (1),

with support axles to open the

entrance panel to the right, left or

downwards (2) and several points

for passing the cable hoses (3).

They have lateral sections (4) for

the connection of several flush-

mounted boxes (panels in para-

llel). In this case separators

(model CEM-001) should be used.

ENTRANCE PANEL ACCESSORIES

ARRIBA

HAUT

114 mm

B mm

(depending on the model)

45 mm

Entrance panel modules

Single Module

Flush-mounted box

necessary

ARRIBA

HAUT

ARRIBA

HAUT

CMO-004

CMO-006

Configuration of

the entrance panel

MPS-004

Upper module Lower module

Double Module MPS-004

FLUSH-MOUNTED BOXES

Choosing the flush-mounted box

The choice of the flush-mounted box will be determined by

the characteristics of the entrance panel to be installed as

follows:

If the entrance panel has a single upper module, the flush-

mounted box to use will be defined by the numbers of levels

or rows of push-buttons of the entrance panel.

If the entrance panel has a double upper module, the

flush-mounted box to use will be the following model to the

defined by the numbers of levels or rows of push-buttons of

the entrance panel.

Code 9740005 CMO-002

Flush-mounted box for 1 or 2 rows of push-buttons and

single upper module

Dimensions: 114 mm x 131 mm x 45 mm

Code 9740006 CMO-004

Code 9740007 CMO-006

Code 9740008 CMO-008

Code 9740010 CMO-012

Code 9740012 CMO-016

Code 9740015 CMO-018

Flush-mounted box for 3 or 4 rows of push-buttons and

single upper module

Dimensions: 114 mm x 179 mm x 45 mm

Flush-mounted box for 5 or 6 rows of push-buttons and

single upper module

Dimensions: 114 mm x 227 mm x 45 mm

Flush-mounted box for 7 or 8 rows of push-buttons and

single upper module

Dimensions: 114 mm x 275 mm x 45 mm

Flush-mounted box for 9 or 10 rows of push-buttons and

single upper module

Dimensions: 114 mm x 323 mm x 45 mm

Flush-mounted box for 11 or 12 rows of push-buttons

and single upper module

Dimensions: 114 mm x 371 mm x 45 mm

Flush-mounted box for 13 or 14 rows of push-buttons

and single upper module

Dimensions: 114 mm x 419 mm x 45 mm

Flush-mounted box for 15 or 16 rows of push-buttons

and double upper module

Dimensions: 114 mm x 515 mm x 45 mm

Code 9740009 CMO-010

Code 9740011 CMO-014

Flush-mounted box for 15 or 16 rows of push-buttons

and single upper module

Dimensions: 114 mm x 467 mm x 45 mm
