Alcad 201 Series User Manual

25

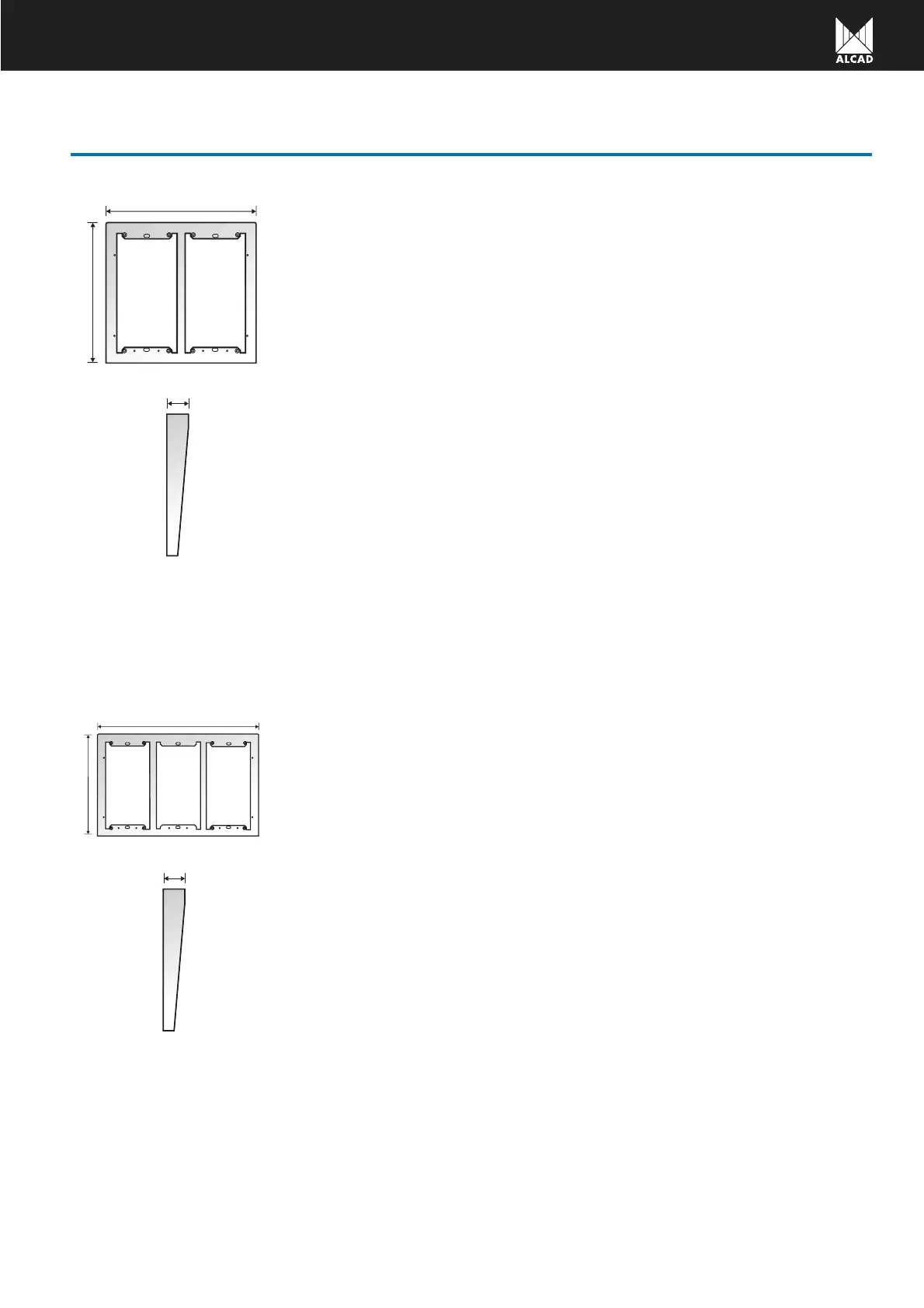

DOUBLE RAIN-SHIELDS
280 mm
B mm
(depending on the model)
42 mm
Code 9740084 VIS-021
Double rain-shield for 1 or 2 rows of
push-buttons and single upper module
Dimensions: 280 mm x 170 mm x 42 mm
Code 9740085 VIS-022
Double rain-shield for 3 or 4 rows of
push-buttons and single upper module
Dimensions: 280 mm x 218 mm x 42 mm
Code 9740086 VIS-023
Double rain-shield for 5 or 6 rows of
push-buttons and single upper module
Dimensions: 280 mm x 266 mm x 42 mm
Code 9740087 VIS-024
Double rain-shield for 7 or 8 rows of
push-buttons and single upper module
Dimensions: 280 mm x 314 mm x 42 mm
Code 9740088 VIS-025
Double rain-shield for 9 or 10 rows of
push-buttons and single upper module
Dimensions: 280 mm x 362 mm x 42 mm
Code 9740089 VIS-026
Double rain-shield for 11 or 12 rows of
push-buttons and single upper module
Dimensions: 280 mm x 410 mm x 42 mm
Code 9740090 VIS-027
Double rain-shield for 13 or 14 rows of
push-buttons and single upper module
Dimensions: 280 mm x 458 mm x 42 mm
Code 9740091 VIS-028
Double rain-shield for 15 or 16 rows of
push-buttons and single upper module
Dimensions: 280 mm x 506 mm x 42 mm
Code 9740092 VIS-029
Double rain-shield for 15 or 16 rows of
push-buttons and double upper module
Dimensions: 280 mm x 554 mm x 42 mm
TRIPLE RAIN-SHIELDS
42 mm
408 mm
B mm
(depending on the model)
Code 9740095 VIS-033
Triple rain-shield for 5 or 6 rows
of
push-buttons and single upper module
Dimensions: 408 mm x 266 mm x 42 mm
Code 9740096 VIS-034
Triple rain-shield for 7 or 8 rows of
push-buttons and single upper module
Dimensions: 408 mm x 314 mm x 42 mm
Code 9740097 VIS-035
Triple rain-shield for 9 or 10 rows
of
push-buttons and single upper module
Dimensions: 408 mm x 362 mm x 42 mm
Code 9740098 VIS-036
Triple rain-shield for 11 or 12 rows of
push-buttons and single upper module
Dimensions: 408 mm x 410 mm x 42 mm
Code 9740099 VIS-037
Triple rain-shield for 13 or 14 rows of
push-buttons and single upper module
Dimensions: 408 mm x 458 mm x 42 mm
Code 9740018 VIS-038
Triple rain-shield for 15 or 16 rows of
push-buttons and single upper module
Dimensions: 408 mm x 506 mm x 42 mm
Code 9740019 VIS-039
Triple rain-shield for 15 or 16 rows of
push-buttons and double upper module
Dimensions: 408 mm x 554 mm x 42 mm
Code 9740093 VIS-031
Triple rain-shield for 1 or 2 rows of
push-buttons and single upper module
Dimensions: 408 mm x 170 mm x 42 mm
Code 9740094 VIS-032
Triple rain-shield for 3 or 4 rows of
push-buttons and single upper module
Dimensions: 408 mm x 218 mm x 42 mm
