24

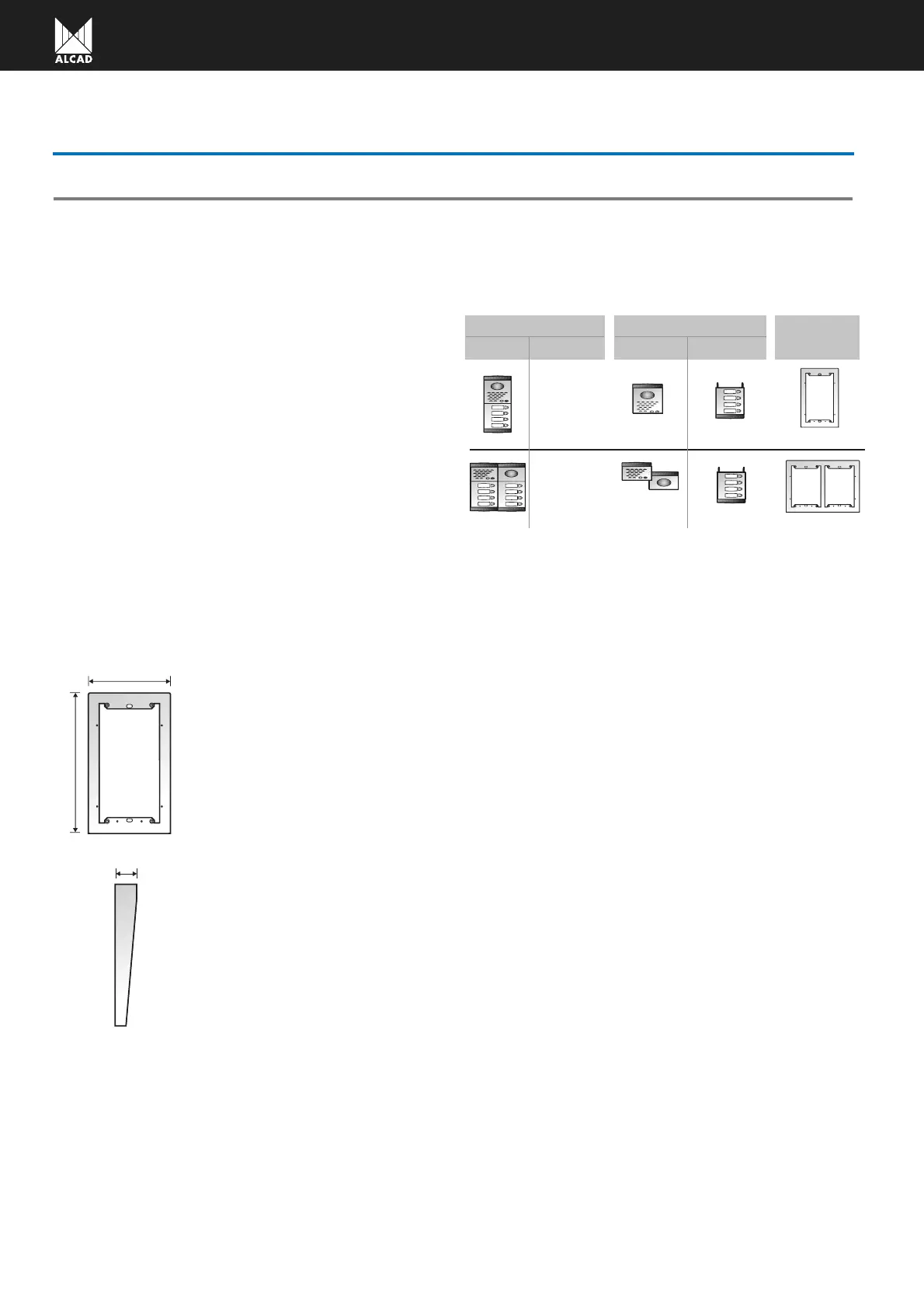

RAIN-SHIELDS
The rain-shields provide additional protection for the entrance panel against atmospheric elements such as rain, snow,
etc. The rain-shield is fixed to the flush-mounted or surface wall-mounted box. They are divided into single, double or
triple rain-shields to protect a single entrance panel (single rain-shield), two entrance panels in parallel (double rain-
shield) or three entrance panels in parallel (triple rain-shield).
Choosing the correct rain-shield
The choice of rain-shield is determined by the characte-
ristics of the entrance panel to be installed as well as by the
number of entrance panels which are to be installed toge-
ther (in parallel) in the following manner:
Identify the number of panels which will be located toge-
ther (in parallel), and decide which of the single, double or
triple rain-shields is most appropriate.
If the entrance panel has a single upper module. the rain-
shield to be used will be defined by the number of rows or
levels of push-buttons on the panel.
If the entrance panel has a double upper module. the rain-
shield to be used will be the following model to the defined
by the number of rows or levels of push-buttons on the
panel.
Entrance panels modules
Single Modules
Rainshield
necessary
VIS-013
Configuration of
the entrance panel
MPS-004
Upper modules
Lower modules
Double Module
MPS-004
Number of panels
1
2
VIS-022
42 mm
B mm
(depending on the model)
152 mm
Code 9740075 VIS-011
Single rain-shield for 1 or 2 rows
of
push-buttons and single upper module
Dimensions: 152 mm x 170 mm x 42 mm
Code 9740076 VIS-012
Single rain-shield for 3 or 4 rows of
push-buttons and single upper module
Dimensions: 152 mm x 218 mm x 42 mm
Code 9740077 VIS-013
Single rain-shield for 5 or 6 rows of
push-buttons and single upper module
Dimensions: 152 mm x 266 mm x 42 mm
Code 9740078 VIS-014
Single rain-shield for 7 or 8 rows of
push-buttons and single upper module
Dimensions: 152 mm x 314 mm x 42 mm
Code 9740079 VIS-015
Single rain-shield for 9 or 10 rows of
push-buttons and single upper module
Dimensions: 152 mm x 362 mm x 42 mm
SINGLE RAIN-SHIELDS
Code 9740080 VIS-016
Single rain-shield for 11 or 12 rows
of
push-buttons and single upper module
Dimensions: 152 mm x 410 mm x 42 mm
Code 9740081 VIS-017
Single rain-shield for 13 or 14 rows of
push-buttons and single upper module
Dimensions: 152 mm x 458 mm x 42 mm
Code 9740082 VIS-018
Single rain-shield for 15 or 16 rows of
push-buttons and single upper module
Dimensions: 152 mm x 506 mm x 42 mm
Code 9740083 VIS-019
Single rain-shield for 15 or 16 rows of
push-buttons and double upper module
Dimensions: 152 mm x 554 mm x 42 mm
