Alcad 201 Series User Manual

23
280 mm
B mm
(depending on the model)
50 mm
50 mm
408 mm
B mm
(depending on the model)
Code 9740062
CSU-026
Double surface wall-mounted box for 11 or 12
rows of push-buttons and single upper module
Dimensions: 280 mm x 410 mm x 50 mm
Code 9740063 CSU-027
Code 9740064 CSU-028
Double surface wall-mounted box for 15 or 16
rows of push-buttons and single upper module
Dimensions: 280 mm x 506 mm x 50 mm
Code 9740065 CSU-029
Double surface wall-mounted box for 15 or 16
rows of push-buttons and double upper modu-
le
Dimensions: 280 mm x 554 mm x 50 mm
Code 9740057 CSU-021
Double surface wall-mounted box for 1 or 2
rows
of push-buttons and single upper module
Dimensions: 280 mm x 170 mm x 50 mm
Code 9740058 CSU-022
Double surface wall-mounted box for 3 or 4
rows of push-buttons and single upper module
Dimensions: 280 mm x 218 mm x 50 mm
Code 9740059 CSU-023
Double surface wall-mounted box for 5 or 6
rows of push-buttons and single upper module
Dimensions 280 mm x 266 mm x 50 mm
Code 9740060 CSU-024
Double surface wall-mounted box for 7 or 8
rows
of push-buttons and single upper module
Dimensions: 280 mm x 314 mm x 50 mm
Code 9740061 CSU-025
Double surface wall-mounted box for 9 or 10
rows of push-buttons and single upper module
Dimensions: 280 mm x 362 mm x 50 mm
Code 9740071
CSU-036
Triple surface wall-mounted box for 11 or 12
rows
of push-buttons and single upper module
Dimensions: 480 mm x 410 mm x 50 mm
Code 9740072 CSU-037
Triple surface wall-mounted box for 13 or 14
rows
of push-buttons and single upper module
Dimensions: 480 mm x 458 mm x 50 mm
Code 9740073 CSU-038
Triple surface wall-mounted box for 15 or 16
rows
of push-buttons and single upper module
Dimensions: 480 mm x 506 mm x 50 mm
Code 9740074 CSU-039
Triple surface wall-mounted box for 15 or 16
rows
of push-buttons and double upper modu-
le
Dimensions: 480 mm x 554 mm x 50 mm

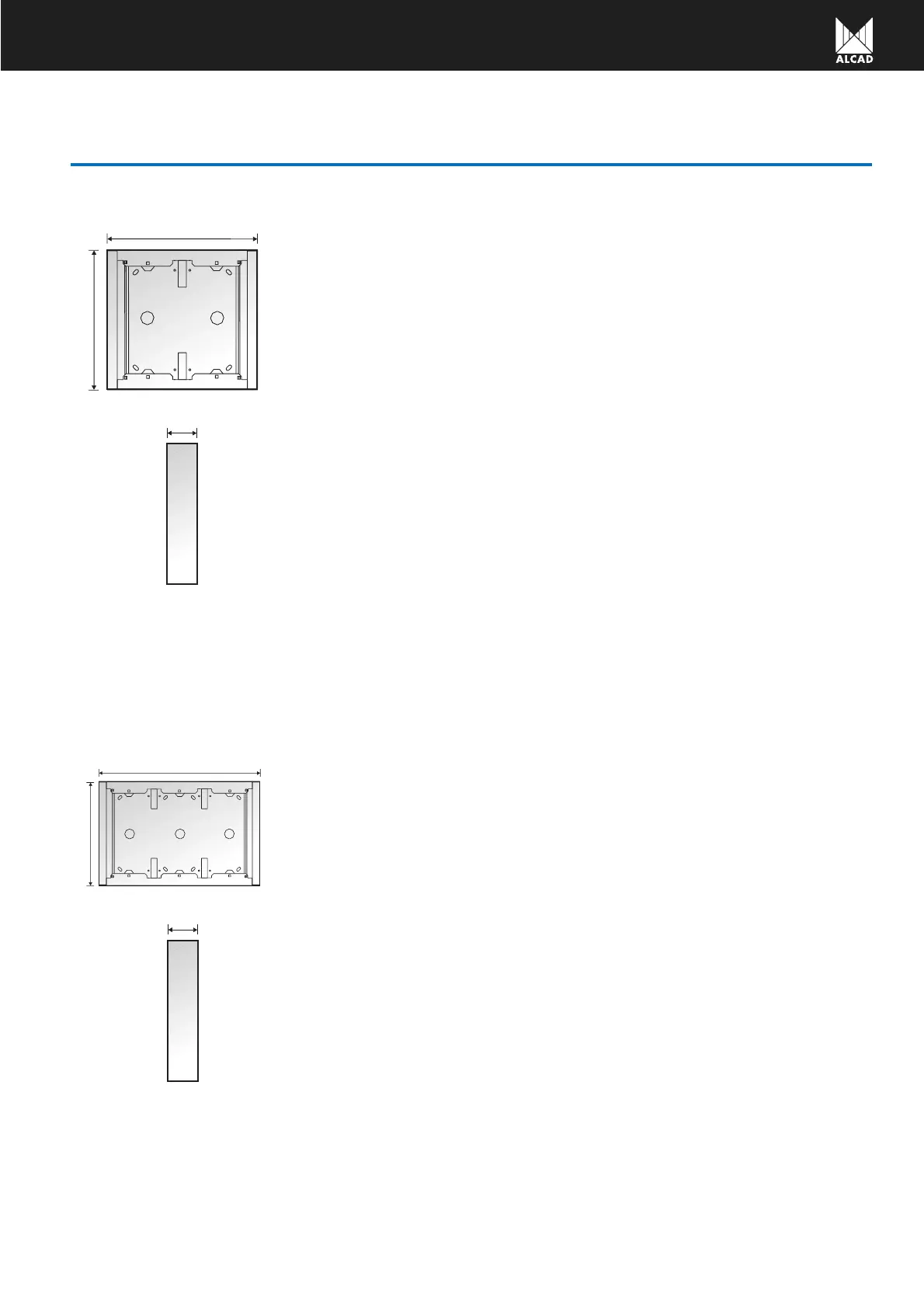

DOUBLE SURFACE WALL-MOUNTED BOXES
Code 9740066 CSU-031
Triple surface wall-mounted box for 1 or 2 rows
of push-buttons and single upper module
Dimensions: 480 mm x 170 mm x 50 mm
Code 9740067 CSU-032
Triple surface wall-mounted box for 3 or 4 rows
of push-buttons and single upper module
Dimensions: 480 mm x 218 mm x 50 mm
TRIPLE SURFACE WALL-MOUNTED BOXES
Double surface wall-mounted box for 13 or 14
rows of push-buttons and single upper module
Dimensions: 280 mm x 458 mm x 50 mm
Code 9740068 CSU-033
Triple surface wall-mounted box for 5 or 6 rows
of push-buttons and single upper module
Dimensions: 480 mm x 266 mm x 50 mm
Code 9740069 CSU-034
Triple surface wall-mounted box for 7 or 8 rows
of push-buttons and single upper module
Dimensions: 480 mm x 314 mm x 50 mm
Code 9740070 CSU-035
Triple surface wall-mounted box for 9 or 10
rows of push-buttons and single upper module
Dimensiones: 480 mm x 362 mm x 50 mm
