The video door entry kit offers the most comfortable solution for detached or semi-detached houses and includes all the pro-
ducts needed for the installation.
Each kit comes with the following elements:
• B/W video door entry monitor, model MVB-001, (The number of monitors depends on the number of push-buttons on
the entrance panel).
• Connections bracket, model SCM-010, (The number of connections brackets depends on the number of push-buttons
on the entrance panel).
• Compact and pre-wired entrance panel, fitted with rubber strips for water-tightness and rings (1) for hanging in the
flush-mounted box. The entrance panel includes:
• Audio unit with confidentiality feature, model GRF-104 (2)
• B/W video unit, model TCB-010 (3)
• Stainless steel push-buttons to call the houses or flats
• Card-holders to identify the push-buttons
• Flush-mounted box, model CMO-004
• AC-DC power supply unit, model ALM-040
• Standard alectric lock, model ABR-001
Code 9720000 KVS-08101
Kit for a detached house. Entrance panel with one pushbutton
Code 9720002 KVD-08101
Kit for a pair of semi-detached houses (or a building with two
independent flats). Entrance panel with two push-buttons in a
single row.
The kits are divided into single or double according to whether the panel push-buttons are in a single or double column.

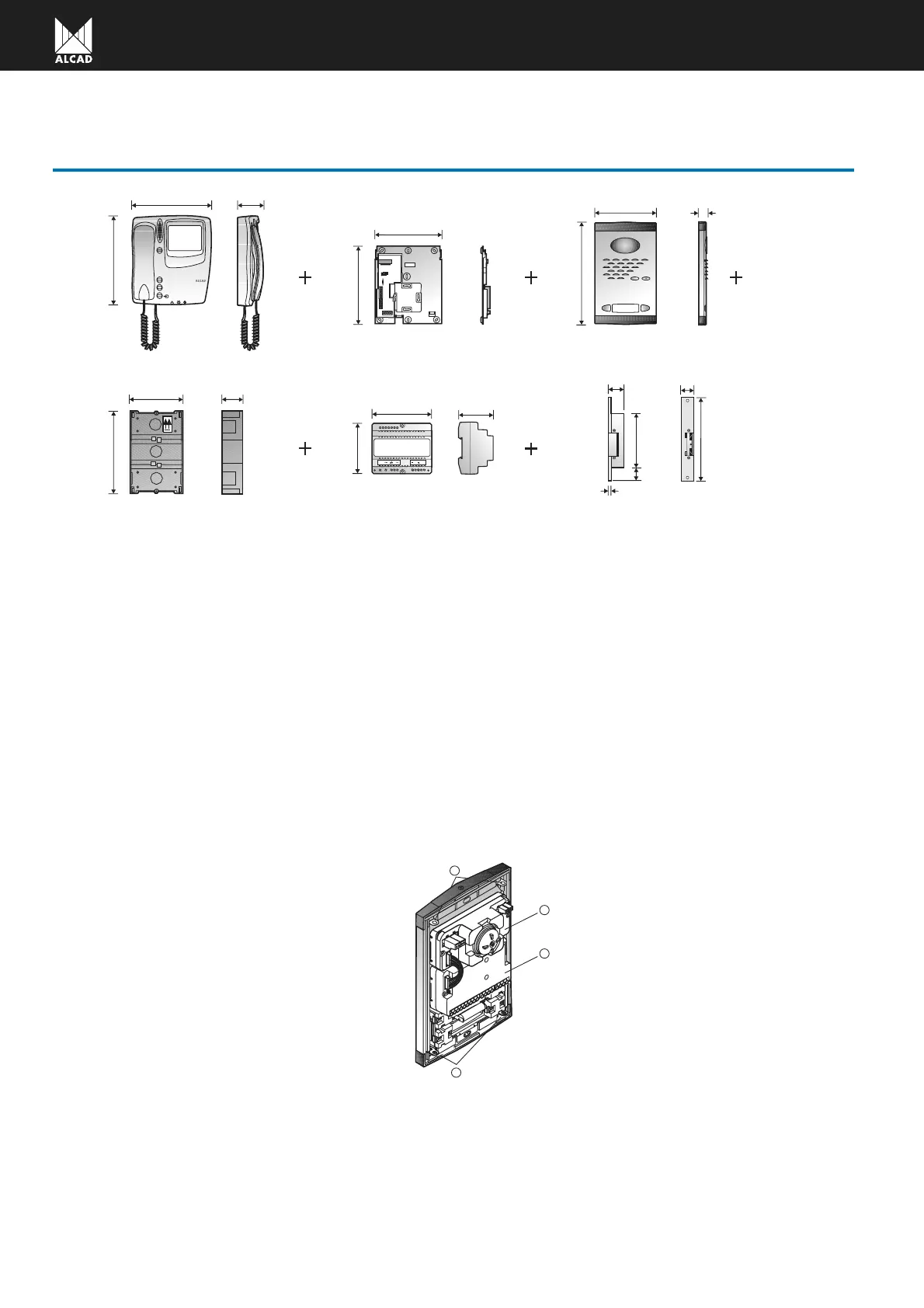

Detail of entrance panel
1 SINGLE PUSHBUTTON VIDEO KIT
1 DOUBLE PUSHBUTTON VIDEO KIT
106 mm
90 mm
60 mm
Power supply ALM-040
230 V230 V V
64.3 mm
197 mm
224 mm
Monitor MVB-001
166 mm
Connections bracket SCM-010
193 mm
128 mm
195 mm
Entrance panel
(1 or 2 push-buttons depending on the kit)
12 mm
Flush-mounted box CMO-004
45 mm
114 mm
179 mm
ARRIBA
UP
HAUT
r
-
160 mm
25 mm31 mm
100 mm30 mm
3 mm
