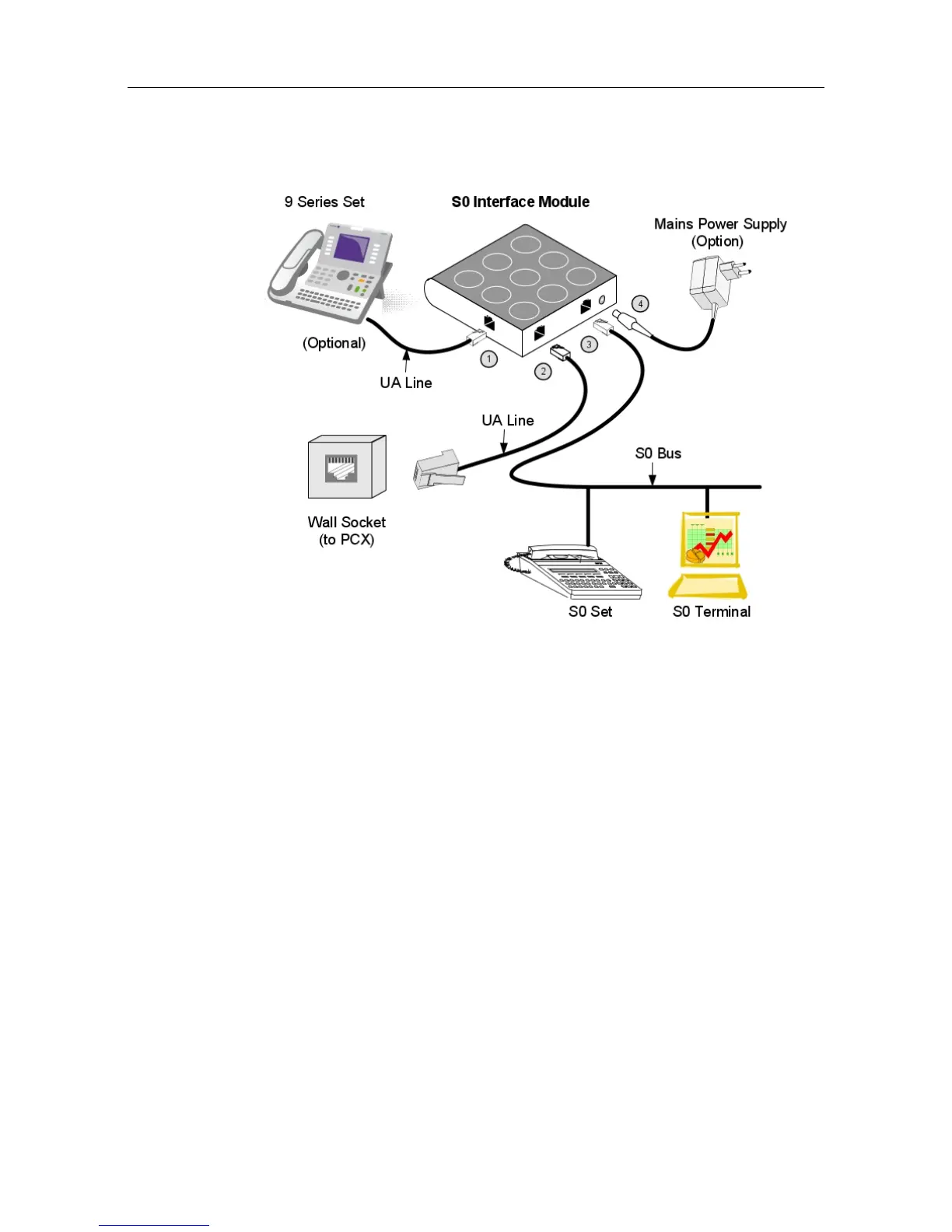

Figure 4.63: S0 Interface Module Connection
The S0 module is connected to:
1. A digital set (optional), via an RJ11/RJ11 cable of a 3 m maximum length
2. The Alcatel-Lucent OmniPCX Office Communication Server, via a wall socket and a
distributor frame
Connecting an S0 module is identical to connecting a digital set.
The maximum length between the S0 module and the PCX depends on cable quality. For
example:
• LY 0.5 mm cable: up to 800 m
• Ref. 278 0.6 mm cable: up to 1200 m
3. The S0 bus.
4. A Mains power supply unit: AC/DC converter (see details below)
CAUTION: The mains power supply unit is used as an S0 module sectioning device. This
device should be easily accessible.
4.9.3.2 Alcatel-Lucent S0 Interface Module Rear Panel Details
&'(
4-89
