Alcoa 200 - Tool Specifications

200 Series Tooling Alcoa Fastening Systems
6

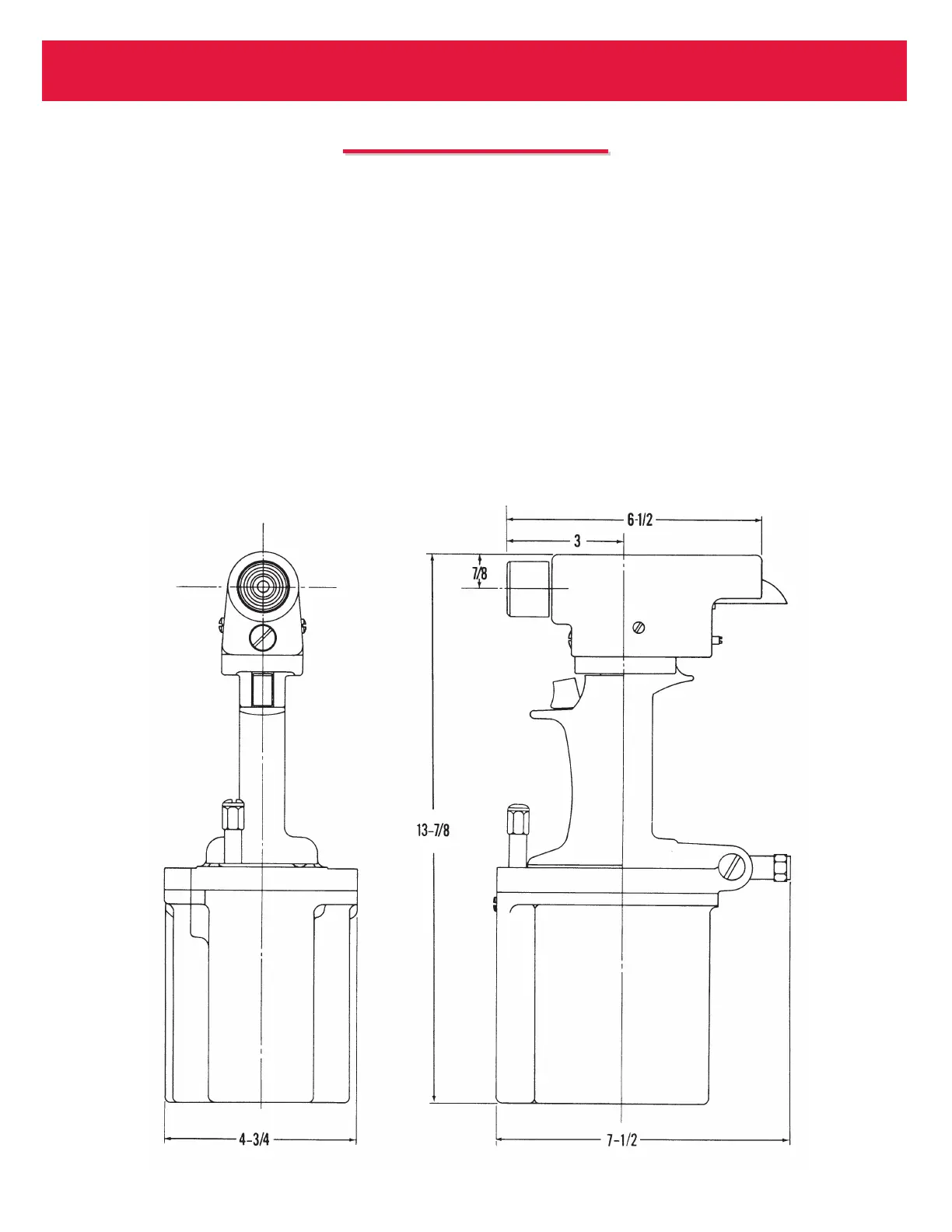

Length (overall) ....................................71/2 inches ...........................................................190 mm
Height (overall) ..................................13-7/8 inches.......................................................... 352 mm
Width (head) ..............................................2 inches ............................................................51 mm
Width (cylinder)....................................4.3/4 inches ..........................................................121 mm
Weight 10-1/2 pounds....................................4.8kg
Stroke ..............................................1-3/16 inches ............................................................30 mm
Air Required ............................................18CFM@ ........................................................009 m3/s
......90-100 psi ..................................................620-689 kPa
Hydraulic Fluid: 4.8kg ATF meeting DEXRON III, DEXRON IV, MERCON, Allison C-4 or equiva-
lent specifications.
