Alde Compact 3020 HE Installation Instructions

17
GB
C.
84 mm
73 mm
R3(4x)
76 mm
87 mm
9 mm
38,5 mm
86 mm
97 mm
NOTICE
If the room temperature on the panel is affected
negatively by any appliance, an external sensor
(Art. no. 3010 346) should be connected to the panel.
B.A.
8. INSTALLATION INSTRUCTIONS – CONTROL PANEL 3020 013
Control panel 3020 013 is intended for the Alde Compact 3020 HE boiler.
The control panel should be located at least one metre above the oor, but not too close to the ceiling. Nor should it be
located on an outer wall or close to items which radiate heat, such as a CD player, refrigerator or lamps, as this may
result in incorrect temperatures. The space behind the panel should be well ventilated. If the room thermostat on the
panel is still affected, an external sensor should be connected to the panel.

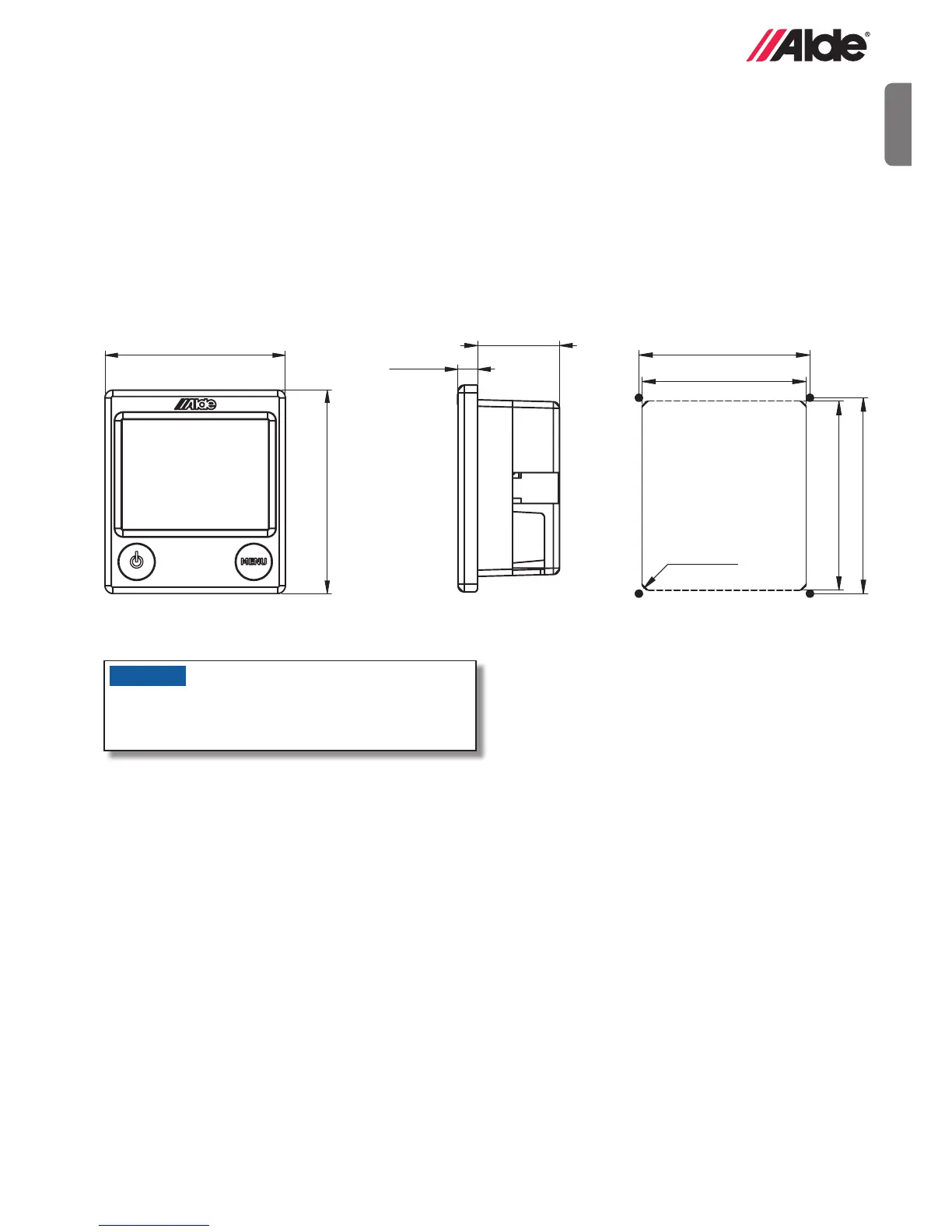

Make a hole for the control panel as shown in Figure C. Screw the control panel securely in place and push the front
cover into position. Secure the cable with clamps to prevent any strain on the terminal strip of the panel.
Make a hole for the panel as shown in gure C. Screw the panel into place and press the front cover onto it. Use clips
to attach the cables to avoid wear on the terminal strip of the panel.
