Alde Compact 3020 HE Installation Instructions

6
• MEASUREMENTS / WEIGHT
Boiler height: 310 mm
Boiler depth: 340 mm
Boiler width: 510 mm
Weight: 14 kg (without uid)
Gas: Propane Butane
Output 1: 3.3 kW 3.8 kW
- Consumption: 245 g/h 275 g/h
Output 2: 5.5 kW 6.4 kW
- Consumption: 405 g/h 460 g/h
Pressure: I
3+
28-30/37 mbar I
3B/P
30 mbar
• VOLUME/PRESSURE/TEMP
Volume of liquid, radiator water: 3.5L
Volume of liquid, domestic hot water: 8.4L
Max pressure radiator water: 0.05 MPa (0.5 bar)
Max pressure domestic hot water: 0.3 MPa (3.0 bar)
System temperature (max): 80 °C.
230–240 V ~
Output element:
(2 or 3 kW)
1 x 1050 W
1 x 2100 W
12 V DC
Current consumption: 1.9 A (max)
Fuse: 3.15 A
4. TECHNICAL DATA TECHNICAL DATA
CAUTION
OBSERVERA
ATTENTION
VOORZICHTIG
When this heating system is in operation;
Always be aware of hot surfaces highlighted in
orange coloure, see Figure A.

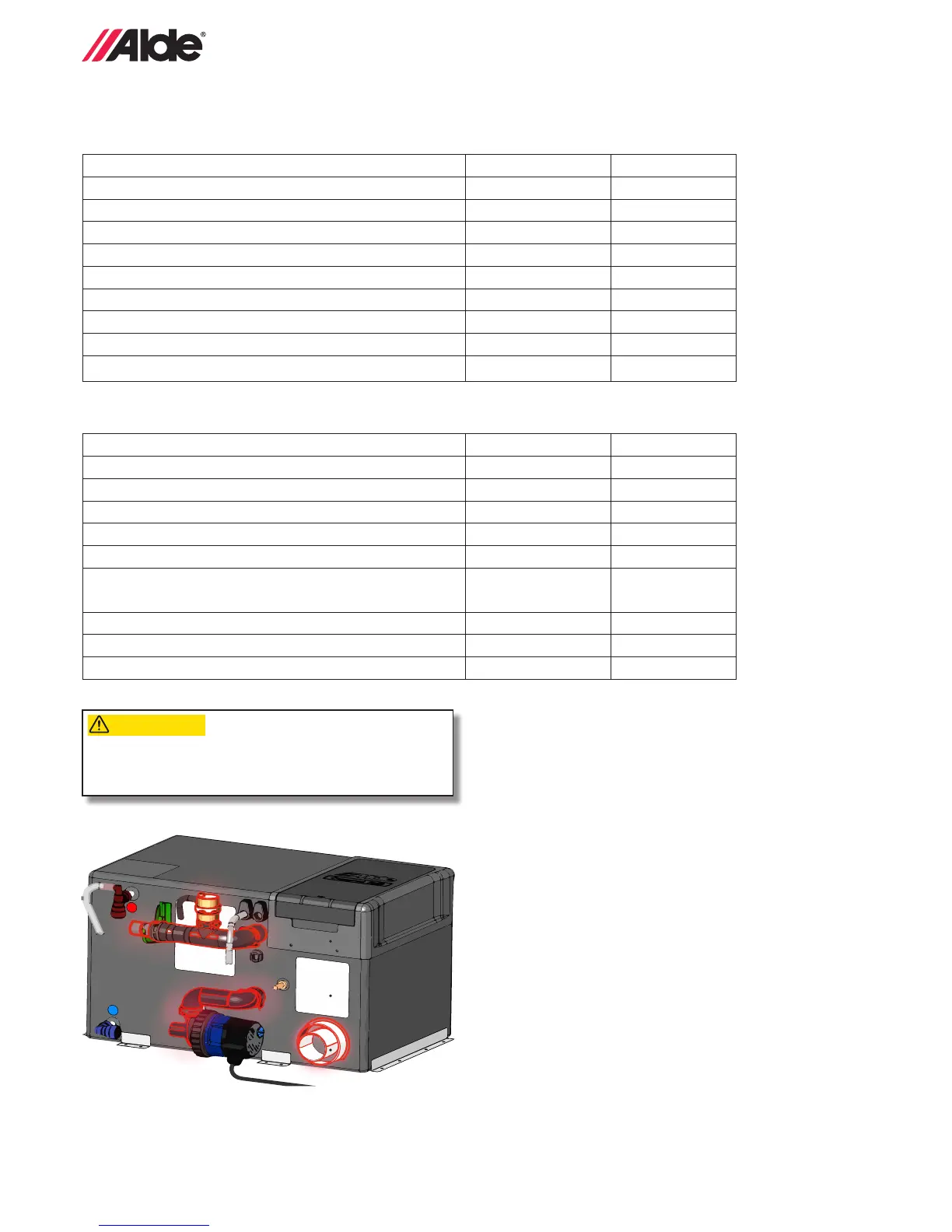

Figure A. Alde Compact 3020 HE boiler

Alde Compact 3020 HE Specifications

General

Brand	Alde
Model	Compact 3020 HE
Category	Boiler
Language	English
