FITTED EQUIPMENT
166

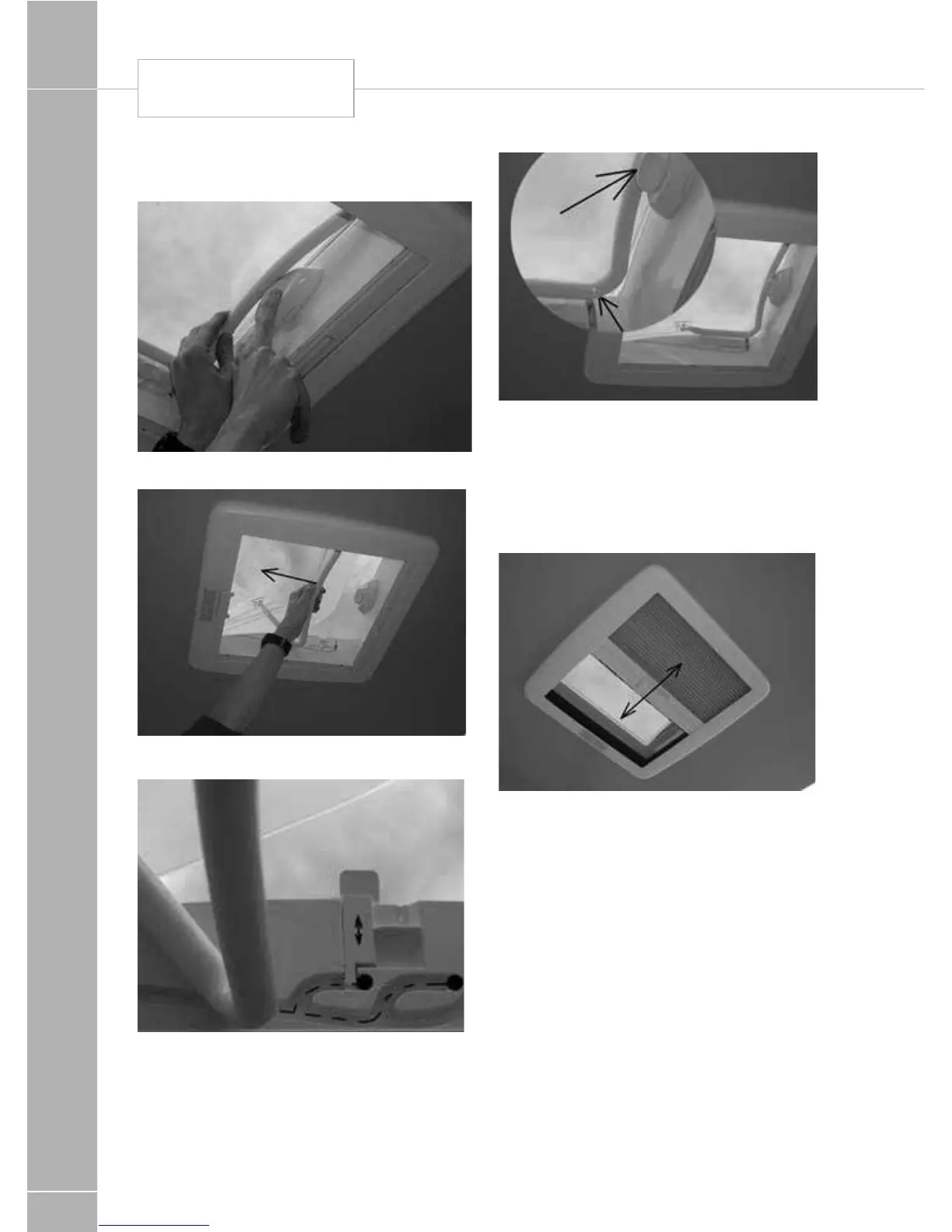

Mini Heki rooflight (when fitted)
To open depress the button (Fig. A).
Pull the bar down and forwards (Fig. B).
By pushing the bar in to the marked rest
positions (Fig. C).
Two extra opening angles apart from the one in
which the dome is fully opened can be chosen.
The intermediate position can be fixed with a
slide marked with the arrows. Care should be
taken to ensure the dome is closed and locked
for transit with the bar located behind the
locking button (Fig. D).
The blind flynet operate together and engage
via the clips in the bar, then slide to gain the
desired blackout or ventilation (Fig. E).
ROOFLIGHTS
