3 Installation
Study the instructions carefully and pay special attention to the warnings!
The direction of rotation of the impeller can be checked by observing the direction of rotation of the motor fan.
- See the indication label on the pump.
Note
In case of shaft seal leakage, the media will drip from the slot in the bottom of the adaptor. In case of shaft seal leakage, Alfa
Laval recommends putting a drip tray underneath the slot to collect the leakage.
Step 7
!
Never start in the wrong direction of rotation with liquid in the pump
Always ensure the adaptor shield and motor fan guard are present
and mounted correctly and allow no access to rotating parts
before installing and starting the pump.

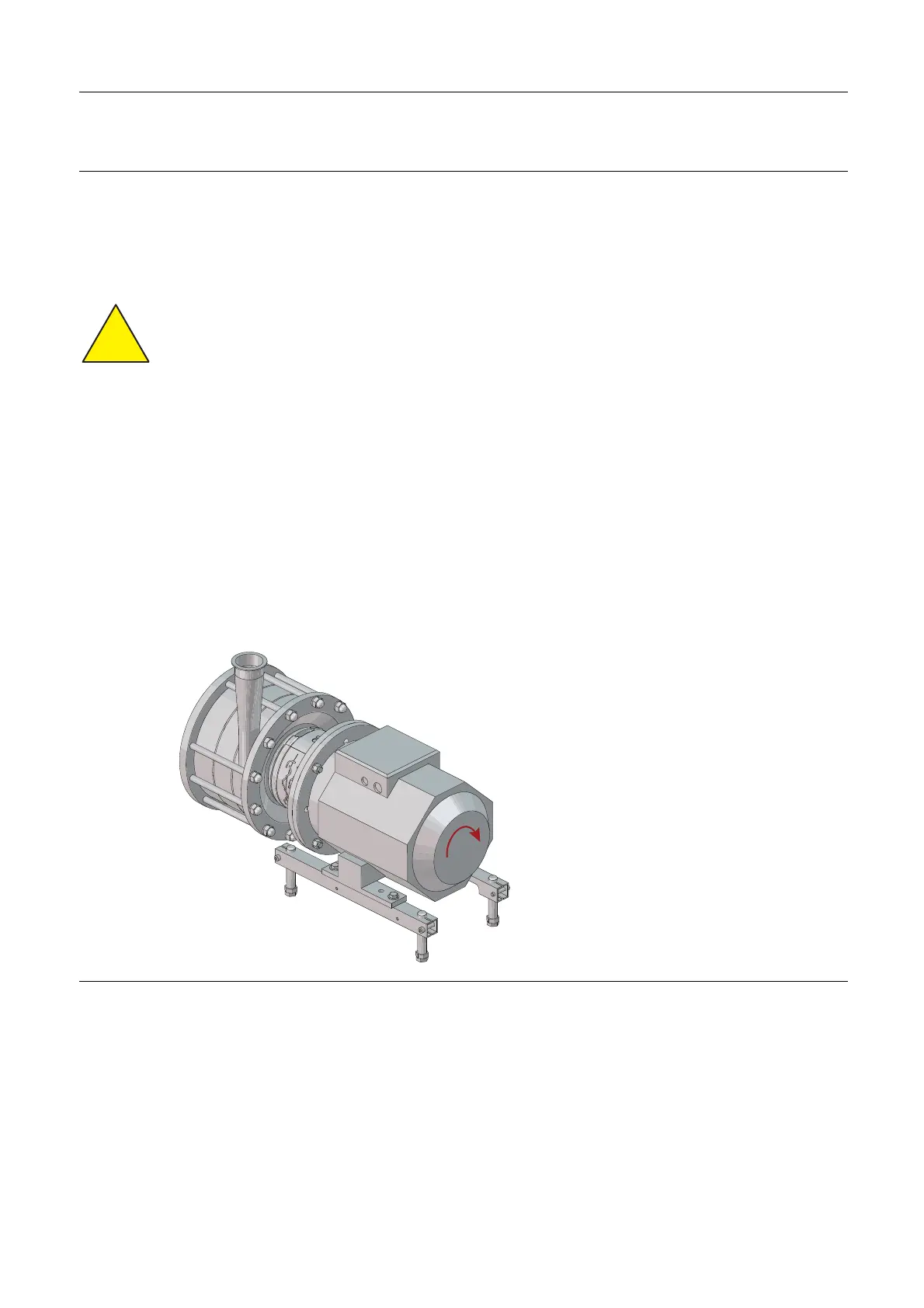

Pre-use check:
1. Connect power supply
2. Start and stop the motor momentarily.
3. Ensure that the direction of ratoation of the motor fan is
clockwise as viewed from the rear end of the motor.
4. Disconnect power supply safely.
* Correct rotation direction! See the indication label!
3003-0100
9
*
15
