Description
Multi-pass
M ulti-pass sectio ns can be created by using turnin g plates wi th 1, 2 or 3 unholed ports. The
m ain purpose is to c hange the flow direc tion of one or both fluids.
For some units, a partiti on plate is required to support the unholed ports in the turning plates. A
transition plate also needs to be added to the pack to prevent media from coming into co ntact
with the part ition plate or pr essure plate.
An example of where multi-pass can be used is in processes that require longer heating periods
if the media requires slower heating.
1. End plate I
2. End plate II
3. Channel plate
4. Transition plate
5. Turning plate

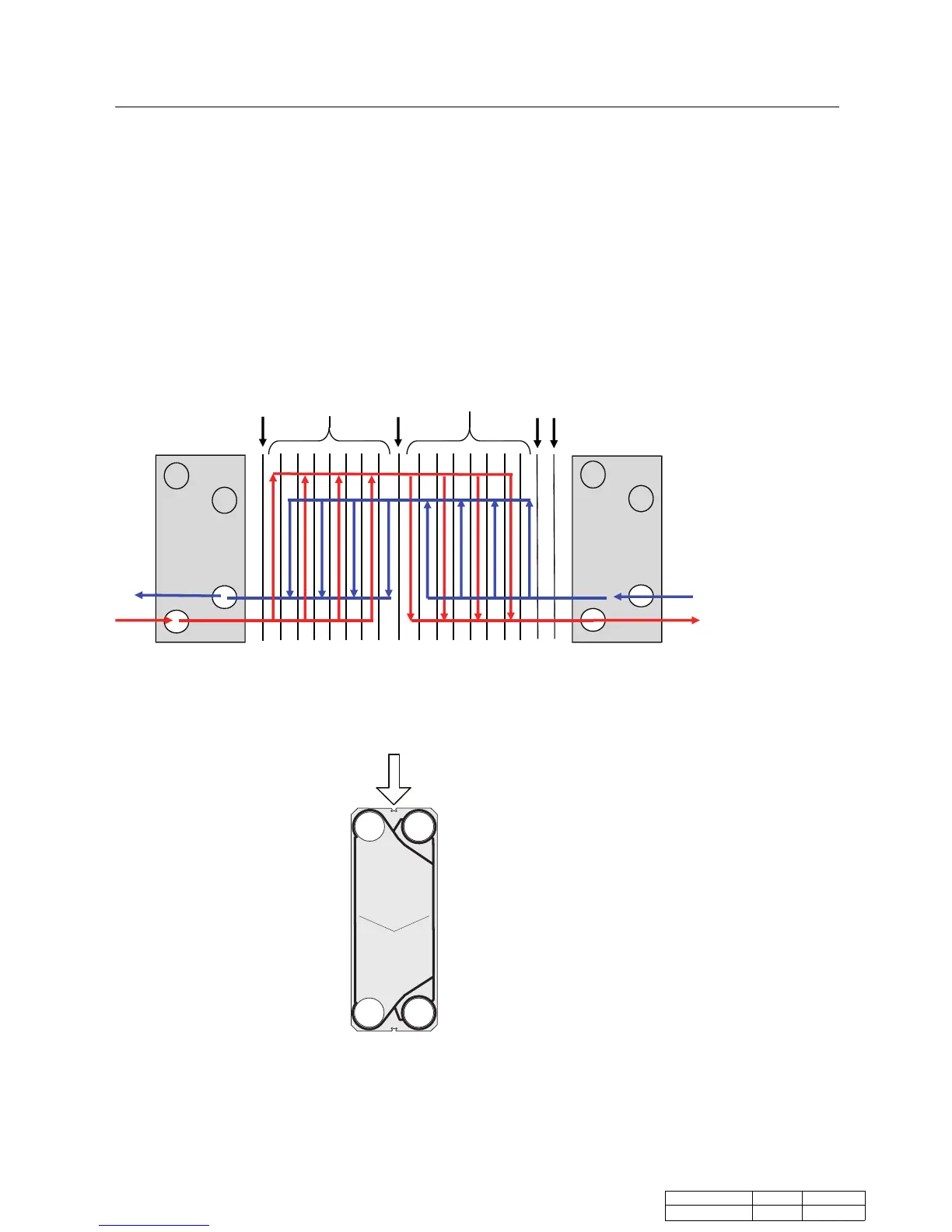

Figure 3. Example of a multi-pass set up
Identification of plate side
The A side of the plate is identified by a stamp with the letter A or the m odel name, in some
cases both, at th e top of the plate (refer to image below)
