7 Installation
7.1 Insulation for medium units
This section is only valid for insulation intended for medium units. See Chapter
Introduction for sizing. On the rear insulation panel of medium sized
insulations, cut out holes for tightening bolts and carrying bar.
On the rear insulation panel of medium/large sized insulations, cut out holes
for tightening bolts and carrying bar.
7.1.1
Installation
WARNING Risk of personal injury.
Wear personal protective equipment when handling the insulation panels.
There are a few different designs of insulation within the medium range. Each step in the instruction
shows variations of the design. Follow the one corresponding to your actual gasketed plate heat
exchanger insulation.
The piping is not shown in the illustrations.
In the design with latches, lock the latches between the panels when it is suitable in the assemble
sequence.
In the design with screws, tighten the screws between the insulation panel parts when suitable in the
assemble sequence.
1

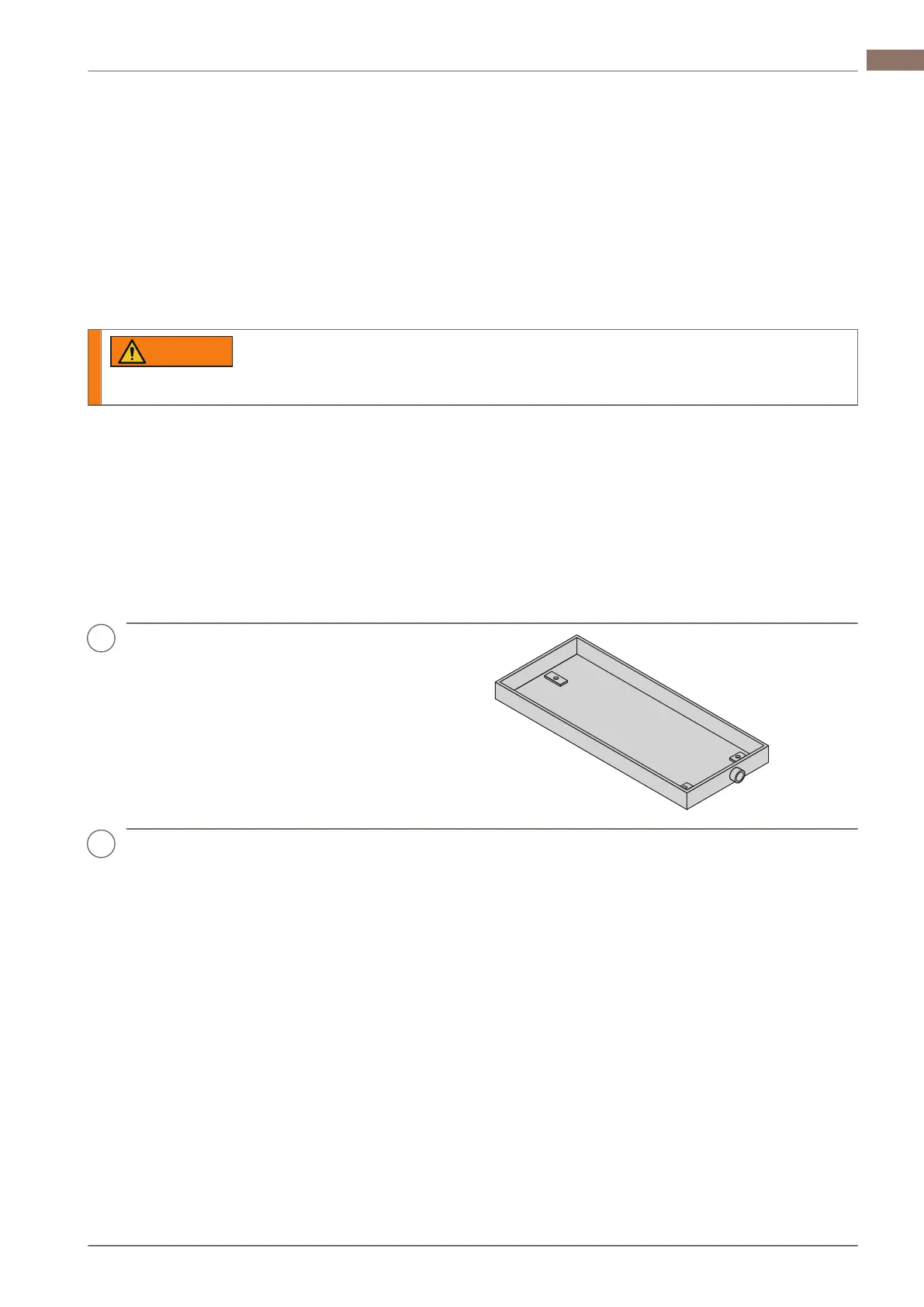

Put the drip tray in place.
2
Install the gasketed plate heat exchanger and
connect all piping according to separate
documentation and publications.
200002797-1-EN-GB 21
EN
