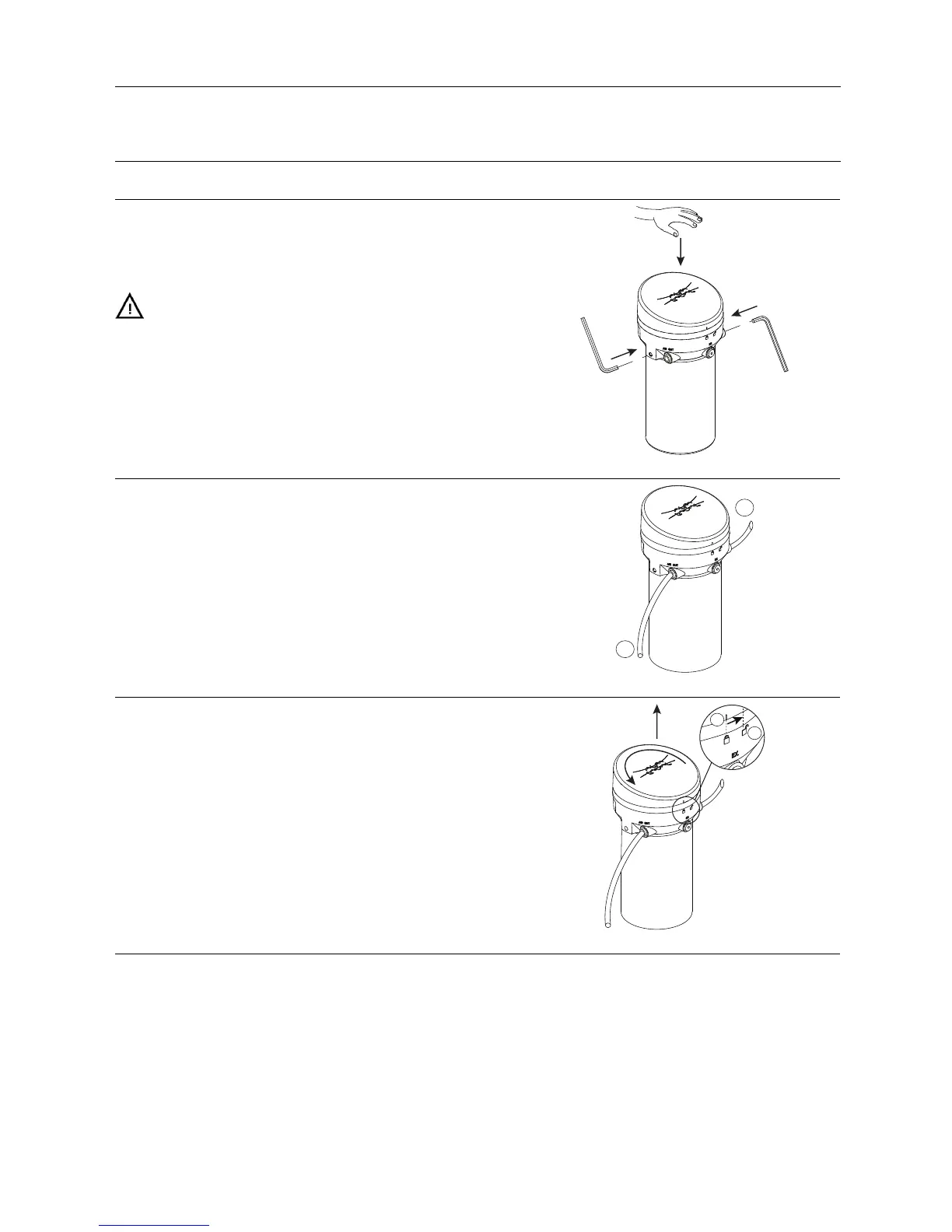

4 Installation
4.3 Installation instructions
Step 1
Place the ThinkTop D30 on top of the actuator.
Ensure that the unit is correctly mounted by pressing down on
top of the ThinkTop D30.
Cross-tighten the two allen screws carefully (1.50 Nm).
When mounting the ThinkTop D30 on a horizontal mounted
actuator make sure that the exhaust port is not pointing upwards.
The exhaust port is marked with "EX.".
2064-0002
Step 2
Connect the
air supply to the air-in port (A).
Connect the air-out port (B) to the actuator.
NOTE!
Option in case of a ¼” air supply hose system.
Connect the air supply hose via an ø6 / ¼” angle adaptor.
The angle adaptor is sold separately:
Article number: 9611-99-5679, ø6 / ¼” angle adaptor.
The angle
adaptor is also available as ø6 / ø6:
Article number: 9611-99-5678, ø6 / ø6 angle adaptor.
A
B
2064-0003
Step 3
Remove the top cover by turning the top cover anti-clockwise.
When the mark on the top cover (C) is aligned with the open
padlock symbol (D), the top cover can be lifted off.
2064-0004
C
D
8
