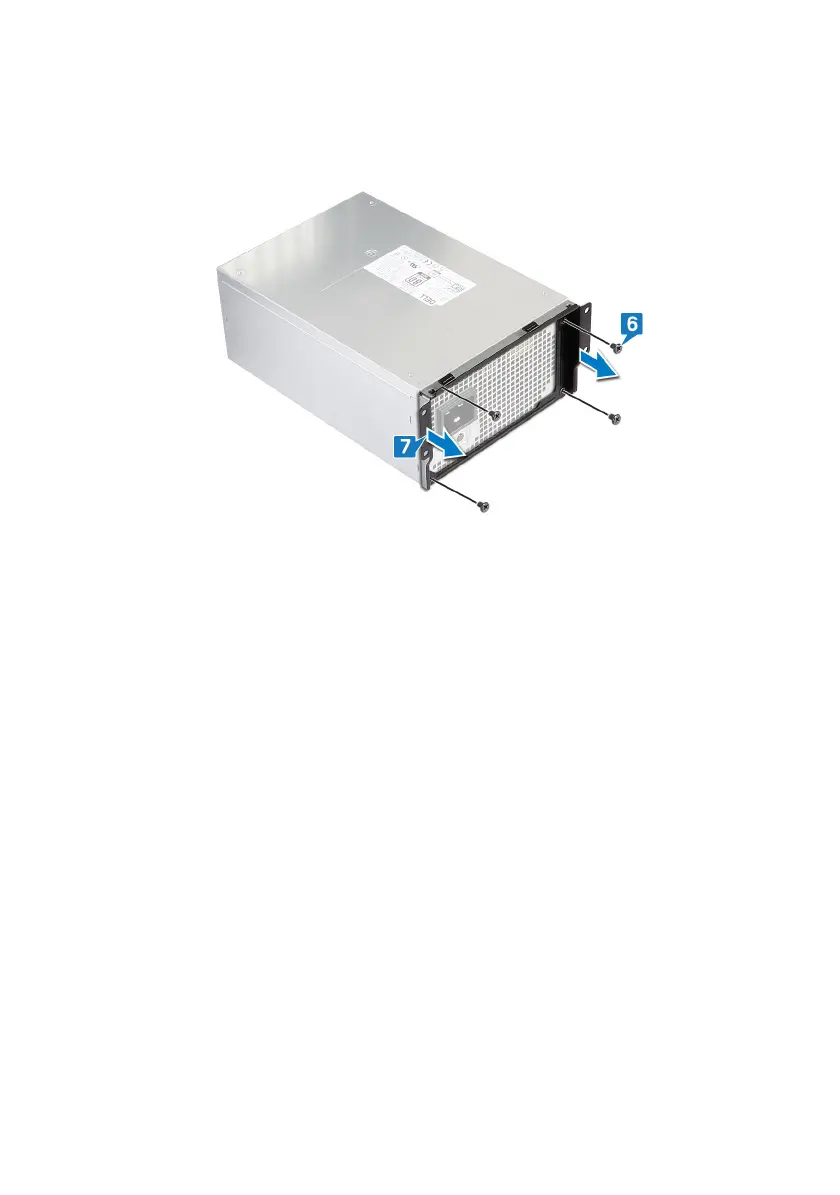

6 Remove the four screws (#6-32x6) that secure the metal bracket to the

power-supply unit.

7 Remove the metal bracket from the power-supply unit.

112
