Alienware Area-51 R6

To Next Page

To Previous Page

Left view

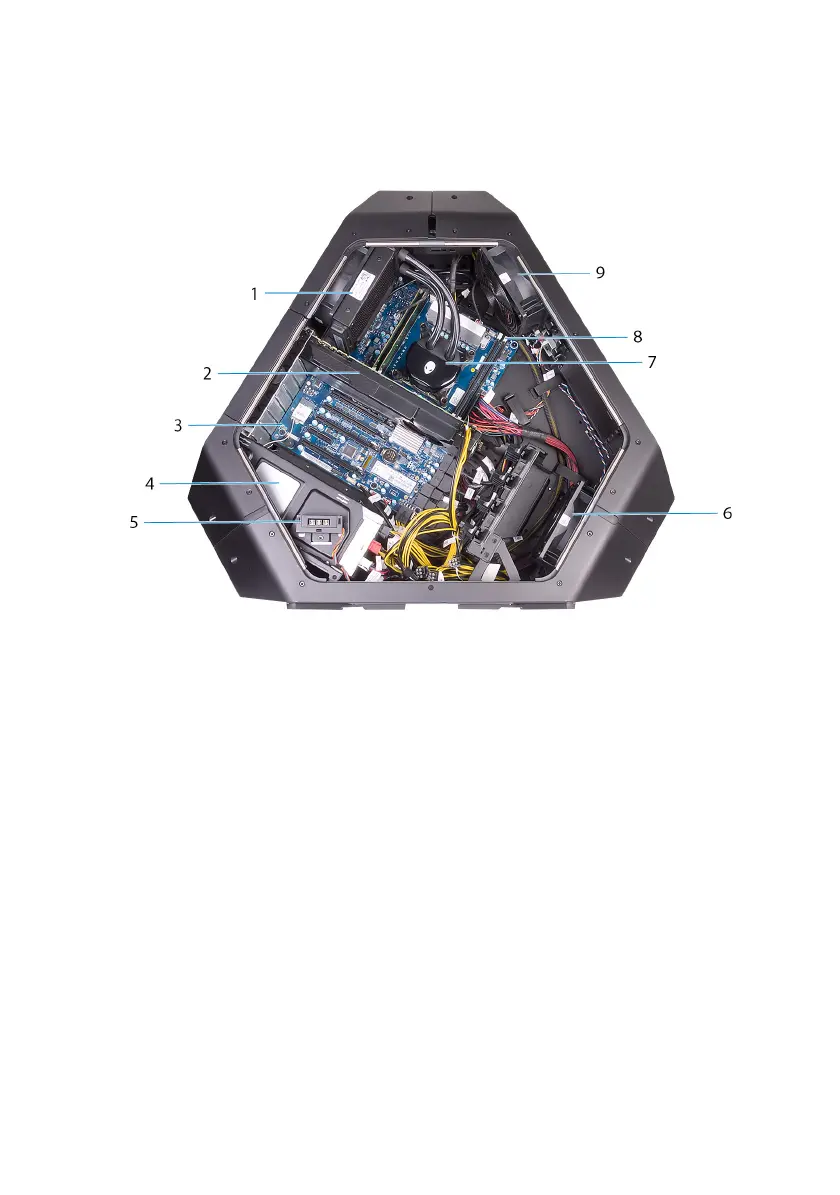

Figure 2. Left view

1 processor liquid-cooling assembly

fan

2 graphics card

3 system board 4 power-supply unit

5 AlienFX side-panel connector 6 PCI fan

7 processor liquid-cooling assembly

pump

8 memory modules

9 top fan
