Alienware Area-51 R6

To Next Page

To Previous Page

2 Disconnect all the cables connected to the system-board assembly.

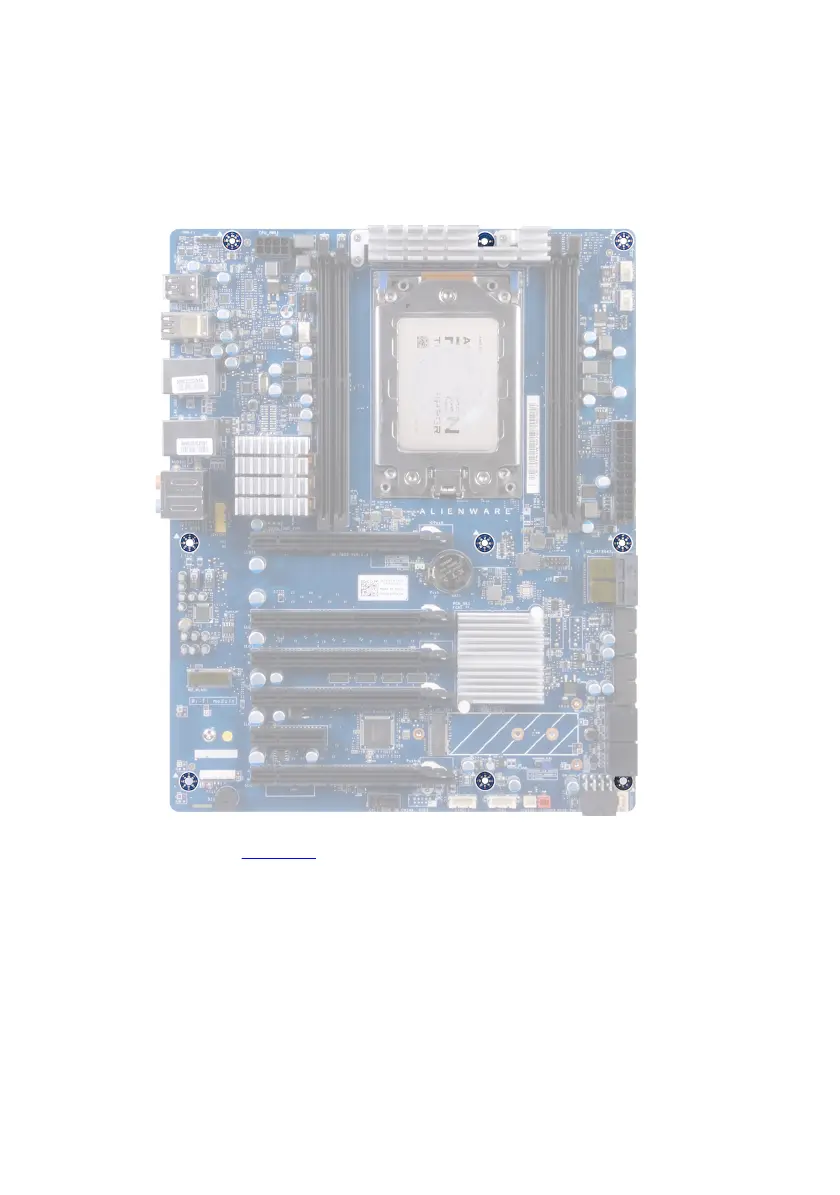

3 Remove the nine screws (#6-32x6) that secure the system-board assembly to

the chassis.

4 Lift the system-board assembly out of the chassis.

Remove the processor.

116
