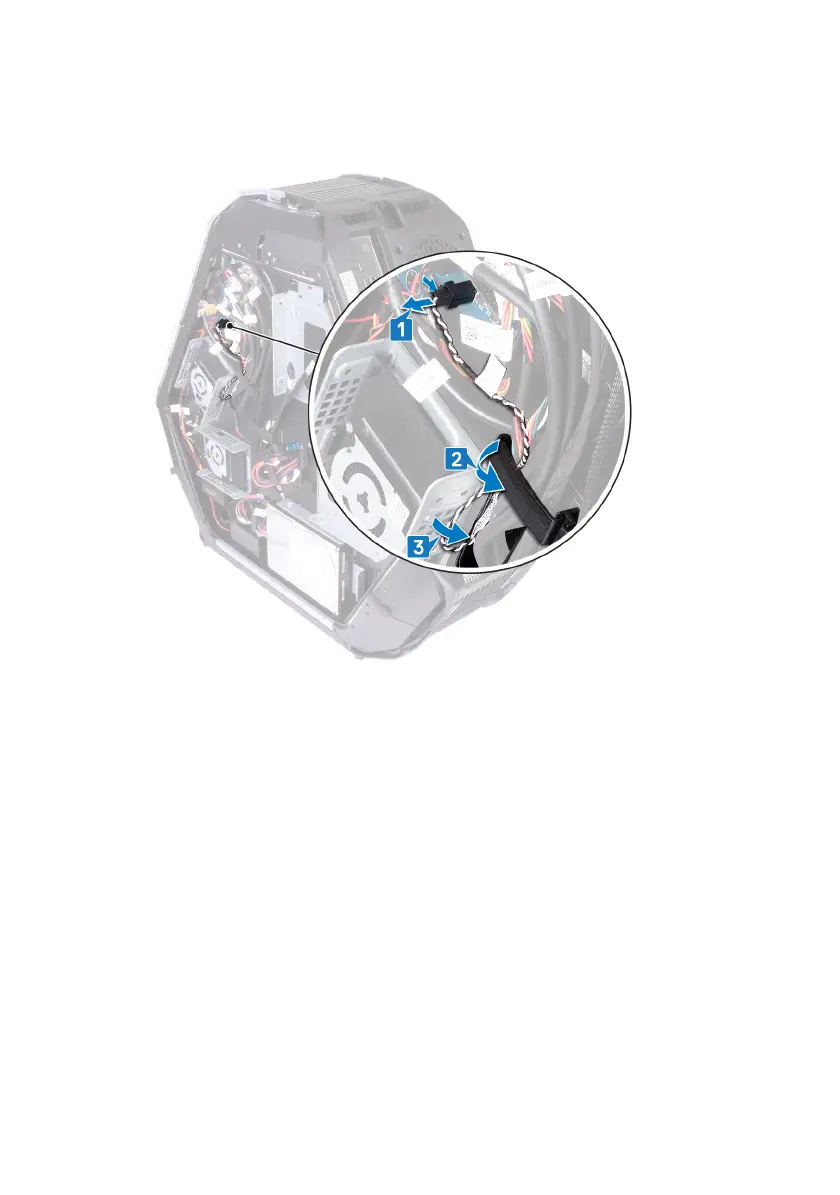

3 Remove the rear I/O accessibility lighting cable through the routing guides

on the chassis.

4 Remove the rear I/O accessibility lighting cable through the slot on the

chassis.
