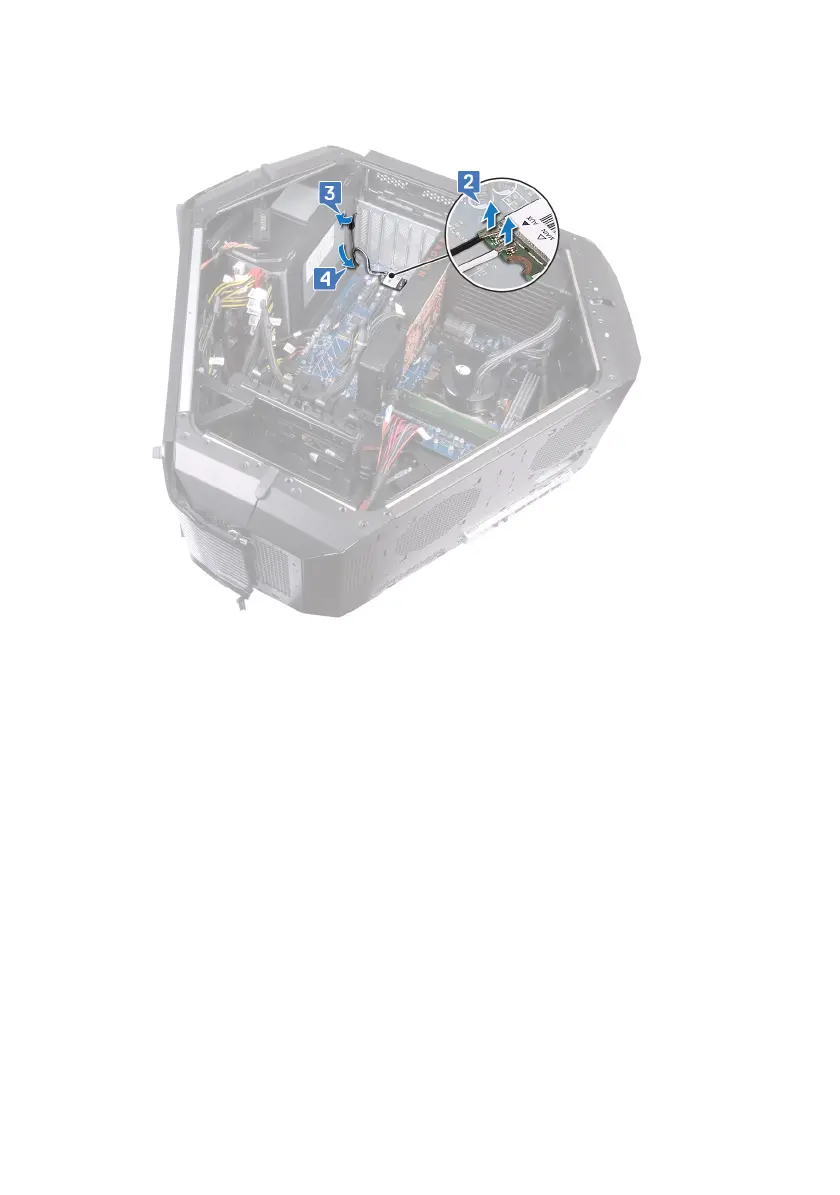

4 Slide the antenna cables through the slot on the chassis.

5 Turn the chassis over.

6 Remove the antenna cables from the routing guide on the chassis.

151
