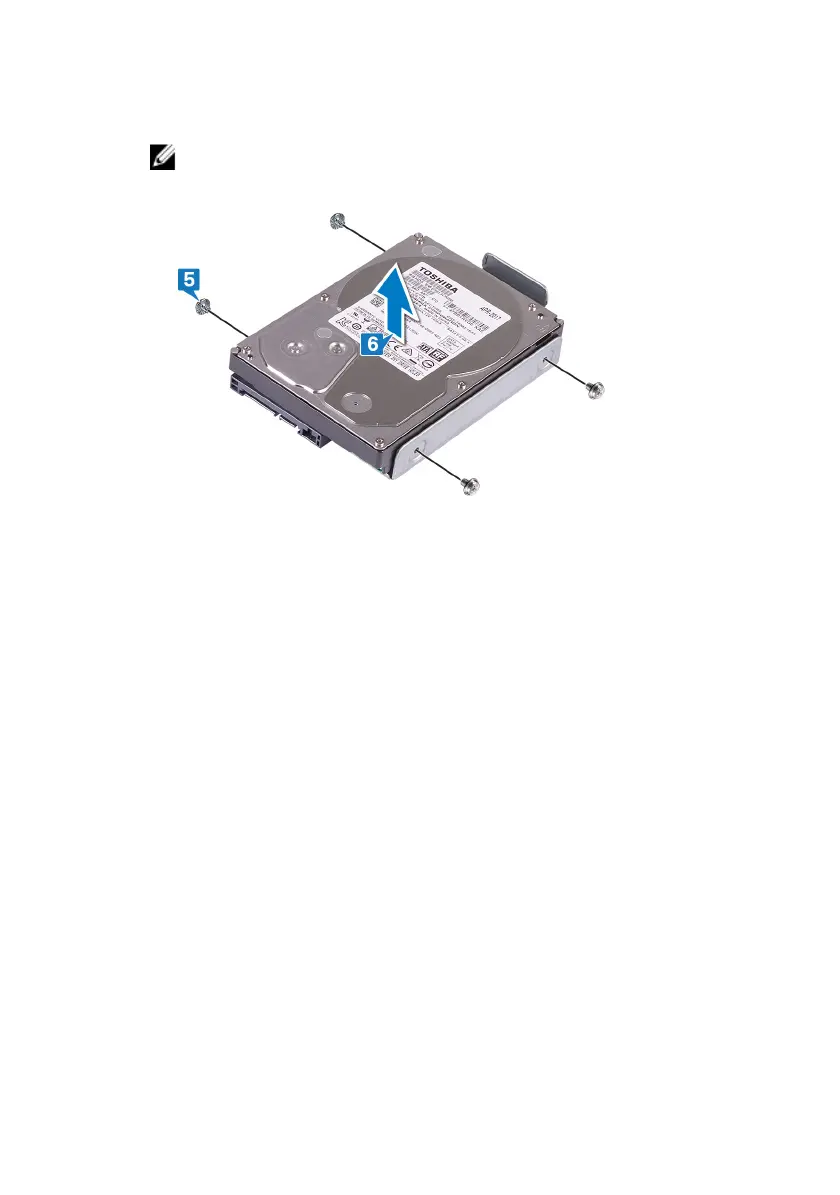

6 Slide and remove the hard drive from the hard-drive bracket.

NOTE: Repeat step 2 to step 6 to remove any other hard drives

(HDD2 and HDD3) installed in your computer.
