Alienware Area-51 R6 - Page 54

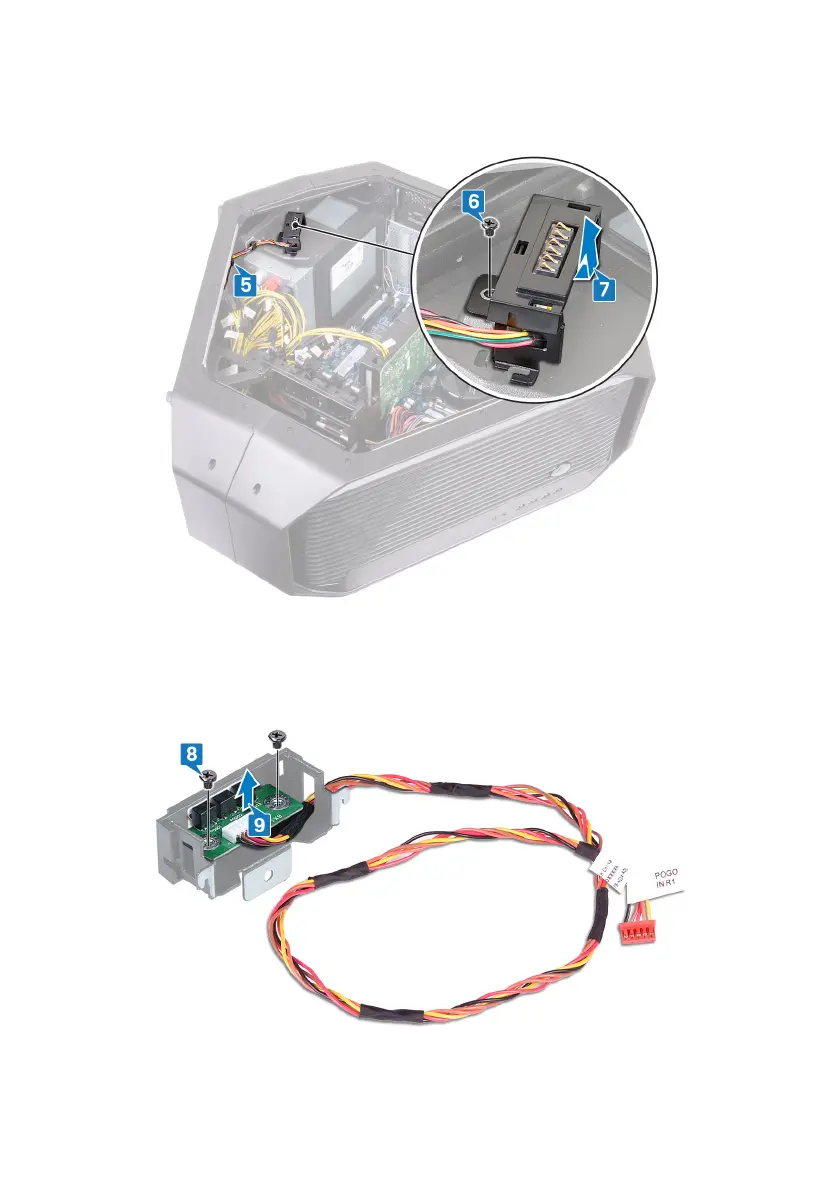

7 Remove the left AlienFX side-panel connector assembly from the chassis.
8 Remove the two screws (#6-32x6) that secure the AlienFX side-panel
connector to the bracket.
9 Remove the cable routing through the slot on the bracket and lift the left
AlienFX side-panel connector o the bracket.
54
