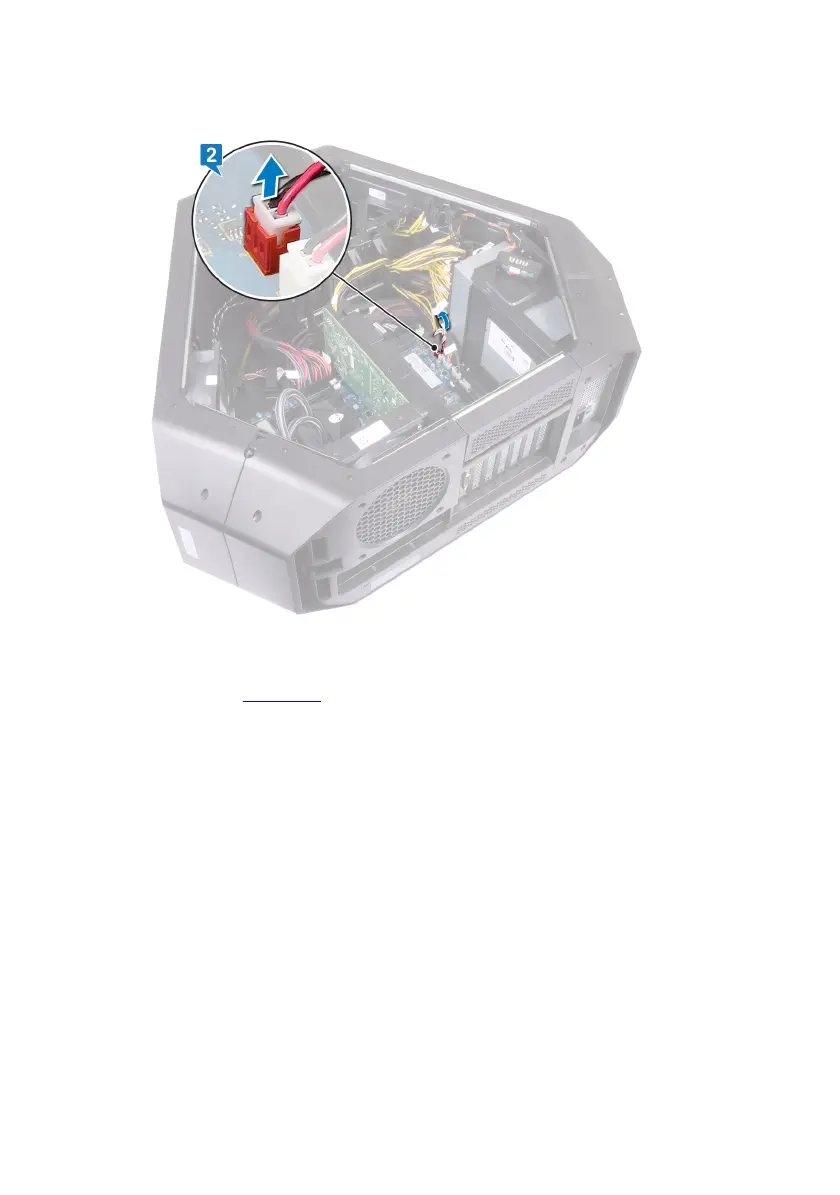

2 Disconnect the drive-bay heat-sensor cable from the system board.

3 Turn the chassis over.

4 Remove the cable through the slot on the chassis. Locate the drive-bay heat-

sensor. See “right view”.
