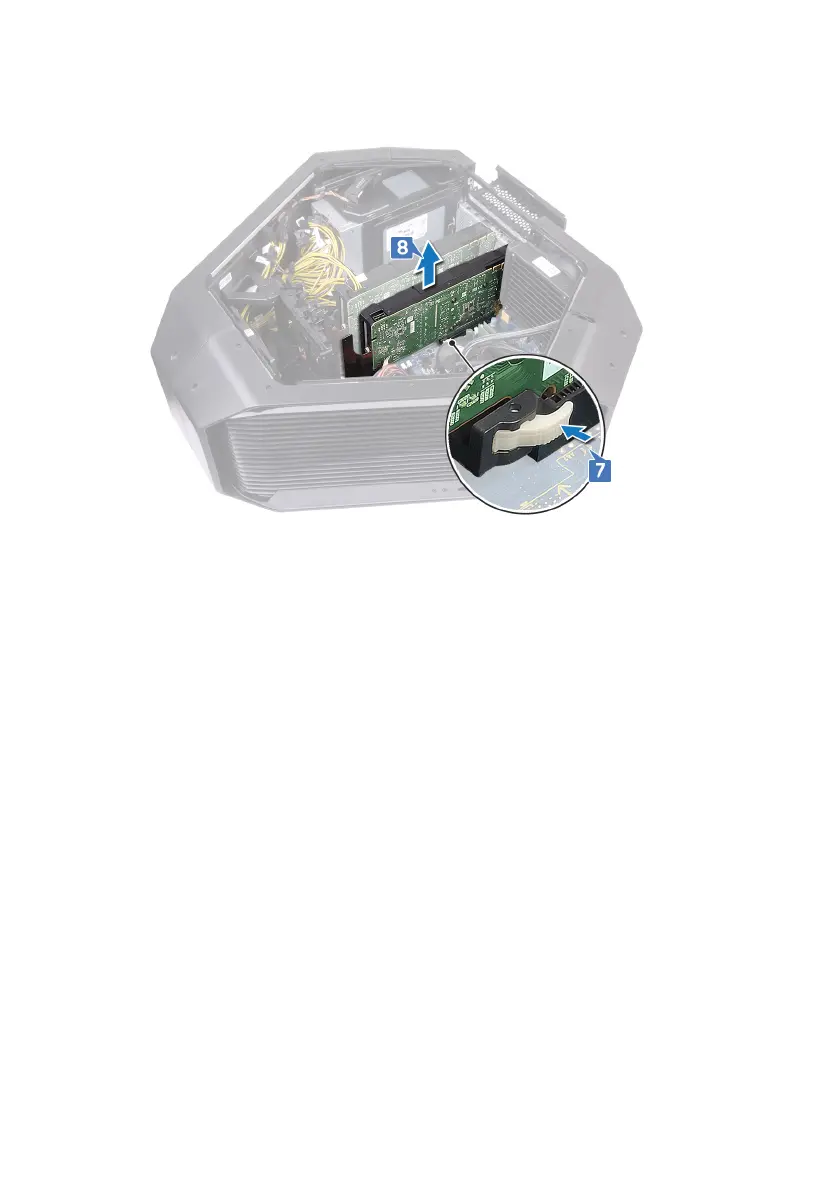

8 Lift the graphics card from the graphics-card slot.

9 Repeat steps 2 to 7 to remove graphics card on the PCI-Express card

connector (SLOT4) and PCI-Express x16 card connector (SLOT7).
