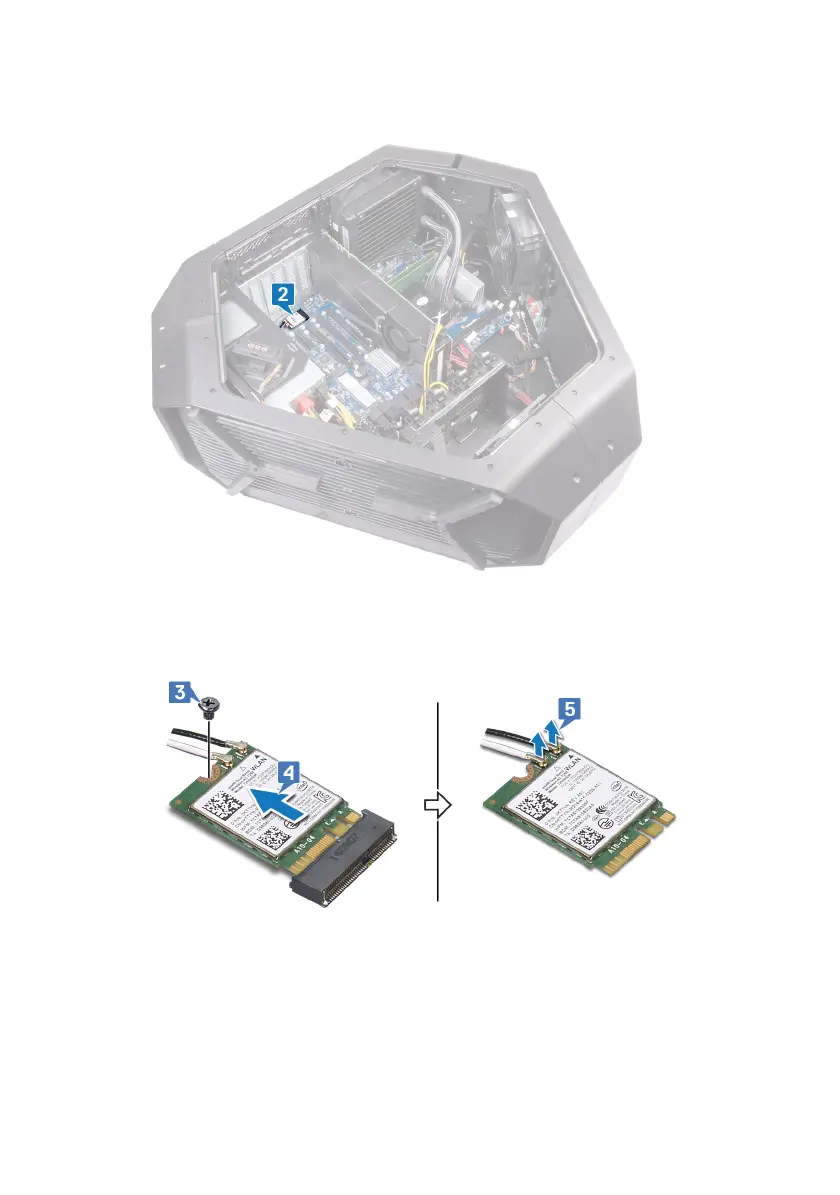

2 Locate the wireless card on the system board.
3 Remove the screw (M2x3) that secures the wireless card to the chassis.
4 Slide and remove the wireless card from the wireless-card slot.
5 Disconnect the antenna cables from the wireless card.
76
